20746 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) RECOIL ASSEMBLY (ENGINE NO. 47PH7) Parts Diagram

Walk-Behind Mower

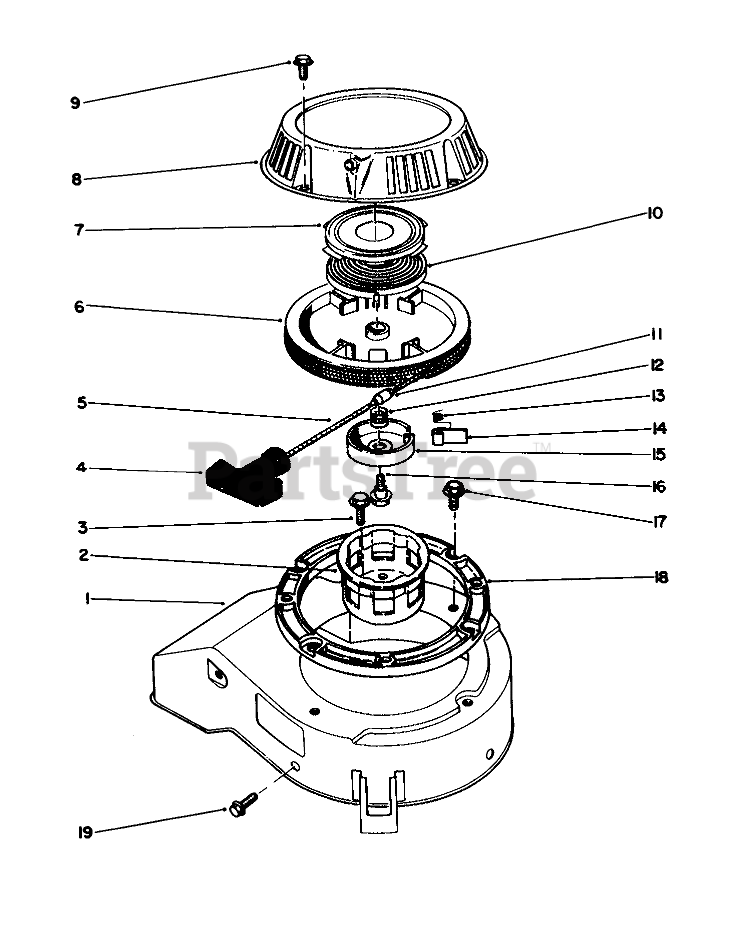

RECOIL ASSEMBLY (ENGINE NO. 47PH7) Parts Diagram

  • Title

1

Toro 81-2070

COVER

$

$

Not available

2

Toro 81-2170

PULLEY-CUP, STARTER

$94.99

$

Usually ships in 3-6 days

0

3

Toro 81-1300

BOLT

$9.99

$

Usually ships in 3-6 days

0

4

Toro 81-1630

HANDLE-RECOIL

$21.99

$

Usually ships in 3-6 days

0

5

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

6

Toro 81-1210

REEL

$54.99

$

In Stock, only 2 left!

0

7

Retainer-Recoil Spring

$

$

Not available

8

Toro 81-2090

CASE

$

$

Not available

9

Toro 81-1281

Bolt (10 mm Lg.)

$

$

Currently unavailable

10

Spring-Recoil

$

$

Not available

11

Toro 81-3980

STOP

$7.49

$

In Stock, only 1 left!

0

12

Toro 81-1240

SPRING

$

$

Not available

13

Toro 81-1220

SPRING

$

$

Not available

14

Toro 81-1230

DOG

$

$

Not available

15

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

16

Toro 81-1260

BOLT

$

$

Not available

17

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

18

Toro 66-7120

RECOIL ADAPTOR

$

$

Not available

19

Toro 81-1170

BOLT

$

$

Not available

Toro 81-2040

Starter Assembly (Incl. Ref. #4-8,10-16)

$400.99

$

Usually ships in 3-6 days

0

Toro 81-2300

Spring & Retainer (Incl. Ref. #7 & 10)

$43.99

$

Usually ships in 3-6 days

0
