20745 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

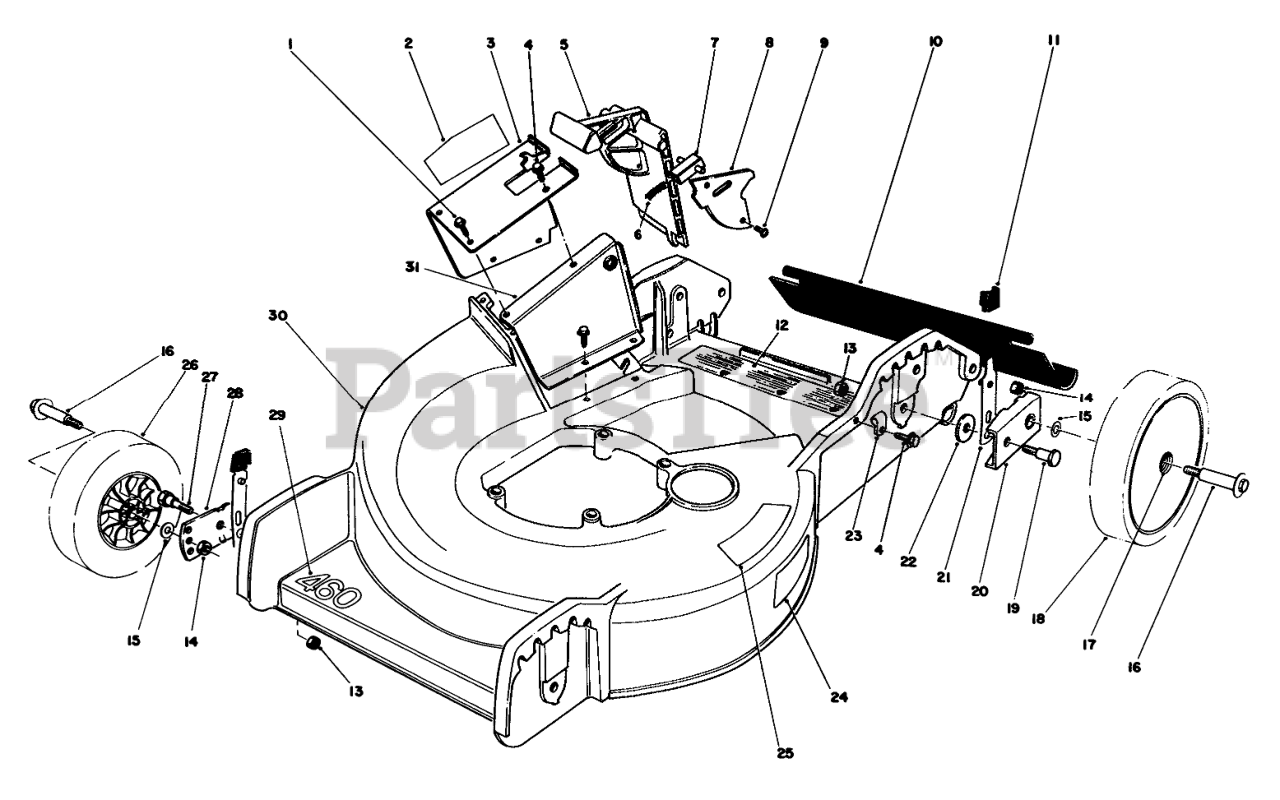

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

2

Toro 46-8340

OBS DANGER DECAL FR/E/GER

$

$

Not available

3

Toro 11-8409

Tunnel-Outer (Incl. Ref. #2)
(Superseded to 13-2149)

$

$

Not available

4

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

5

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

6

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

7

Toro 47-5550

Door Latch
(Superseded to 47-5551)

$

$

Not available

8

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$14.99

$

Usually ships in 3-6 days

0

9

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

10

Toro 33-2380

SHIELD - TRAILING

$69.99

$

Usually ships in 3-6 days

0

11

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

12

Toro 49-8380

DECAL-DANGER

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

16

Toro 274230

Bolt-Wheel

$

$

Currently unavailable

17

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

18

Toro 11-6349

Wheel & Tire Assembly (Incl. Ref. #17)

$

$

Not available

19

Toro 44-5271

PIVOT SCREW

$9.49

$

In Stock, only 1 left!

0

20

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

21

Toro 25-8000

SPRING ARM ASM

$

$

Not available

22

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

23

Toro 2412-83

CLAMP-CABLE

$

$

Not available

24

Toro 46-9330

Decal-Place Foot Here

$

$

Not available

25

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

26

Toro 46-1113

Wheel & Tire Assembly (Incl. Ref. #17)

$

$

Not available

27

Toro 25-3440

PIVOT SCREW

$

$

Not available

28

Toro 33-0400

PIVOT ARM ASSY

$38.99

$

Usually ships in 3-6 days

0

29

Toro 46-8330

Decal-460

$

$

Not available

30

Toro 11-4059

Housing

$

$

Not available

31

Toro 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)

$

$

Not available
