20745 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

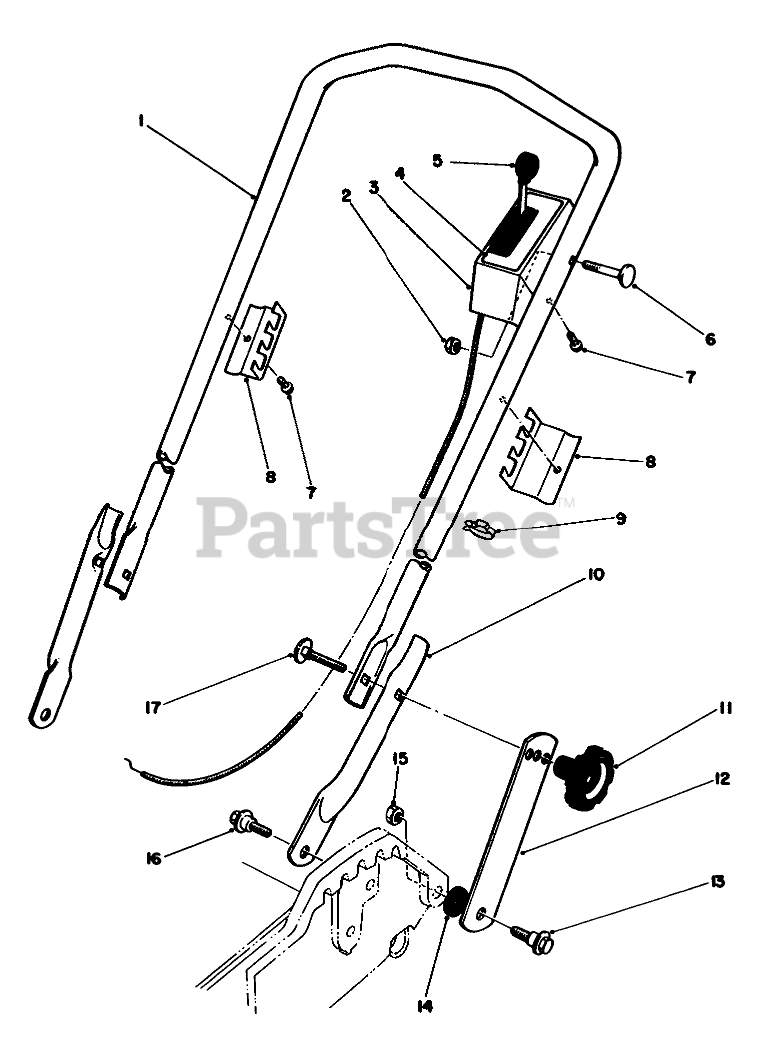

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-5439

UPPER HANDLE/DECAL

$184.99

$

Usually ships in 3-6 days

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 11-8419

Cover-Control (Incl. Ref. #4)

$

$

Not available

4

Toro 51-0530

Decal-Control Cover

$

$

Not available

5

Toro 49-4183

THROTTLE CONT-SERVICE

$77.99

$

Usually ships in 3-6 days

0

6

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 46-9920

Bag Support

$

$

Not available

9

Toro 218-466

CLIP

$

$

Not available

10

Toro 33-0520

Hand-Lower

$

$

Not available

11

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

12

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

13

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

14

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

16

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

17

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0
