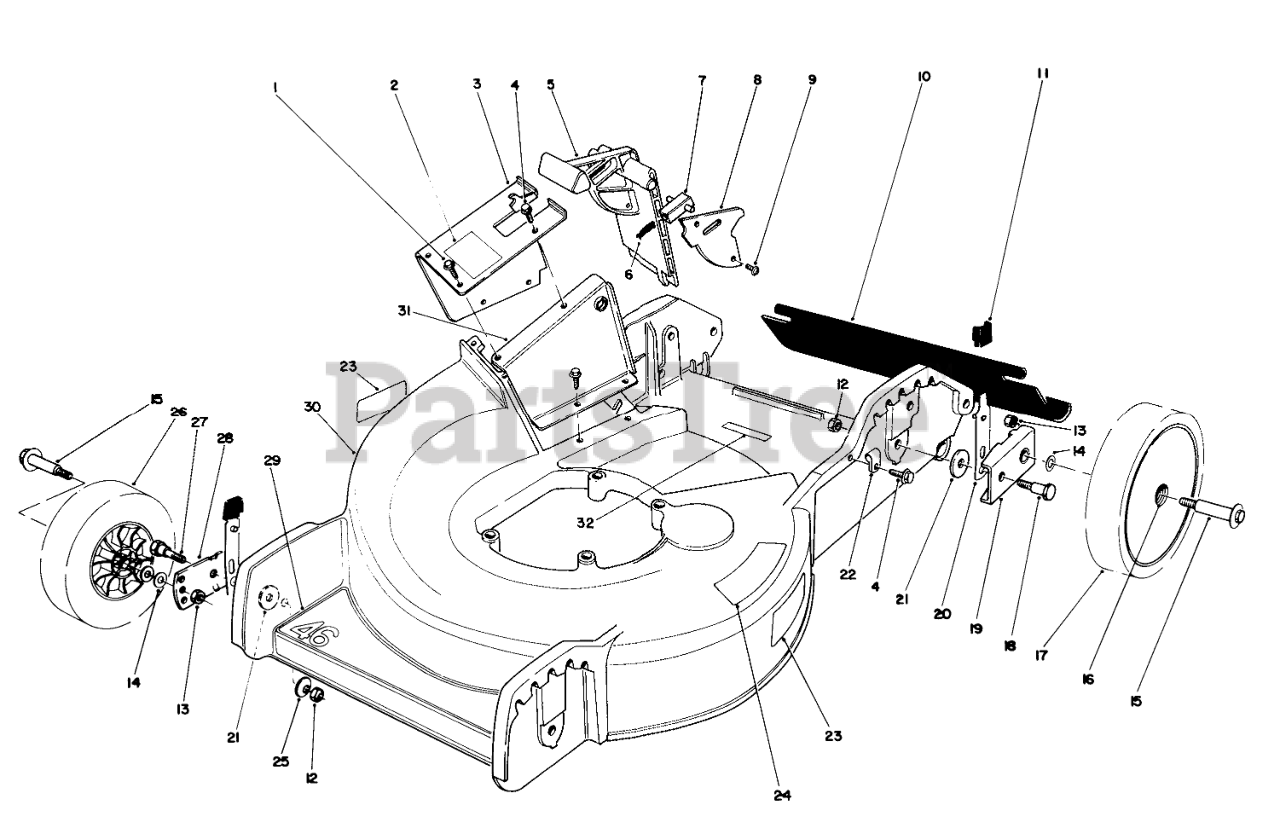

20745 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

2

Toro 62-4060

DECAL - DANGER

$

$

Not available

3

Toro 11-8409

Tunnel-Outer (Incl. Ref. #2)
(Superseded to 13-2149)

$

$

Not available

4

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

5

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

6

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

7

Toro 47-5550

Door Latch
(Superseded to 47-5551)

$

$

Not available

8

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$14.99

$

Usually ships in 3-6 days

0

9

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

10

Toro 33-2380

SHIELD - TRAILING

$69.99

$

Usually ships in 3-6 days

0

11

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

14

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

15

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

16

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

17

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #16)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

18

Toro 44-5271

PIVOT SCREW

$9.49

$

In Stock, only 1 left!

0

19

Toro 47-2941

PIVOT ARM ASM

$

$

Not available

20

Toro 25-8000

SPRING ARM ASM

$

$

Not available

21

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

22

Toro 2412-83

CLAMP-CABLE

$

$

Not available

23

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

24

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

25

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

26

Toro 46-1113

Wheel & Tire Assembly (Inc. Ref. #16)

$

$

Not available

27

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

28

Toro 33-0400

PIVOT ARM ASSY

$38.99

$

Usually ships in 3-6 days

0

29

Toro 62-3200

DECAL - DECK

$

$

Not available

30

Toro 12-1089

Housing(Incl. Ref. #23)

$1078.99

$

Usually ships in 3-6 days

0

31

Toro 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)

$

$

Not available

32

Toro 40-2850

Decal

$

$

Not available
