20745 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) CARBURETOR ASSEMBLY Parts Diagram

Walk-Behind Mower

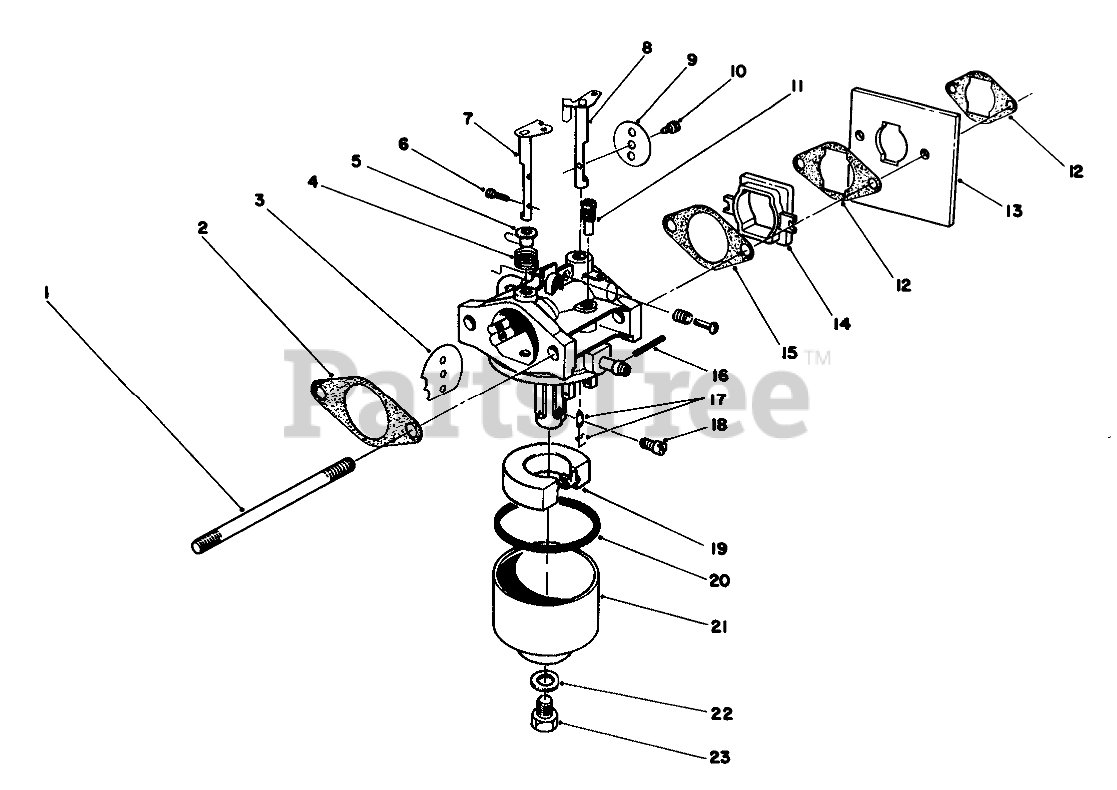

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 81-2240

CARB STUD BOLT

$

$

Not available

2

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

3

Toro 81-0240

PLATE

$

$

Not available

4

Toro 81-0230

SPRING

$

$

Not available

5

Toro 81-0220

BUSHING

$

$

Not available

6

Toro 81-2160

SCREW

$4.99

$

Usually ships in 3-6 days

0

7

Toro 81-1950

SHAFT-CHOKE

$

$

Not available

8

Toro 81-0250

SHAFT

$116.99

$

Usually ships in 3-6 days

0

9

Toro 81-0260

PLATE

$29.99

$

Usually ships in 3-6 days

0

10

Toro 81-0270

Screw-Throttle
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

11

Toro 81-1030

PILOT JET

$33.99

$

Usually ships in 3-6 days

0

12

Toro 81-2320

GASKET

$7.99

$

In Stock, only 1 left!

0

13

Toro 81-2330

SHIELD

$

$

Not available

14

Toro 81-2190

INSULATOR

$19.99

$

Usually ships in 3-6 days

0

15

Toro 81-0780

GASKET-CARB

$6.99

$

In Stock, only 2 left!

0

16

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

17

Toro 81-1600

NEEDLE VALVE ASM

$68.99

$

Usually ships in 3-6 days

0

18

Toro 81-4580

Piston (58 mm)

$

$

Not available

19

Toro 81-0970

FLOAT

$60.99

$

Usually ships in 3-6 days

0

20

Toro 81-1010

GASKET

$19.99

$

In Stock, only 1 left!

0

21

Toro 81-1610

Bowl-Float
(Superseded to 81-5660)

$71.99

$

Usually ships in 3-6 days

0

22

Toro 81-1020

GASKET

$

$

Not available

23

Toro 81-1000

Bolt
(Superseded to 81-5670)

$14.99

$

Usually ships in 3-6 days

0

Toro 81-1960

Carburetor Kit (Incl. Ref. #2, 15, 17, 20 & 22)

Note: Not illustrated

$

$

Not available

Toro 81-1930

Carburetor Assy. Complete
(Superseded to 81-4900)

Note: Not illustrated

$

$

Not available
