20745 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) RECOIL ASSEMBLY Parts Diagram

Walk-Behind Mower

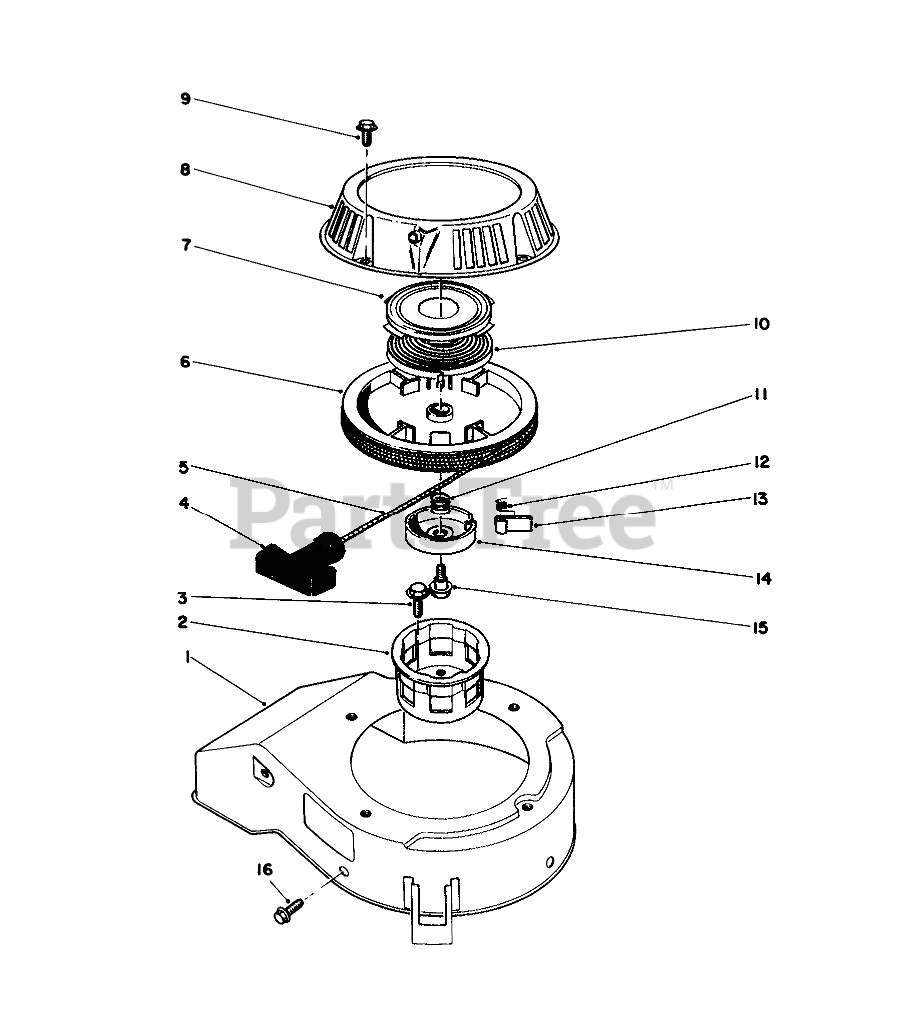

RECOIL ASSEMBLY Parts Diagram

  • Title
1

Toro 81-2070

COVER

$

$

Not available

2

Toro 81-1290

CUP - STARTER

$25.99

$

Usually ships in 3-6 days

0

3

$9.99

$

Usually ships in 3-6 days

0

4

Toro 81-1630

HANDLE-RECOIL

$21.99

$

Usually ships in 3-6 days

0

5

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

6

$54.99

$

In Stock, only 2 left!

0

7

Toro 81-1640

Retainer-Recoil Spring
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

8

$

$

Not available

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

10

Toro 81-1200

Spring-Recoil
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

11

Toro 81-1240

SPRING

$

$

Not available

12

Toro 81-1220

SPRING

$

$

Not available

13

$

$

Not available

14

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

15

$

$

Not available

16

$

$

Not available

Toro 81-2040

Starter Assembly (Incl. Ref. #4-15)

Note: Not illustrated

$400.99

$

Usually ships in 3-6 days

0

Toro 81-2300

Spring & Retainer (Incl. Ref. #7 & 10)

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0
