20742 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

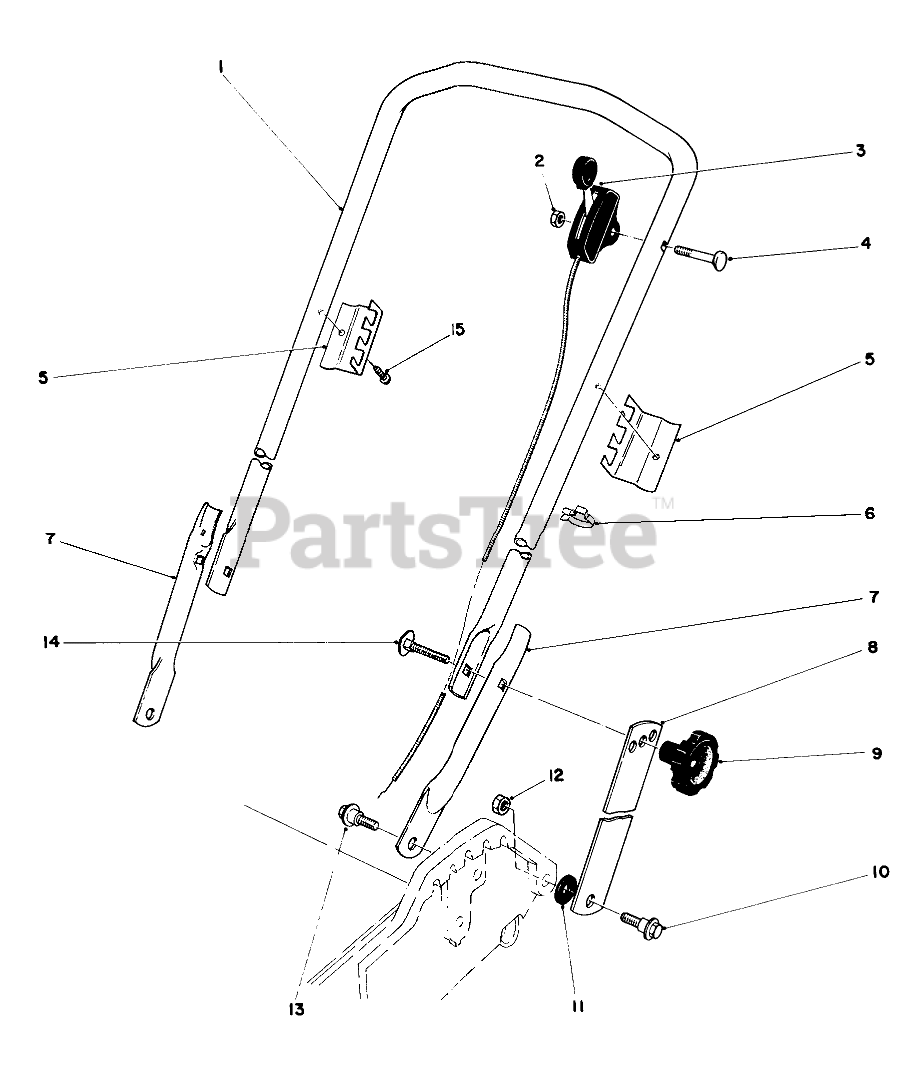

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-9930

Upper Handle (Incl. #3)
(Superseded to 11-5439)

$184.99

$

Usually ships in 3-6 days

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 46-6000

SERVICE THROTTLE CONTRO

$50.99

$

Usually ships in 3-6 days

0

4

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0

5

Toro 46-9920

Bag Support

$

$

Not available

6

Toro 218-465

BOWDEN CLIP

$

$

Not available

7

Toro 33-0520

Hand-Lower

$

$

Not available

8

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

9

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

10

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

11

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

12

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

13

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

14

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 7

0

15

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
