20742 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) ENGINE BRIGGS & STRATTON MODEL 92908-5205-01 Parts Diagram

Walk-Behind Mower

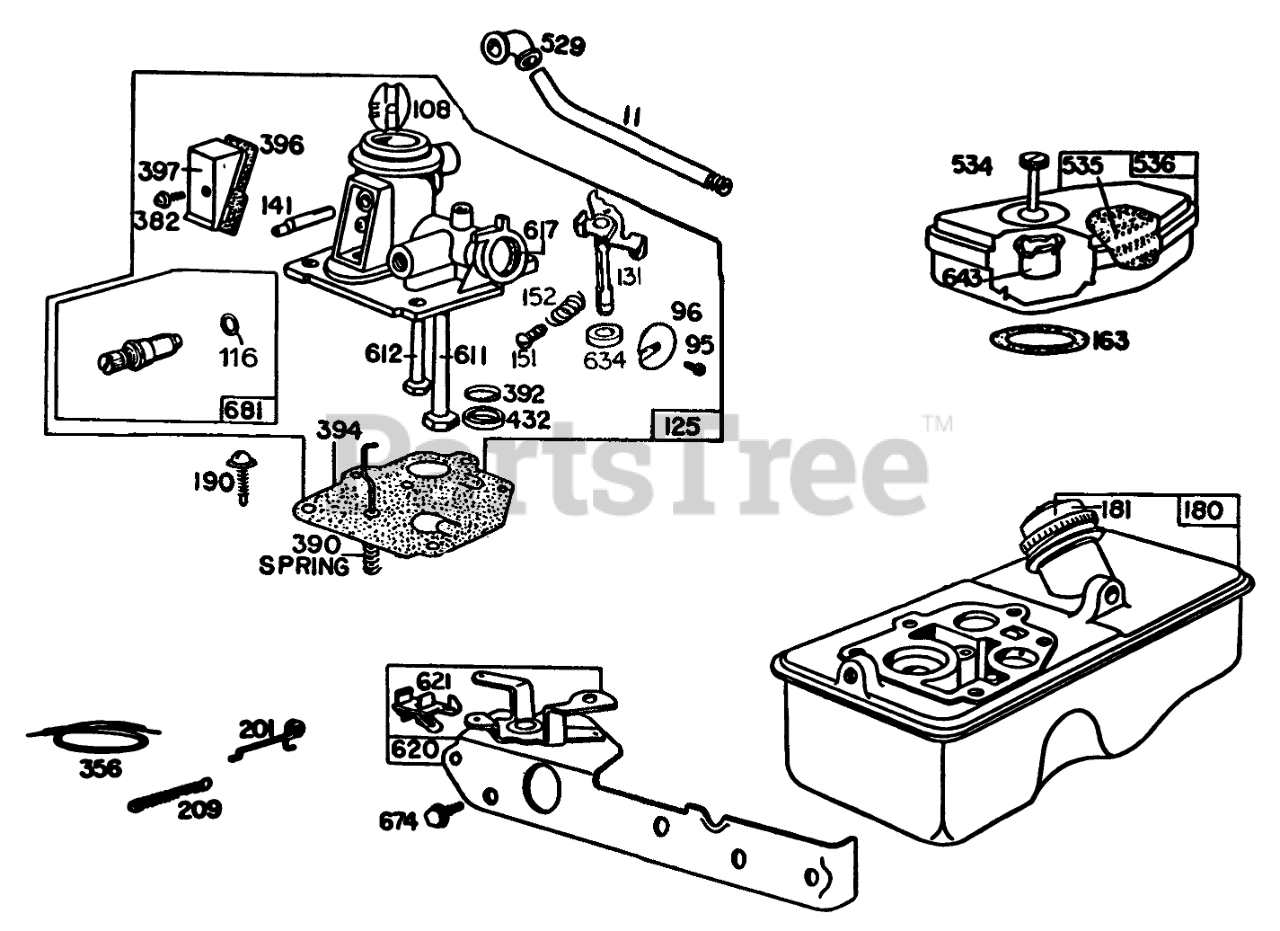

ENGINE BRIGGS & STRATTON MODEL 92908-5205-01 Parts Diagram

  • Title

11

Briggs & Stratton 230802

Tube Breather

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211237

Valve

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

O-Ring
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 394063

Carburetor Assembly
(Superseded to 395957)

$

$

Not available

131

Briggs & Stratton 299977

Shaft & Lever-Throttle

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Rd. Hd

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adj
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 391694

Tank Assembly-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261027

Link-Governor

$5.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261034

Spring-Governor

$

$

Not available

356

Toro 395389

Wire-Ground

$

$

Currently unavailable

358

Briggs & Stratton 298989

Gasket Set
(Superseded to 590777)

$

$

Not available

382

Briggs & Stratton 93545

Screw-Choke Link Cover

$3.49

$

In Stock, only 1 left!

0

390

Briggs & Stratton 261015

Spring
(Superseded to 261249)

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 9

0

394

Briggs & Stratton 391681

Diaphragm-Carburetor

$19.99

$

In Stock, Qty 8

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, only 4 left!

0

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 15

0

534

Briggs & Stratton 93374

Srew-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

535

Briggs & Stratton 270579

Element Air Cleaner
(Superseded to 270579S)

$5.99

$

In Stock, Qty 20+

0

536

Briggs & Stratton 390055

Cleaner Assembly-Air

$16.99

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 297219

Pipe Fuel (long)
(Superseded to 297219S)

$8.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 9

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 299974

Plate Carburetor Control

$38.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

643

Briggs & Stratton 280374

Cup-Support

$7.49

$

Usually ships in 2-12 days

0

674

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

681

Briggs & Stratton 395508

Needle Valve Kit

$8.99

$

Usually ships in 2-12 days

0
