20735 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

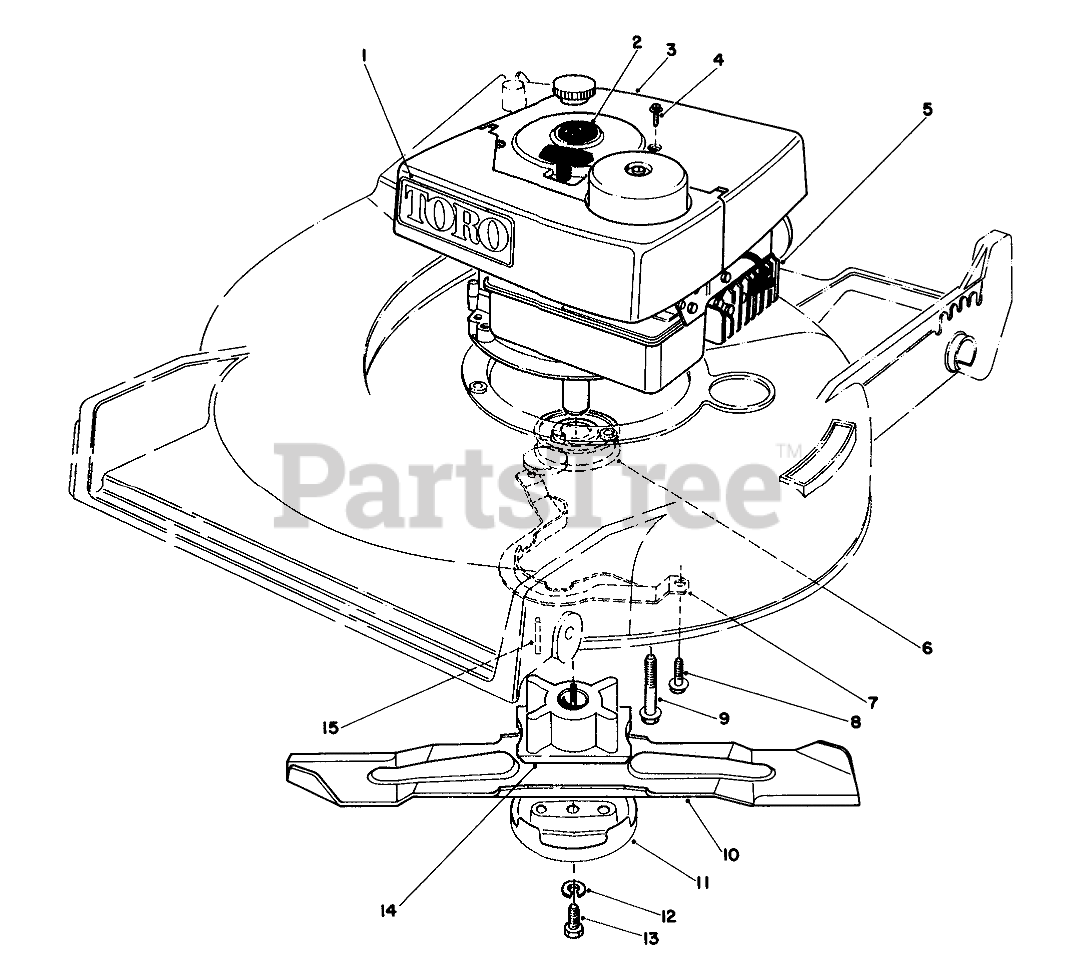

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 38-0790

Decal-Shroud

$

$

Not available

3

Toro 46-3671

ENGINE SHROUD ASM

$

$

Not available

4

Toro 32144-60

TAPPING SCREW

$

$

Not available

6

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

7

Toro 40-5720

BELT GUIDE

$

$

Not available

8

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

9

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

10

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$28.99

$

In Stock, only 1 left!

0

11

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

13

Toro 26-0670

SCREW-BLADE

$

$

Not available

14

Toro 46-3490

BLADE RETAINER(DEEP)

$109.99

$

In Stock, only 1 left!

0

15

Toro 7-0036

KEY-SQUARE

$

$

Not available

Toro 46-1930

Wrench
(Superseded to 62-6770)

$

$

Not available

Toro 46-9620

SPK PLUG WRENCH/HDLE

$20.99

$

Usually ships in 3-6 days

0
