20735 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

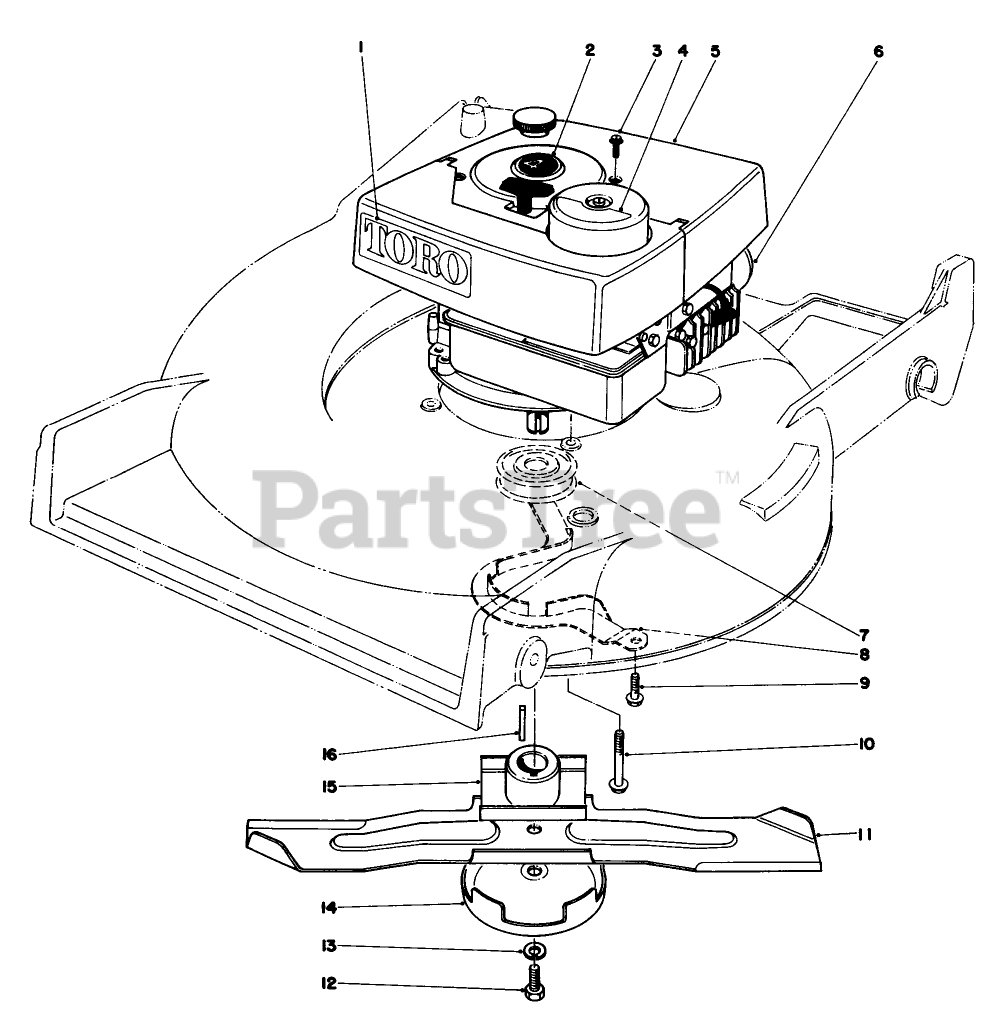

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 39-3410

Decal Toro

$

$

Not available

2

Toro 40-4950

Decal-4 Cycle

$

$

Currently unavailable

3

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

4

Toro 40-4880

Decal-Air Filter (French & Dutch)

$

$

Not available

5

Toro 37-9831

SHROUD

$

$

Not available

6

Toro 221-632

Engine

$

$

Currently unavailable

7

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

8

Toro 40-5720

BELT GUIDE

$

$

Not available

9

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

10

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

11

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

12

Toro 26-0670

SCREW-BLADE

$

$

Not available

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

14

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

15

Toro 26-0770

Blade Retainer
(Superseded to 46-3490)

$109.99

$

In Stock, only 1 left!

0

16

Toro 21-5060

Key Square
(Superseded to 27-6300)

$6.49

$

In Stock, only 1 left!

0
