20725 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) STARTER & SHROUD ASSEMBLY MODEL 92908-1956-02 Parts Diagram

Walk-Behind Mower

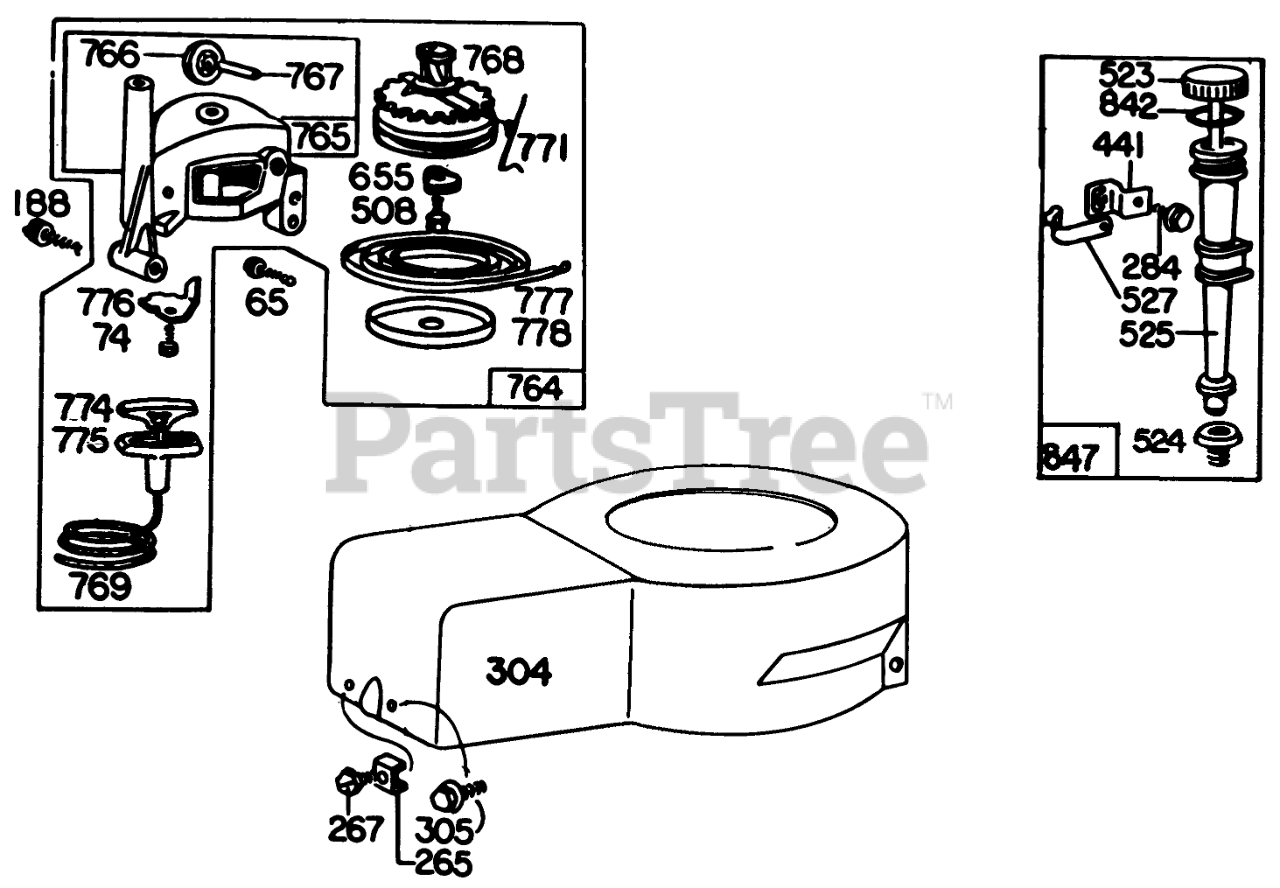

STARTER & SHROUD ASSEMBLY MODEL 92908-1956-02 Parts Diagram

  • Title

65

Briggs & Stratton 93587

Screw-Starter Mounting
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

188

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

284

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

304

Toro 299983

Housing-Blower

$

$

Currently unavailable

305

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

441

Briggs & Stratton 222530

Bracket-Oil Fill Tube

$11.99

$

Usually ships in 2-12 days

0

508

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

523

Briggs & Stratton 391838

Cap with Dipstick-Oil Filler
(Superseded to 495234)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Fill Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280131

Tube-Oil Filler

$12.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 222548

Clamp-Oil Fill Tube

$28.99

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222057

Anchor-Spring

$6.99

$

Usually ships in 2-12 days

0

764

Briggs & Stratton 392064

Vertical Pull

$55.99

$

Usually ships in 2-12 days

0

765

Briggs & Stratton 392138

Housing-Vert. Pull Starter

$39.99

$

Usually ships in 2-12 days

0

766

Briggs & Stratton 280022

Duct Body

$11.99

$

Usually ships in 2-12 days

0

767

Toro 23104

33060A GILSON ALTER

$3.23

$

Usually ships in 3-6 days

0

768

Briggs & Stratton 392063

Pulley & Gear Assy.-Starter
(Superseded to 299948)

$22.99

$

Usually ships in 2-12 days

0

769

Briggs & Stratton 66734

Rope-Starter (48.6")

$6.49

$

In Stock, Qty 11

0

771

Briggs & Stratton 299961

Clip-Starter

$6.49

$

Usually ships in 2-12 days

0

774

Briggs & Stratton 280121

Insert-Starter Handle
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

775

Briggs & Stratton 280036

Grip-Starter Rope
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

776

Briggs & Stratton 222049

Guide Rope

$3.99

$

Usually ships in 2-12 days

0

777

Briggs & Stratton 390066

Spring-Starter

$20.99

$

In Stock, only 1 left!

0

778

Briggs & Stratton 280021

Cover-Starter

$

$

Not available

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392055

Fill Group-Oil

$47.99

$

Usually ships in 2-12 days

0
