20725 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

Walk-Behind Mower

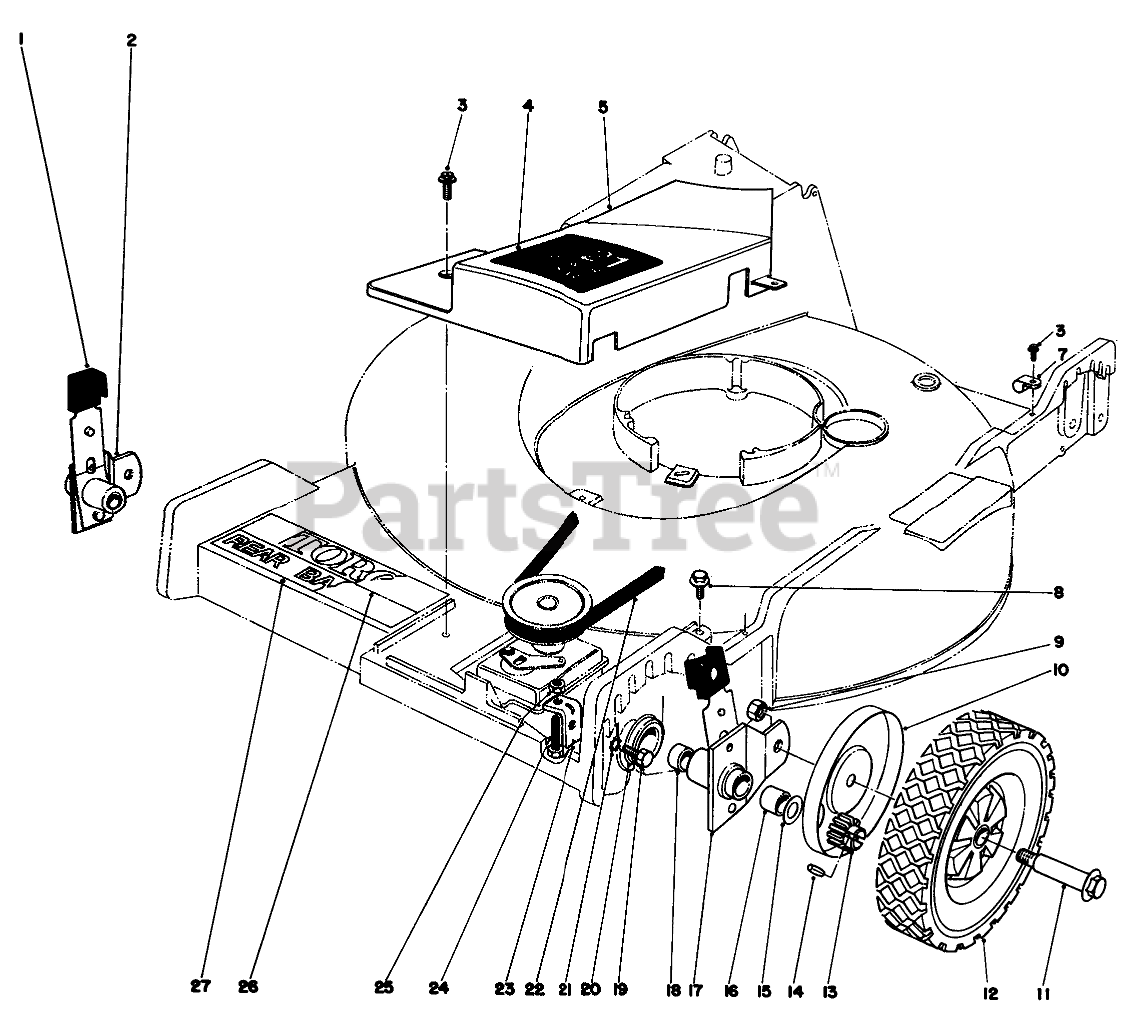

FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

2

Toro 38-1540

Pivot Arm R.H. (Incl. Ref. #16 & 18)

$

$

Not available

3

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

4

Toro 33-2940

Decal Belt Cover
(Superseded to 28-4750)

$

$

Not available

5

Toro 33-2950

BELT COVER

$

$

Not available

7

Toro 2412-52

CLAMP-NYLON

$

$

Not available

8

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

9

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

10

Toro 23-0280

WHEEL COVER

$

$

Not available

11

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

12

Toro 36-7790

Wheel & Tire Assembly
(Superseded to 11-1419)

$

$

Not available

13

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

14

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

15

Toro 18-9810

WASHER-THRUST

$9.99

$

In Stock, only 2 left!

0

16

Toro 256-263

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, Qty 20+

0

17

Toro 38-1550

Pivot Arm L.H. (Incl. Ref. #16 & 18)
(Superseded to 36-2600)

$

$

Not available

18

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 36-9040

END CAP

$11.99

$

In Stock, only 1 left!

0

21

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

22

Toro 24-9730

V-BELT

$23.99

$

Usually ships in 3-6 days

0

23

Toro 25-7560

Bracket-Gear Box

$

$

Not available

24

Toro 3-7281

SCREW

$

$

Not available

25

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

26

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

27

Toro 33-2320

DECK DECAL

$

$

Not available
