2072 (148-730-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Fuel Tank & Support Parts Diagram

Super Garden Tractor

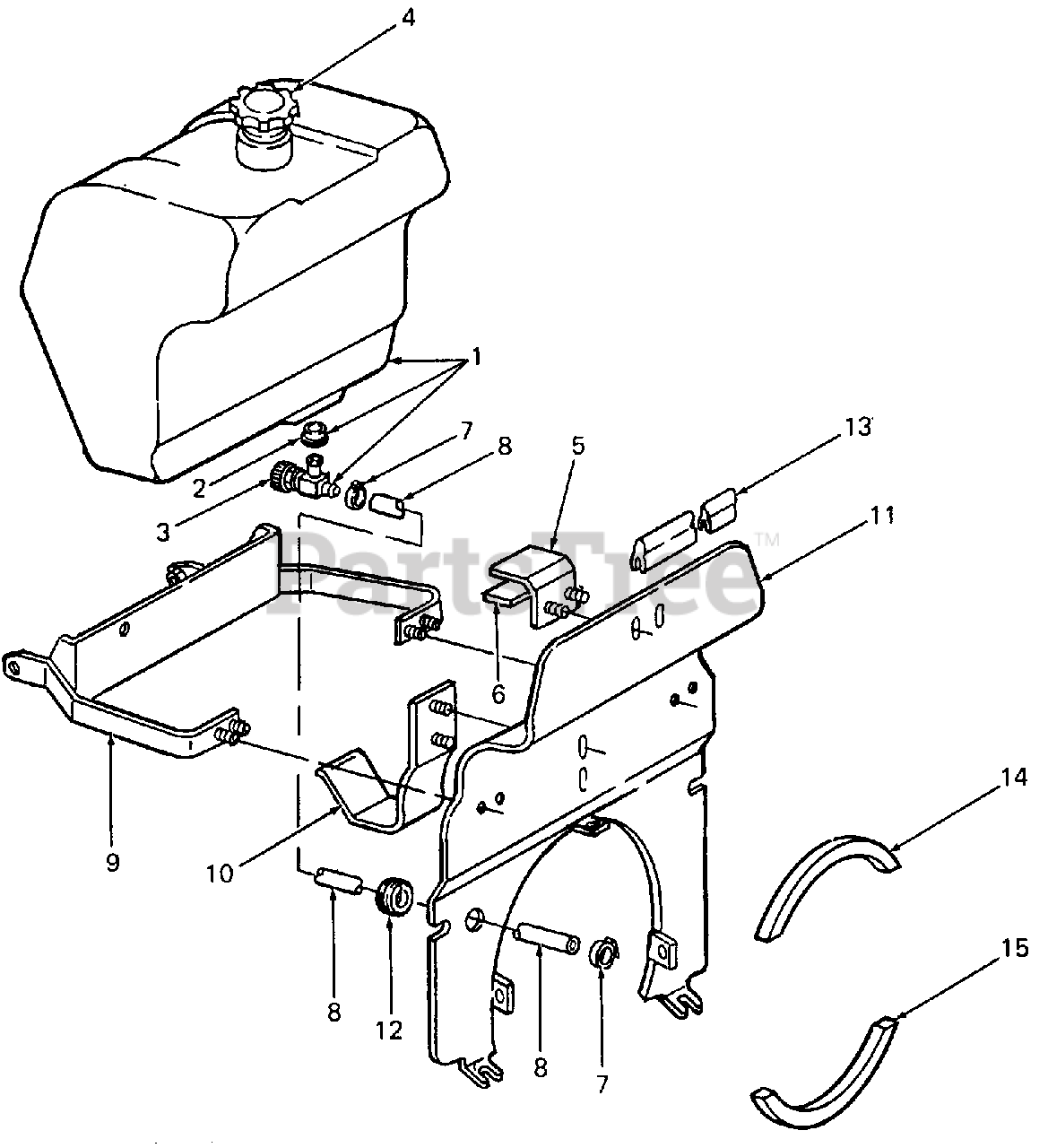

Fuel Tank & Support Parts Diagram

  • Title
1

Cub Cadet 751-3006

Tank, Fuel

$

$

Not available

2

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-0171

Valve, Shut-off w/Screen
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

4

Cub Cadet 751-0226

Gauge, Fuel Cap
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 10

0

Cub Cadet 723-3003

Gasket, Fuel Cap

$

$

Not available

5

Cub Cadet 703-0057

Clamp, Fuel Tank

$

$

Not available

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

6

Cub Cadet 735-3004

Pad, Fuel Tank Adhesive, Loctite, #495

$

$

Not available

7

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

8

Line, Fuel - 14 in. Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

Cub Cadet 759-3330

Bulk Fuel Line, 10 Ft Lg

$63.99

$

In Stock, only 2 left!

0

9

Cub Cadet 703-0049

Support, Fuel Tank

$

$

Currently unavailable

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 11

0

Cub Cadet 736-0463

Washer, Flat, .28 X .62 X .052 Thk

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet 703-0052

Support, Fuel Tank Bottom

$

$

Not available

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-3007

Nut, Hex Jam, 5/16-18 GR5

$6.99

$

In Stock, only 3 left!

0

11

Cub Cadet 703-0055

Deflector, Heat

$

$

Not available

Cub Cadet 710-3002

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-3007

Washer, Int Ext Lock, 5/16 X .88

$

$

Not available

Cub Cadet 726-3009

Clip, Cable

$

$

Not available

12

$

$

Not available

13

Cub Cadet 723-3004

Seal, Heat Baffle, 56 in. Lg

$91.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 723-3009

Strip, Foam Gasket Sealing, 27 in. Lg

$

$

Not available

15

Cub Cadet 723-3010

Strip, Foam Gasket Sealing, 17 in. Lg

$

$

Not available

Cub Cadet 759-3330

Bulk Fuel Line

Note: 10' Lg

$63.99

$

In Stock, only 2 left!

0
