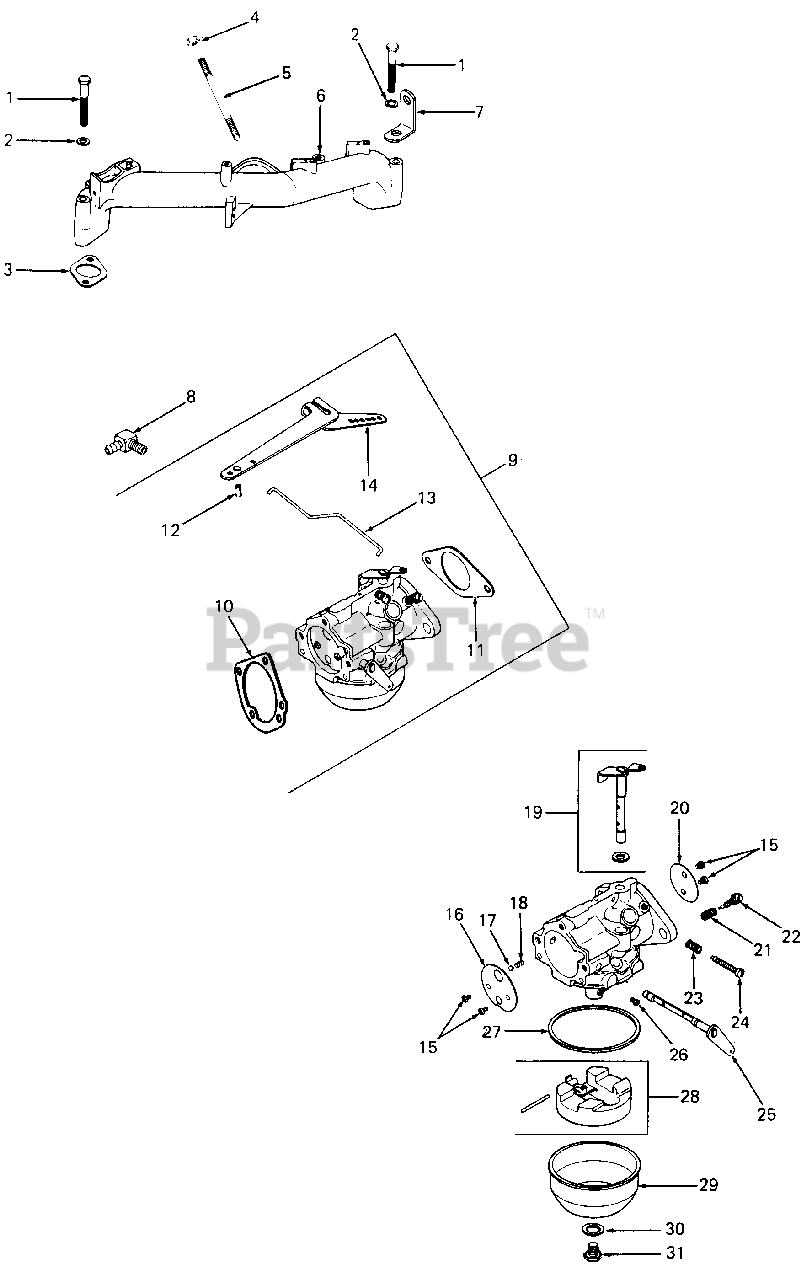

2072 (147-730-100) - Cub Cadet Super Garden Tractor (SN: 756300 - 799999) Carburetor (Model 2072) Parts Diagram

Super Garden Tractor

Carburetor (Model 2072) Parts Diagram

  • Title
1

Cub Cadet KH-X-6-8

Screw, H.C., 5/16-18 X 2.75 Lg

$

$

Not available

2

Cub Cadet KH-X-21-1

Washer, Lock, 5/16

$

$

Not available

3

Cub Cadet KH-52-041-09

Gasket, Intake Manifold
(Superseded to KH-52-041-09-S)

$13.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-X-77-2

Nut, Hex Jam, 5/16-18

$

$

Not available

5

Cub Cadet KH-X-352-37

Stud, 5/16-18 X 1.0 Lg

$

$

Not available

6

Cub Cadet KH-52-164-10

Manifold, Intake

$

$

Not available

7

Cub Cadet KH-52-445-02

Strap, Lifting

$

$

Currently unavailable

8

Cub Cadet KH-25-155-02

Connector, 90

$

$

Not available

9

Cub Cadet KH-52-853-02

Kit, Carburetor w/Linkage

Note: (Includes Ref No. 11 thru 31)

$

$

Not available

10

Cub Cadet KH-277069

Gasket, Elbow
(Superseded to KH-25-041-06)

$

$

Not available

11

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-158-07

Bushing, Linkage Retaining
(Superseded to KH-25-158-11)

$

$

Not available

13

Cub Cadet KH-52-079-05

Linkage, Governor
(Superseded to KH-82-755-07)

$

$

Not available

14

Cub Cadet KH-52-186-06

Arm, Governor

$

$

Not available

15

Cub Cadet KH-25-086-27

Screw, Throttle & Choke Plate

$

$

Not available

16

Cub Cadet KH-25-146-03

Plate, Choke

$

$

Not available

17

Cub Cadet KH-25-194-01

Ball, Choke Friction

$

$

Not available

18

Cub Cadet KH-25-089-03

Spring, Choke Friction

$

$

Not available

19

Cub Cadet KH-52-144-16

Shaft, Throttle w/Lever & Seal

$

$

Not available

20

Cub Cadet KH-25-146-02

Plate, Throttle

$

$

Not available

21

Cub Cadet KH-25-089-02

Spring, Idle Fuel

$

$

Not available

22

Cub Cadet KH-25-368-01

Needle, Idle Fuel Adj

$

$

Not available

23

Cub Cadet KH-25-089-04

Spring, Idle Speed

$

$

Not available

24

Cub Cadet KH-25-086-26

Screw, Idle Speed Adj

$

$

Not available

25

Cub Cadet KH-52-090-13

Lever, Choke

$

$

Not available

26

$

$

Not available

27

Cub Cadet KH-25-041-04

Gasket, Bowl

$

$

Not available

28

$

$

Not available

29

$

$

Not available

30

Cub Cadet KH-25-041-03

Gasket, Bowl Retainer Screw

$

$

Not available

31

Cub Cadet KH-25-100-05

Screw, Bowl Retainer
(Superseded to KH-12-086-05)

$

$

Not available

Cub Cadet KH-25-757-08

Kit, Carburetor Repair
(Superseded to KH-25-757-11)

$

$

Not available

Cub Cadet KH-52-755-68

Kit, High Altitude

$

$

Currently unavailable
