20718 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) DETHATCHER KIT MODEL NO. 59126 (OPTIONAL) Parts Diagram

Walk-Behind Mower

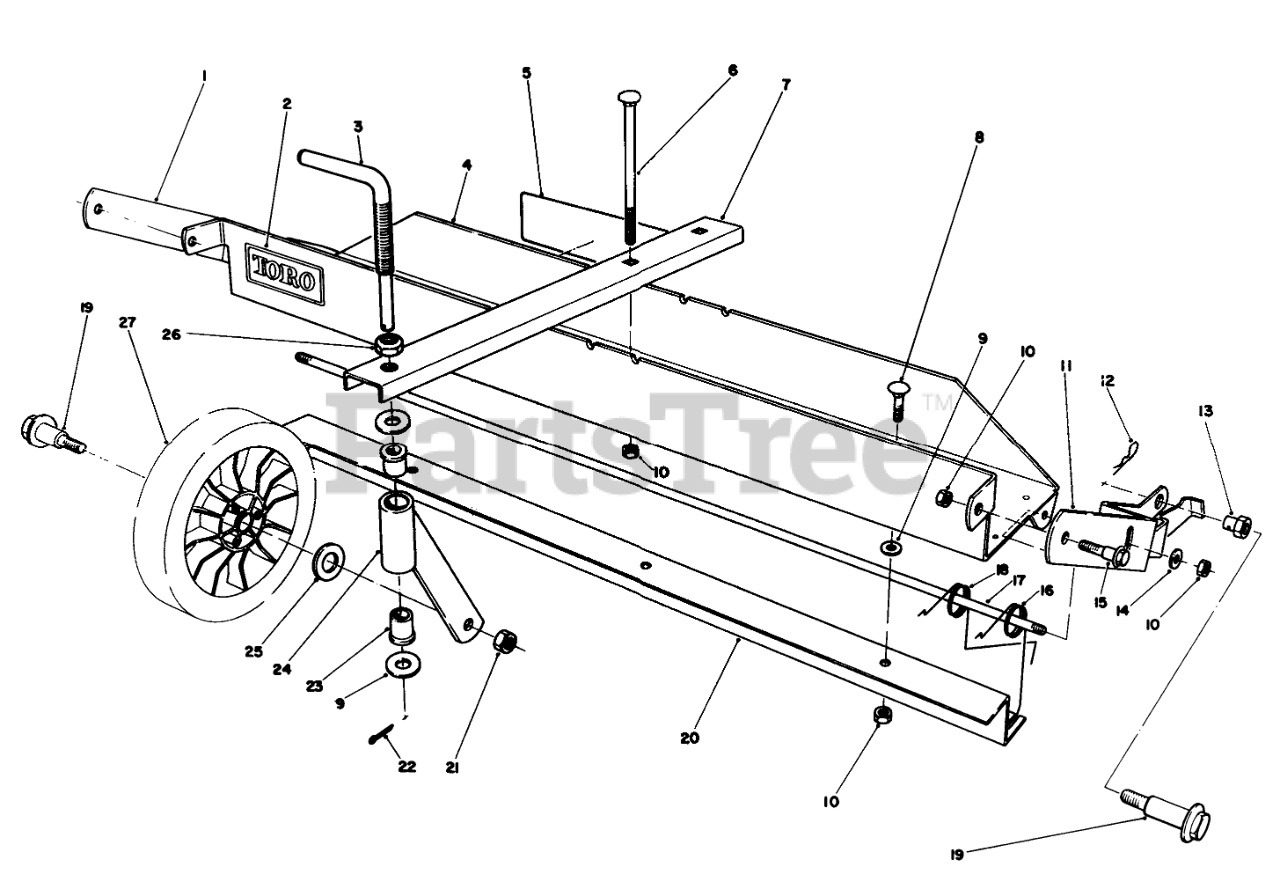

DETHATCHER KIT MODEL NO. 59126 (OPTIONAL) Parts Diagram

  • Title

1

Toro 47-6030

Frame R.H.

$

$

Not available

2

Toro 44-0810

Decal-Toro
(Superseded to 71-0600)

$15.99

$

Usually ships in 3-6 days

0

3

Toro 47-6120

CASTOR ADJ ROD

$

$

Not available

4

Toro 47-2390

Frame-Main (Incl. Ref. #2 & 5)

$

$

Not available

5

Toro 47-7500

Decal-Instruction

$

$

Not available

6

Toro 3230-13

SCREW-CARR

$4.49

$

Usually ships in 3-6 days

0

7

Toro 47-6090

Castor Frame

$

$

Not available

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

11

Toro 47-6020

LH MTG FRAME

$

$

Not available

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 47-6130

PIVOT NUT

$

$

Not available

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

15

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

16

Toro 47-6040

DETHATCHER SPRING

$

$

Not available

17

Toro 47-6050

SPRING SUPPORT ROD

$

$

Not available

18

Toro 47-6041

DETHATCHER SPRING

$

$

Not available

19

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

20

Toro 47-6010

SPRING GUIDE STRAP

$

$

Not available

21

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

22

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

23

Toro 47-6110

FLANGE BUSHING

$

$

Not available

24

Toro 47-6060

Castor Tube & Support

$

$

Not available

25

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

26

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

27

Toro 34-0380

Wheel Assembly
(Superseded to 27-6210)

$

$

Not available

Toro 11-5239

Loose Parts

Note: Not illustrated

$

$

Not available
