20716 - Toro Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 12U802-1740-E1 Parts Diagram

Walk-Behind Mower

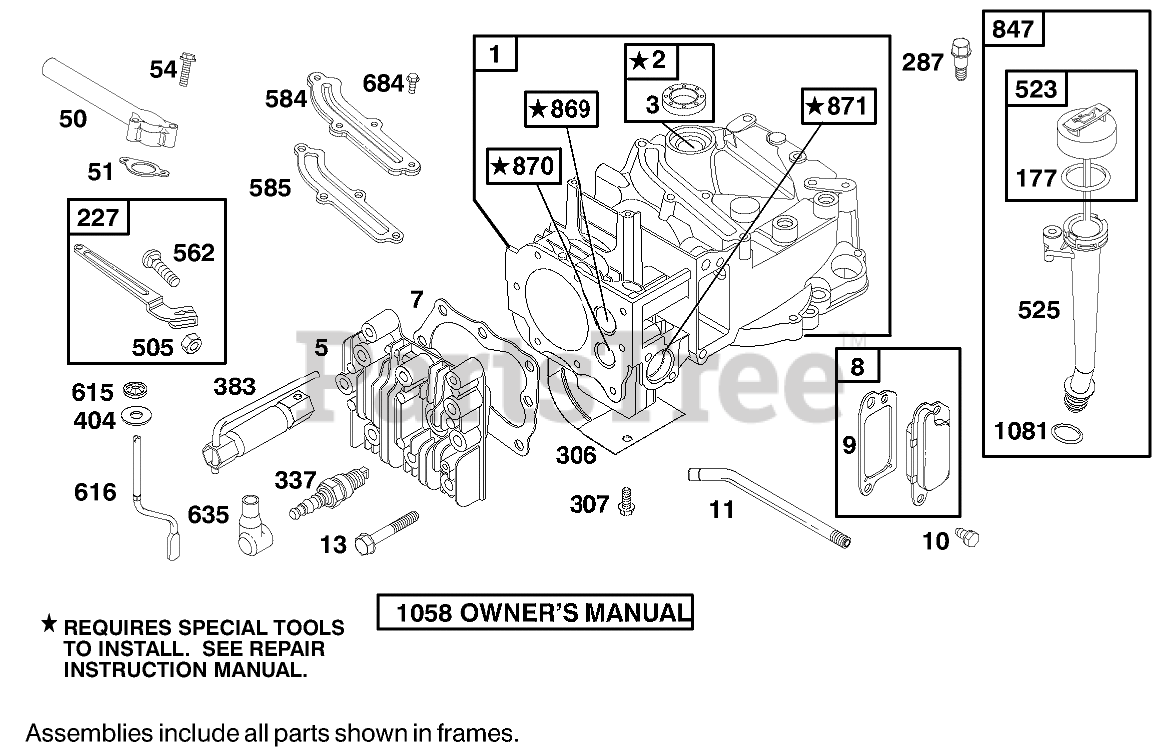

ENGINE BRIGGS & STRATTON MODEL 12U802-1740-E1 Parts Diagram

  • Title

1

Briggs & Stratton 493260

Cylinder
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399269

Bushing and Seal Kit
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 691160

Head-Cylinder
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Gasket Set-See Ref. 358.

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495786

Breather ASM
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Overhaul Gasket Set-See Ref. 1095.

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 691125

Screw

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691781

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94547

Screw-Hex.
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

50

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

$

$

Not available

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 94526

Screw-Hex
(Superseded to 691650)

$2.99

$

Usually ships in 2-12 days

0

177

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-See Ref. 358.

$5.49

$

In Stock, Qty 20+

0

227

Briggs & Stratton 492349

Lever Ass-y. Gov.
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

$3.99

$

In Stock, Qty 5

0

306

Briggs & Stratton 690450

Shield-Cylinder

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

404

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$3.99

$

In Stock, only 2 left!

0

505

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

523

Briggs & Stratton 495264

Dipstick
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

525

Briggs & Stratton 495265

Tube-Dipstick

$

$

Not available

562

Briggs & Stratton 94852

Screw (Governor Control Lever)
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

584

Briggs & Stratton 692342

Cover?Breather Passage
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 272238

Gasket-Breather
(Superseded to 691879)

Note: Included in Gasket Set-See Ref. 358.

$6.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 94474

Pushnut
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 263175

Crank-Governor
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

684

Briggs & Stratton 94515

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 495263

Tube-Oil Filler
(Superseded to 692047)

$

$

Not available

869

Briggs & Stratton 213512

Seat-IntakeValve
(Superseded to 691155)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213513

Exhaust Valve Seat
(Superseded to 690380)

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Guide

$13.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 273693

Owner-s Manual
(Superseded to 380567TRI)

$

$

Not available

1081

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

In Stock, only 1 left!

0
