20716 - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

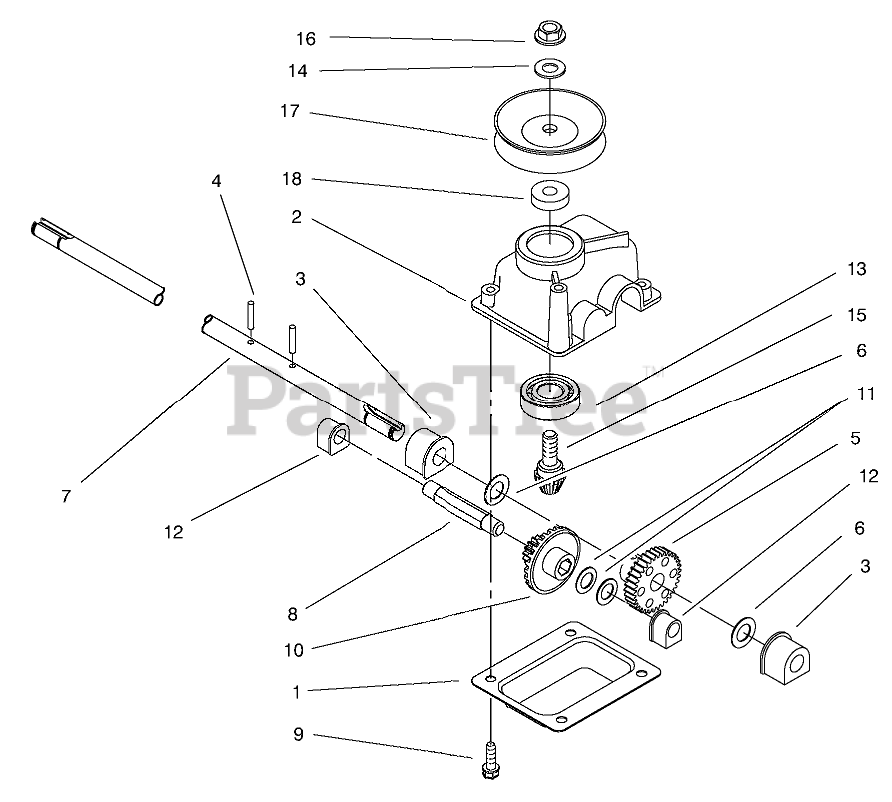

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 614668

Cover-Gear Case
(Superseded to 614668-03)

$9.49

$

Usually ships in 3-6 days

0

2

Toro 92-7727

Gearcase
(Superseded to 104-7619)

$45.99

$

In Stock, only 1 left!

0

3

Toro 60-8850

BUSHING

$8.49

$

In Stock, Qty 17

0

4

Toro 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 7

0

5

Toro 614596

GEAR

$54.99

$

In Stock, Qty 5

0

6

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

0

7

Toro 93-0239

Shaft-Output
(Superseded to 104-7670)

$139.99

$

Usually ships in 3-6 days

0

8

Toro 614696

SHAFT-INTERMEDIATE

$108.99

$

Usually ships in 3-6 days

0

9

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 55-3760

Gear-Bevel
(Superseded to 104-7668)

$34.99

$

In Stock, only 1 left!

0

11

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

12

Toro 60-8750

BUSHING

$6.99

$

In Stock, Qty 10

0

13

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

15

Toro 60-8890

Gear-Pinion
(Superseded to 104-7667)

$18.99

$

In Stock, only 1 left!

0

16

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

17

Toro 614669

HALF-PULLEY

$23.99

$

In Stock, only 2 left!

0

18

Toro 62-6660

SPACER

$1.49

$

In Stock, only 3 left!

0
