20716 - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12U802-1739-E1 Parts Diagram

Walk-Behind Mower

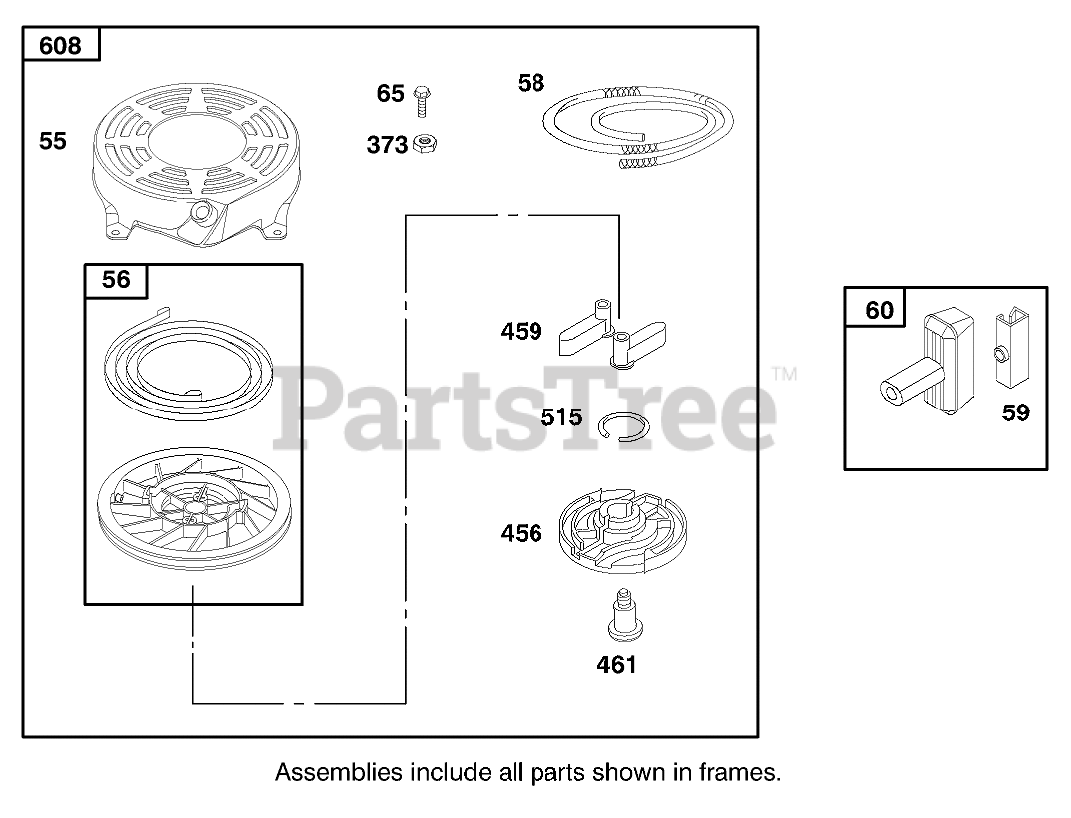

ENGINE BRIGGS & STRATTON MODEL 12U802-1739-E1 Parts Diagram

  • Title

55

Briggs & Stratton 497440

Rewind StarterHousing
(Superseded to 691421)

$64.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 498144

Pulley and Spring ASM

$19.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 7

0

59

Toro T224467

Insert-Starter Grip

$

$

Currently unavailable

60

Toro T494212

Handle-Rewind Starter

$

$

Currently unavailable

65

Briggs & Stratton 94904

Screw-Hex
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

373

Briggs & Stratton 94908

Nut-Hex.
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

456

Briggs & Stratton 281503

Retainer-Spring
(Superseded to 692299)

$4.99

$

In Stock, only 3 left!

0

459

Briggs & Stratton 281505

Ratchet-Pawl
(Superseded to 281505S)

$3.49

$

In Stock, Qty 9

0

461

Briggs & Stratton 94943

Pin-Starter
(Superseded to 691696)

$11.99

$

In Stock, Qty 5

0

515

Briggs & Stratton 263073

Spring-Torsion
(Superseded to 691855)

$4.49

$

In Stock, only 2 left!

0

524

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 497316.

$5.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 497680

Starter-Rewind

$49.99

$

In Stock, Qty 20+

0

842

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-Part No. 497316.

$4.99

$

In Stock, only 1 left!

0
