20715 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

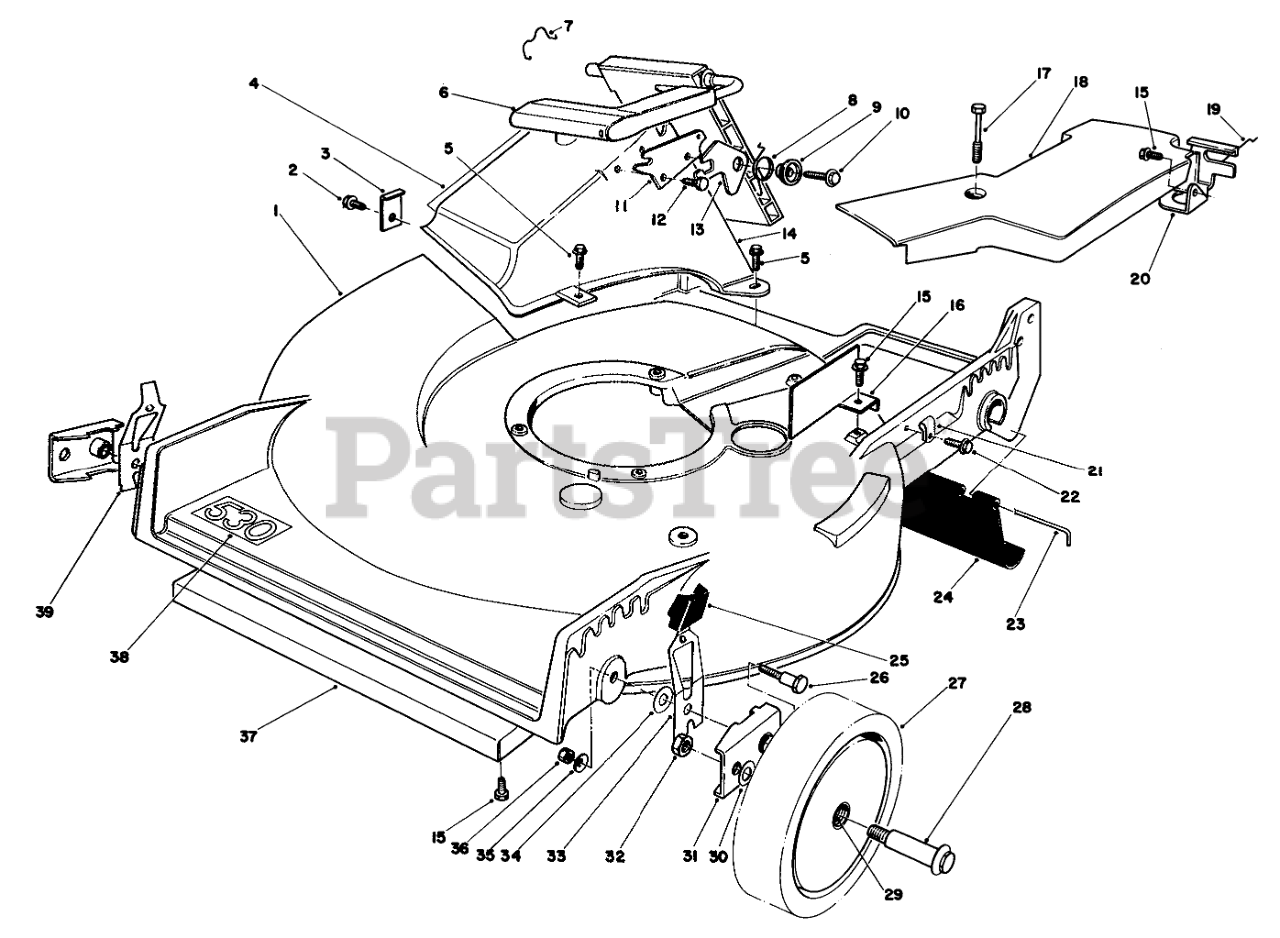

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 11-4089

21 SP RB HSG/DECAL

$

$

Not available

2

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

3

Toro 47-6540

TUNNEL CLIP

$

$

Not available

4

Toro 46-9350

ATTENTION DECAL

$

$

Not available

5

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

6

Toro 51-0200

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

7

Toro 47-5840

DOOR RET SPRING

$

$

Not available

8

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

9

Toro 434840

Latch Spacer

$

$

Currently unavailable

10

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

11

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

12

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

13

Toro 424010

Latch-Door

$

$

Currently unavailable

14

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$192.99

$

Usually ships in 3-6 days

0

15

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

16

Toro 49-8450

Shield-Muffler

$

$

Not available

17

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

18

Toro 52-7390

Cover-Belt
(Superseded to 82-9911)

$

$

Not available

19

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

20

Toro 46-5870

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

21

Toro 2412-83

CLAMP-CABLE

$

$

Not available

22

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

23

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

24

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

25

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

26

Toro 44-5270

PIVOT SCREW

$10.99

$

In Stock, Qty 8

0

27

Toro 52-7530

Wheel & Tire Assembly (Incl. Ref. #29)

$

$

Not available

28

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

29

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

30

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

31

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro 52-7480

L. HP SPRING ARM ASM

$

$

Not available

34

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

35

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 46-5400

Shield-front
(Superseded to 46-5400-03)

$65.99

$

Usually ships in 3-6 days

0

38

Toro 46-9410

Decal-530

$

$

Not available

39

Toro 52-7490

R HP SPRING ARM ASM

$

$

Not available

Toro 11-6599

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
