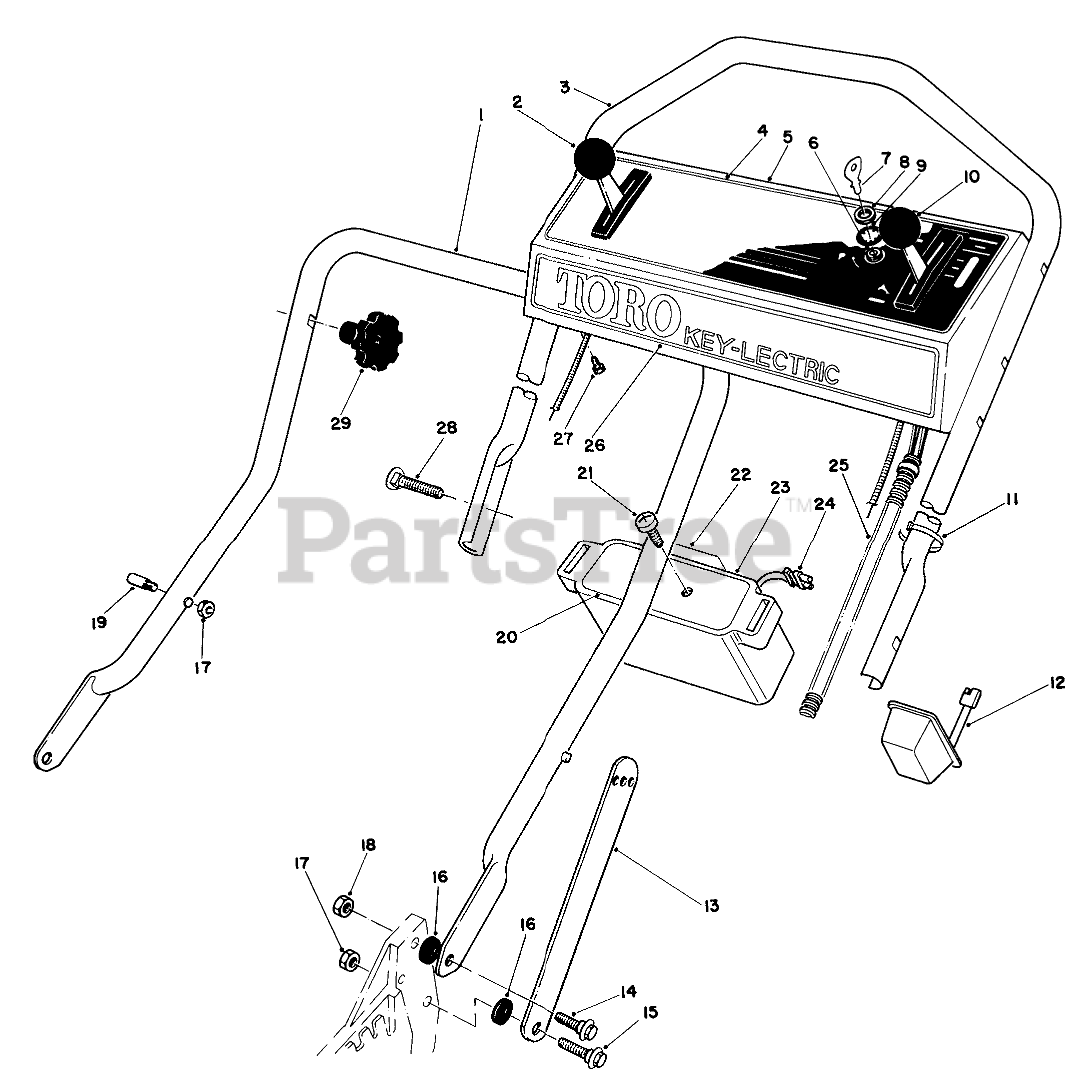

20715 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 43-1360

Handle-Lower
(Superseded to 43-1361)

$

$

Not available

2

Toro 46-5430

GROUND SPEED CONTROL

$80.99

$

Usually ships in 3-6 days

0

3

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

4

Toro 47-5410

OBS INSTR PANEL DECAL

$

$

Not available

5

Toro 11-6539

Control Panel (Incl. Ref. #4)

$

$

Not available

6

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

7

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

8

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

9

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

10

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

12

Toro 22-4710

Charger
(Superseded to 98-2391)

$60.99

$

Usually ships in 3-6 days

0

13

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

14

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

15

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

16

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

19

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$32.99

$

Usually ships in 3-6 days

0

20

Toro 39-0630

BATTERY COVER

$

$

Not available

21

$

$

Not available

22

Toro 36-5380

Decal

$

$

Not available

23

Toro 39-0640

Battery Case

$

$

Not available

24

Toro 49-8140

Plug & Wire Assembly
(Superseded to 49-8141)

$

$

Not available

25

Toro 46-8990

Wire Harness
(Superseded to 46-8991)

$

$

Not available

26

Toro 46-8460

Decal-Toro

$

$

Not available

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

29

$17.99

$

In Stock, only 3 left!

0

Toro 38-4180

Battery Pack (Incl. Ref. #18-22)
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available
