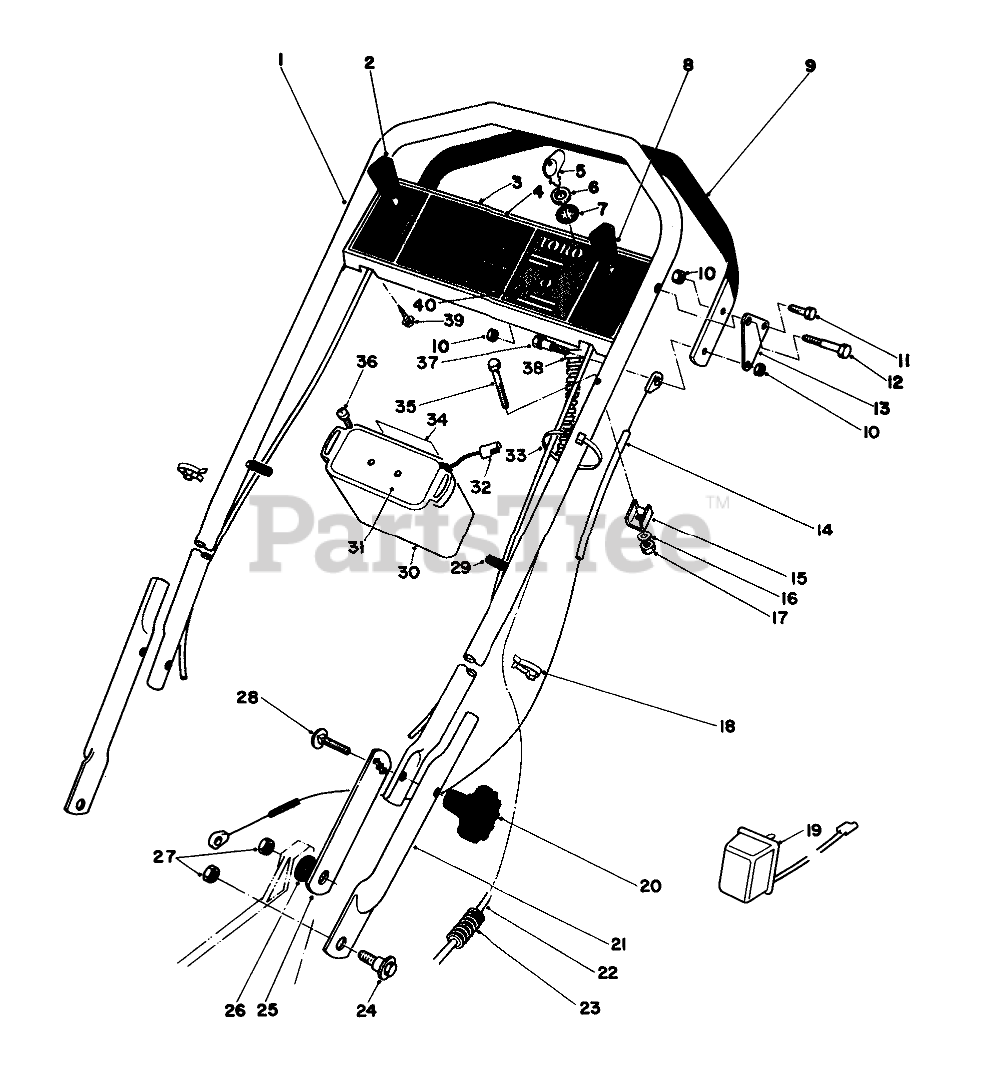

20715 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 40-4860

Upper Handle

$

$

Not available

2

Toro 42-3923

Ground Speed Control
(Superseded to 42-3922)

$

$

Not available

3

Toro 11-2299

Control Panel (Incl. Ref. #4)

$

$

Not available

4

Toro 44-2160

Decal-Control Panel

$

$

Not available

5

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

6

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

7

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

8

Toro 42-3913

Throttle Control
(Superseded to 46-6020)

$

$

Not available

9

Toro 40-4840

DEMAND HANDLE ASM

$

$

Not available

10

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 36-2250

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

13

Toro 40-4850

Bracket Demand

$

$

Not available

14

Toro 29-9502

DEMAND HAND CABLE

$

$

Not available

15

Toro 29-9550

CLAMP-CABLE

$

$

Not available

16

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 218-465

BOWDEN CLIP

$

$

Not available

19

Toro 22-4710

Charger
(Superseded to 98-2391)

$

$

Not available

20

$17.99

$

In Stock, only 2 left!

0

21

Toro 29-9160

LOWER HANDLE

$

$

Not available

22

Toro 38-4680

WIRE HARNESS

$

$

Not available

23

Toro 38-4630

Decal-Caution

$

$

Currently unavailable

24

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

25

Toro 44-0590

HANDLE LATCH

$43.99

$

Usually ships in 3-6 days

0

26

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

27

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

28

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 20+

0

29

Toro 2410-49

CAP-VINYL
(Superseded to 42452)

$1.49

$

Usually ships in 3-6 days

0

30

Toro 39-0640

Battery Case

$

$

Not available

31

Toro 39-0630

BATTERY COVER

$

$

Not available

32

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

$

$

Not available

33

Toro 3290-381

TIE-CABLE

$1.49

$

In Stock, Qty 7

0

34

Toro 36-5380

Decal

$

$

Not available

35

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

36

$

$

Not available

37

Toro 43-7260

SHOULDER BOLT

$17.99

$

Usually ships in 3-6 days

0

38

Toro 2412-48

RING FITTING

$

$

Not available

39

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

40

Toro 21-5190

Starter Switch (Incl. Ref. #5-7)

$

$

Not available

Toro 38-4180

Battery Pack (Incl. Ref. #30-32, 34 & 36)
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available

Toro 11-2159

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
