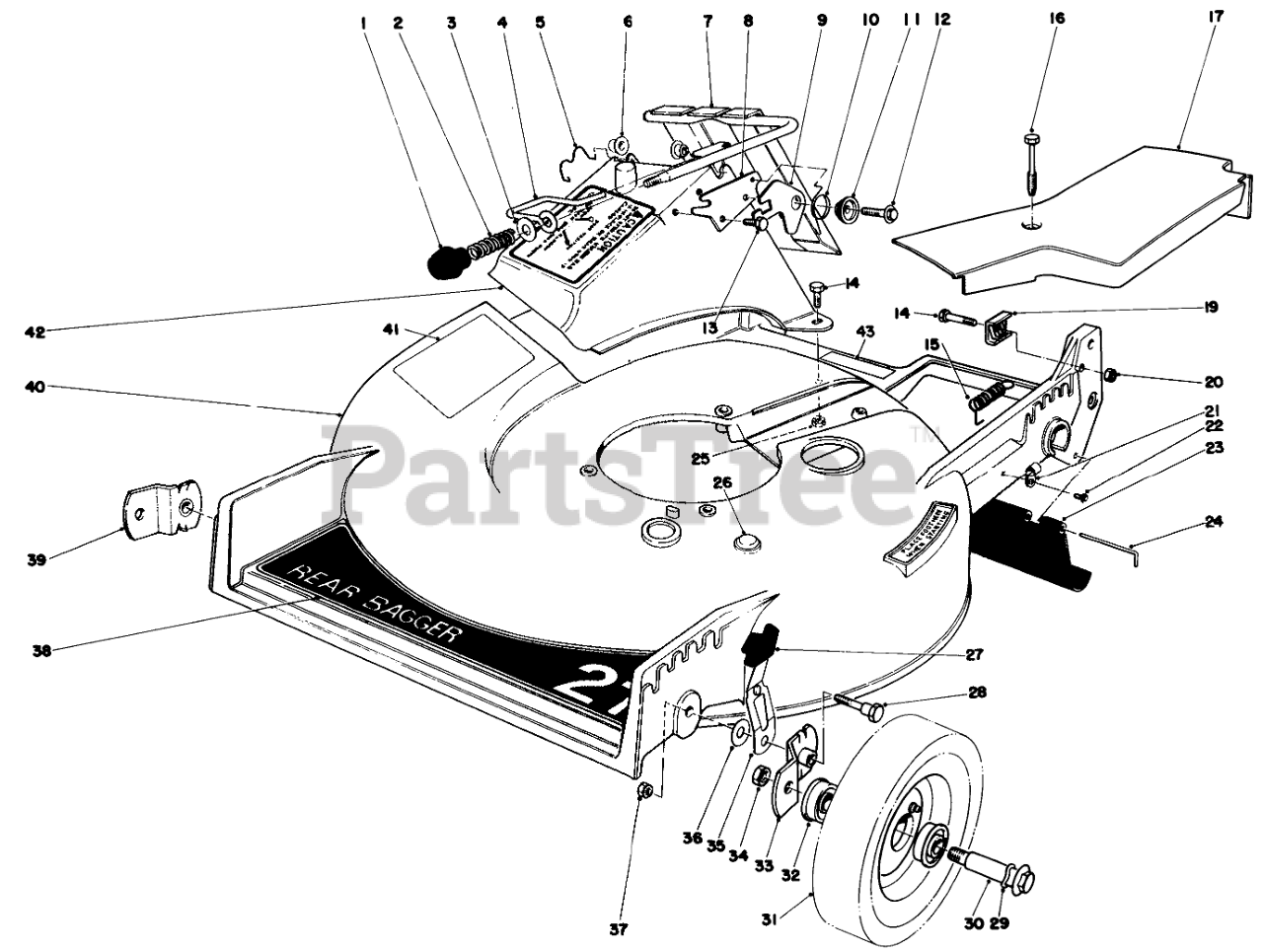

20715 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

$33.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 33-4830

DOOR RETAINER

$

$

Not available

6

Toro 23-0880

BUSHING-NYLON

$

$

Not available

7

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

8

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

9

Toro 424010

Latch-Door

$

$

Currently unavailable

10

Toro 334860

Spring-Torsion

$

$

Currently unavailable

11

Toro 23-1180

Latch Spacer

$

$

Not available

12

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

13

Toro 3210417

Screw

$

$

Currently unavailable

14

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

15

Toro 38-0040

IDLER SPRING

$27.99

$

Usually ships in 3-6 days

0

16

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

17

Toro 29-9712

Belt Cover
(Superseded to 82-9911)

$

$

Not available

19

Toro 29-9550

CLAMP-CABLE

$

$

Not available

20

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

21

Toro 2412-52

CLAMP-NYLON

$

$

Not available

22

Toro 32104-71

SCREW-HWH

$

$

Not available

23

Toro 29-9180

SHIELD - TRAILING

$67.99

$

Usually ships in 3-6 days

0

24

Toro 33-3203

Rod Shield
(Superseded to 47-4682)

$

$

Not available

25

$

$

Currently unavailable

26

$

$

Not available

27

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

28

Toro 25-3440

PIVOT SCREW

$

$

Not available

29

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

30

$

$

Not available

31

Toro 38-6000

Wheel & Tire Assy. (Incl. Ref. #32)

$

$

Not available

32

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

33

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

34

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

35

Toro 33-4850

SPRING ARM ASM (R&S)

$

$

Not available

36

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

37

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

38

Toro 40-2250

Decal-Deck
(Superseded to 44-0450)

$

$

Not available

39

Toro 23-9120

PIVOT ARM ASM B

$

$

Not available

40

Toro 11-0179

Housing
(Superseded to 11-4089)

$

$

Not available

41

Toro 40-4870

Decal-Caution (French & Dutch)

$

$

Not available

42

Toro 36-1350

DISCHARGE CHUTE B

$416.99

$

Usually ships in 3-6 days

0

43

Toro 46-1810

Decal-Noise (French)

$

$

Not available
