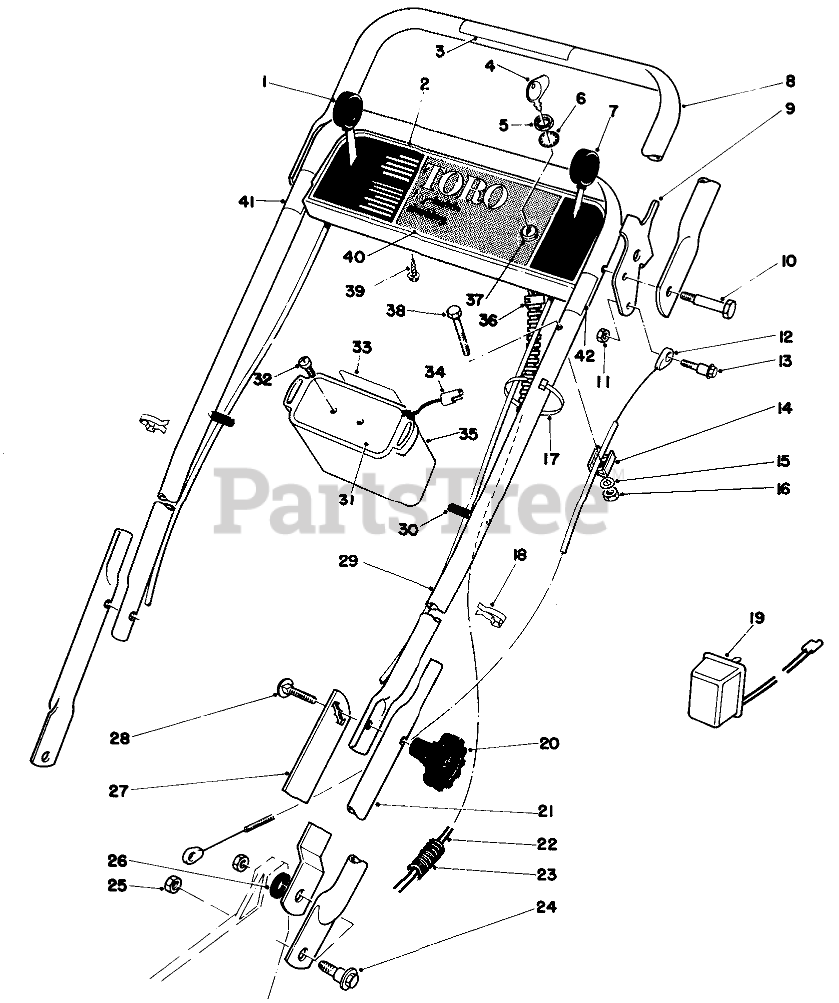

20715 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 37-4721

GROUND SPEED CONTROL

$119.99

$

Usually ships in 3-6 days

0

2

Toro 38-2460

CONTROL PLATE WA

$

$

Not available

3

Toro 39-2810

Decal-Traction Handle (French & Dutch)

$

$

Not available

4

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

5

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

6

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

7

Toro 37-4712

Throttle Control
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

8

Toro 29-9440

Demand Handle

$

$

Not available

9

Toro 29-9470

Demand Handle Stop

$

$

Not available

10

Toro 36-2250

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

12

Toro 29-9500

DEMAND HANDLE CABLE

$

$

Not available

13

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$16.99

$

Usually ships in 3-6 days

0

14

Toro 29-9550

CLAMP-CABLE

$

$

Not available

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 3290-381

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

18

Toro 218-465

BOWDEN CLIP

$

$

Not available

19

Toro 22-4710

Charger
(Superseded to 98-2391)

$60.99

$

Usually ships in 3-6 days

0

20

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

21

Toro 29-9160

LOWER HANDLE

$

$

Not available

22

Toro 38-4680

WIRE HARNESS

$

$

Not available

23

Toro 38-6630

Cover-Wiring Harness

$

$

Not available

24

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

25

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

26

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

27

Toro 36-8080

Handle Latch L.H.
(Superseded to 44-0590)

$37.99

$

Usually ships in 3-6 days

0

Toro 36-8090

Handle Latch R.H.
(Superseded to 44-0590)

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

28

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 6

0

29

Toro 38-4650

Upper Handle

$

$

Not available

30

Toro 2410-49

CAP-VINYL
(Superseded to 42452)

$1.49

$

Usually ships in 3-6 days

0

31

Toro 39-0630

BATTERY COVER

$

$

Not available

32

Toro 32104-29

10-190X1/2 PAN HD SCR

$

$

Not available

33

Toro 36-5380

Decal

$

$

Not available

34

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

$

$

Not available

35

Toro 39-0640

Battery Case

$

$

Not available

36

Toro 2412-48

RING FITTING

$

$

Not available

37

Toro 21-5190

Starter Switch (Incl. Ref. #4-6)

$129.99

$

Usually ships in 3-6 days

0

38

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

39

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

40

Toro 39-2860

Decal-Key Lectric (French & Dutch)

$

$

Not available

41

Toro 39-2890

Decal-Control Shift (French & Dutch)

$

$

Not available

42

Toro 39-2760

Decal Throttle Control

$

$

Not available

Toro 38-4180

Battery Pack (Incl Ref. #31-35)
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available
