20714 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

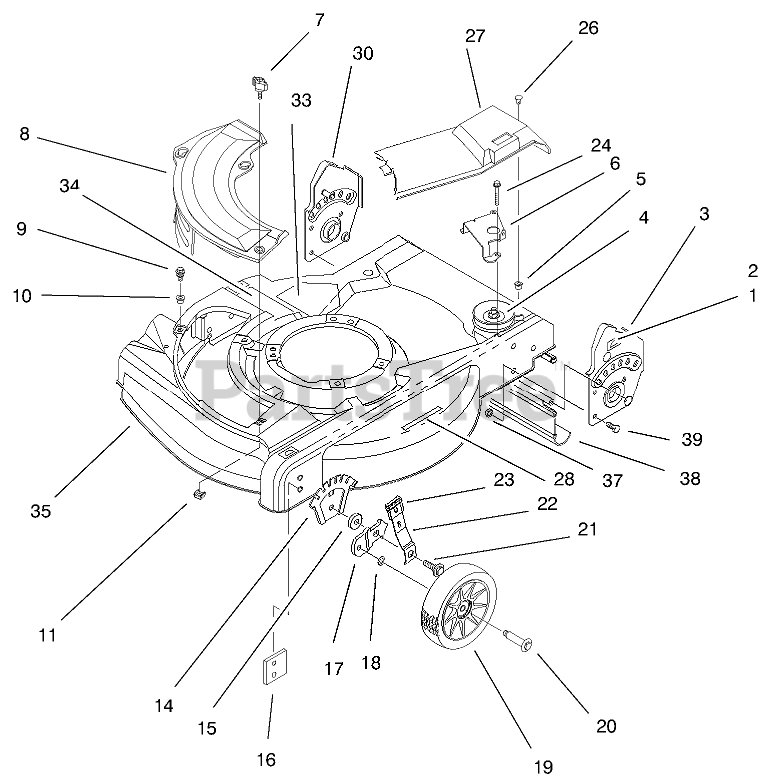

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 93-6671

DECAL-HOC, RH

$

$

Not available

2

Toro 93-6670

DECAL-HOC, LH

$

$

Not available

3

Toro 92-7724

HANDLE BRACKET ASM-LH
(Superseded to 105-8604)

$

$

Not available

4

Toro 92-7735

Gear Case
(Superseded to 104-7671)

$

$

Not available

5

Toro 605120

NUT-CLIP

$4.49

$

In Stock, Qty 7

0

6

Toro 92-7728

Guide-Transmission
(Superseded to 92-7728-03)

$7.99

$

In Stock, only 1 left!

0

7

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

8

Toro 95-7052

PLATE-OPENING, CHUTE

$36.99

$

In Stock, only 3 left!

0

9

Toro 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

10

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

11

Toro 613765

NUT-CAGE

$9.99

$

In Stock, Qty 7

0

14

Toro 92-4881

Plate H.O.C.
(Superseded to 92-4881-03)

$29.99

$

Usually ships in 3-6 days

0

15

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

16

Toro 92-7731

PLATE-BAFFLE

$10.99

$

Usually ships in 3-6 days

0

17

Toro 614637

Bracket-H.
(Superseded to 95-7403-03)

$

$

Not available

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 684776

WHEEL AND TIRE ASM

$37.99

$

In Stock, Qty 20+

0

20

Toro 92-1099

BOLT-SHOULDER

$8.49

$

In Stock, Qty 20+

0

21

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

22

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

23

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

24

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

26

Toro 92-9665

SCREW-TAP

$6.99

$

In Stock, Qty 20+

0

27

Toro 95-7068

COVER-DRIVE

$25.99

$

In Stock, only 1 left!

0

30

Toro 92-7723

HANDLE BRACKET ASM-RH
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

35

Toro 95-7088

Housing & Baffle ASM (Incl. Ref. #1-2, 10-11, 43, 45, & 48)

$456.99

$

Usually ships in 3-6 days

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 92-8647

SHIELD-TRAILING

$41.99

$

In Stock, only 1 left!

0

39

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 93-6657

DECAL-DANGER

$

$

Not available

44

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

45

Toro 93-6667

DECAL - WARNING

$

$

Not available

46

Toro 94-1697

Guard-Plate (Incl. Ref. #45)

$272.99

$

Usually ships in 3-6 days

0

47

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

48

Toro 95-7051

DECAL - DECK,SP

$

$

Not available
