20714 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12U802-0639-01 Parts Diagram

53cm Walk-Behind Mower

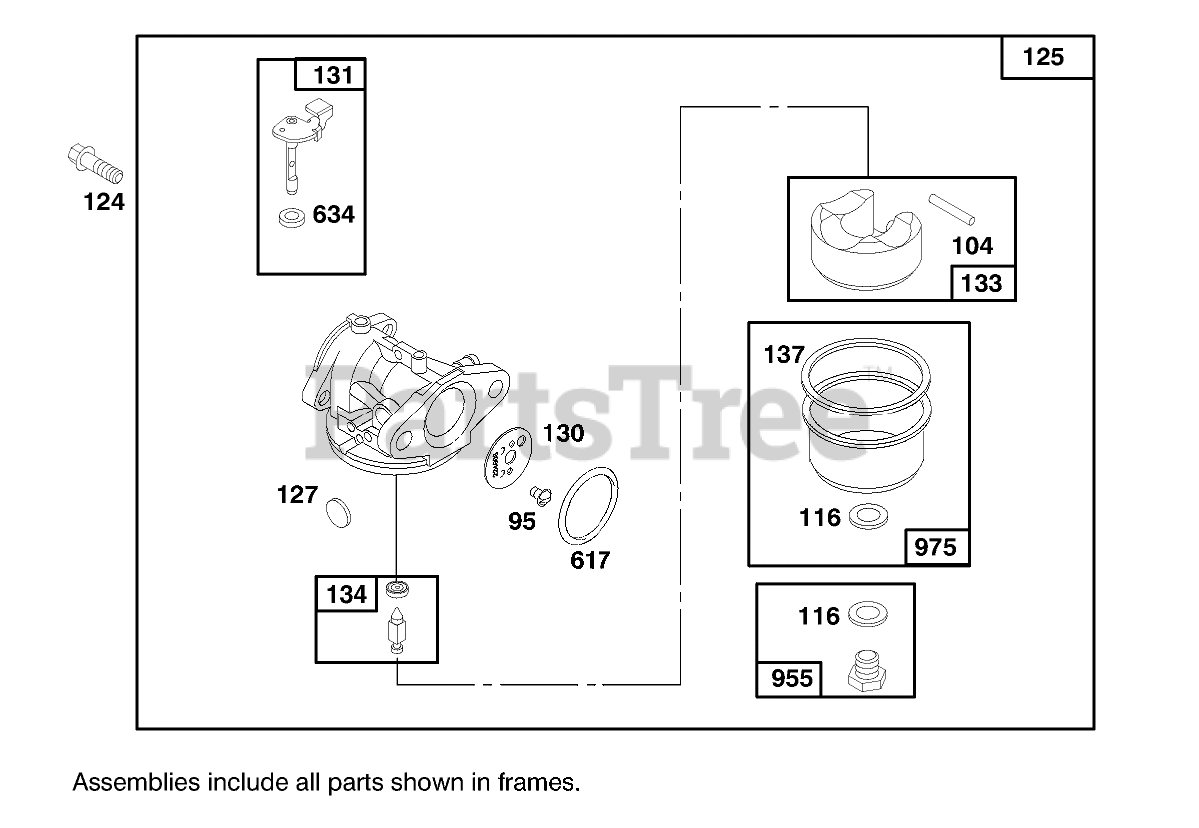

ENGINE BRIGGS & STRATTON MODEL 12U802-0639-01 Parts Diagram

  • Title

95

Toro T94098

Screw-Throttle Valve Mtg.

$

$

Currently unavailable

104

Toro T231371

Pin-Float Hinge

Note: Included in Carburetor Kit-Part No. 498260

$

$

Currently unavailable

116

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Not available

124

Toro 94525

Screw-Hex

$

$

Currently unavailable

125

Toro 498966

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

130

Toro 224908

Throttle Valve

$

$

Currently unavailable

131

Toro T493267

Shaft-Throttle

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro T398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Not available

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Kit-Part No. 498260

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Not available

634

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

955

Toro 498975

Jet?Main

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
