20714 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

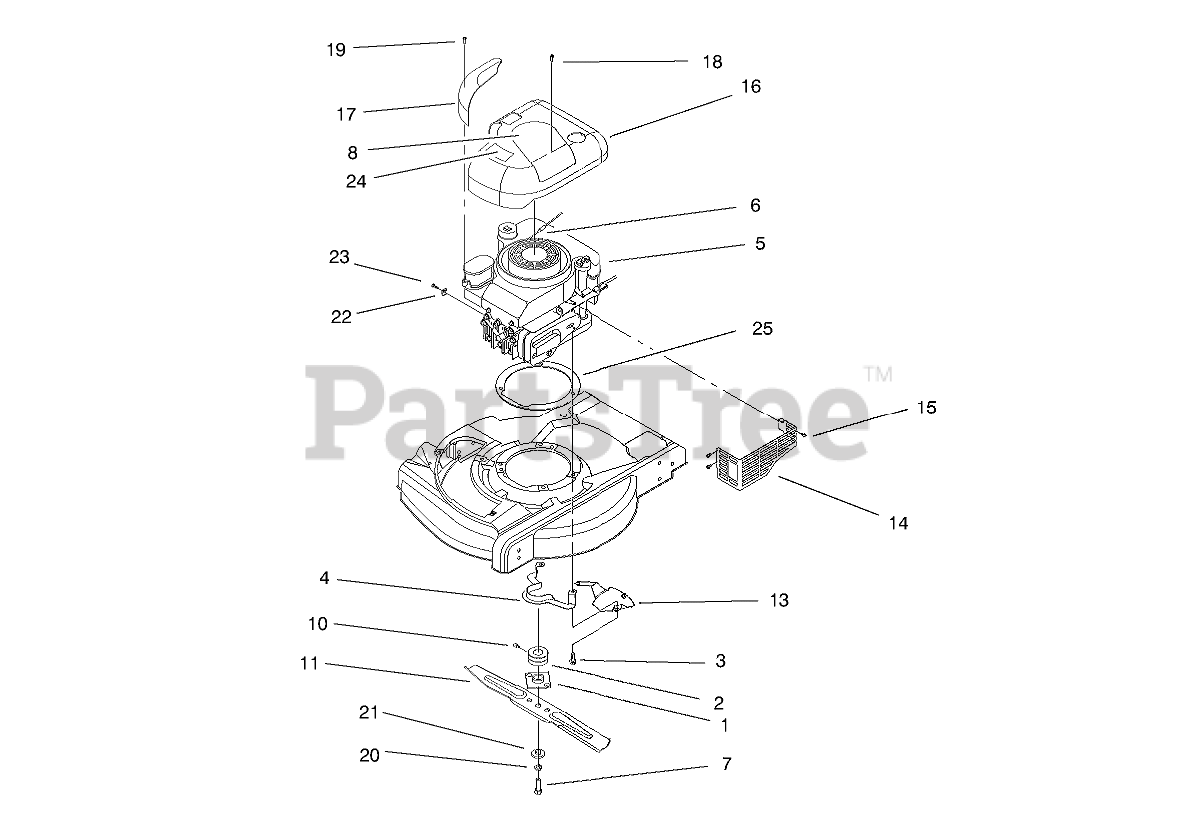

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 677525

PLATE AND COLLAR ASM

$51.99

$

In Stock, only 1 left!

0

2

Toro 92-6542

PULLEY

$93.99

$

In Stock, only 1 left!

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-1024

Guide-Belt
(Superseded to 92-1024-03)

$

$

Not available

5

Engine ASM 4-Cyc

$

$

Not available

6

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

7

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0

8

Toro 95-7053

DECAL - RECOIL,4 CYCLE

$

$

Not available

10

Toro 613227

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

11

Toro 612543

Blade
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

13

Toro 93-4196

Shield-Grass
(Superseded to 93-4196-03)

$15.99

$

In Stock, only 3 left!

0

14

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

15

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

16

Toro 95-1704

Shroud-Engine
(Superseded to 95-1704-03)

$152.99

$

Usually ships in 3-6 days

0

17

Toro 95-1709

AIR CLEANER COVER ASM

$

$

Not available

18

Toro 95-1706

Screw-Mtg
(Superseded to 92-7887)

$

$

Not available

19

Toro 95-1707

SCREW - AIR CLEANER F/W

$2.99

$

Usually ships in 3-6 days

0

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

21

Toro 92-8626

SPACER-BLADE

$15.99

$

Usually ships in 3-6 days

0

22

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

23

Toro 93-8470

SCREW-CLAMP

$

$

Not available

24

Toro 95-7061

Nameplate-Engine

$

$

Not available

25

Toro 93-7152

PLATE - ENGINE

$104.99

$

Usually ships in 3-6 days

0
