20712 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

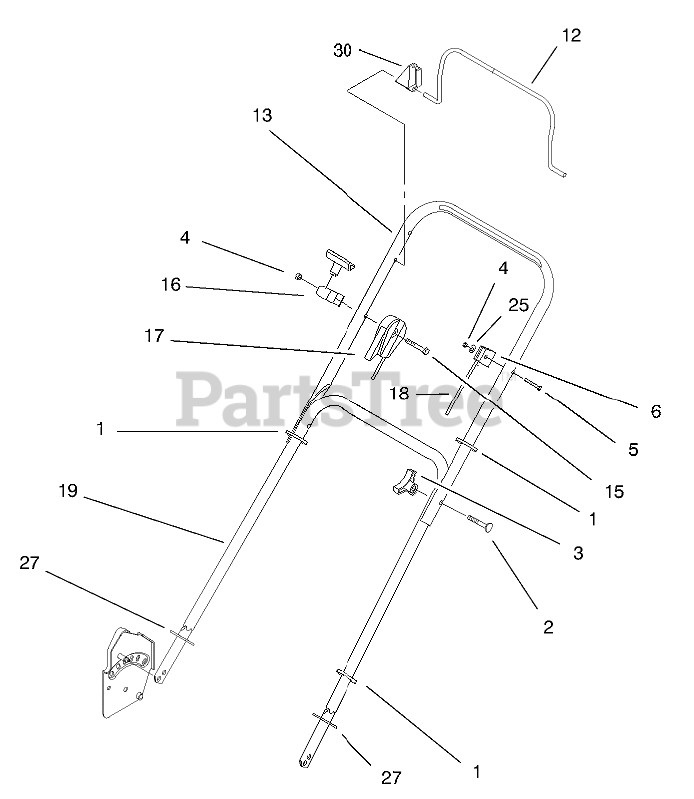

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

2

Toro 614697

SCREW

$2.49

$

In Stock, Qty 20+

0

3

Toro 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

5

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

6

Toro 94-6096

ANCHOR - CABLE

$8.49

$

In Stock, only 1 left!

0

12

Toro 94-6099

Bail-Flywheel Brake
(Superseded to 94-6099-03)

$

$

Not available

13

Toro 95-1713

Handle-Upper
(Superseded to 95-1713-05)

$

$

Not available

15

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

16

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

17

Toro 95-7064

CABLE - THROTTLE

$

$

Not available

18

Toro 95-1718

BRAKE CABLE ASM

$84.99

$

Usually ships in 3-6 days

0

19

Toro 614643

Hand e Lower
(Superseded to 614643-05)

$

$

Not available

25

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 93-3653

GUARD - HANDLE
(Superseded to 104-1013)

$

$

Not available

30

Toro 94-6097

STOP

$10.99

$

Usually ships in 3-6 days

0
