20711 - Toro 53cm Walk-Behind Mower (SN: 200000001 - 200999999) (2000) SHORT BLOCK ASSEMBLY NO. 93-4349 Parts Diagram

53cm Walk-Behind Mower

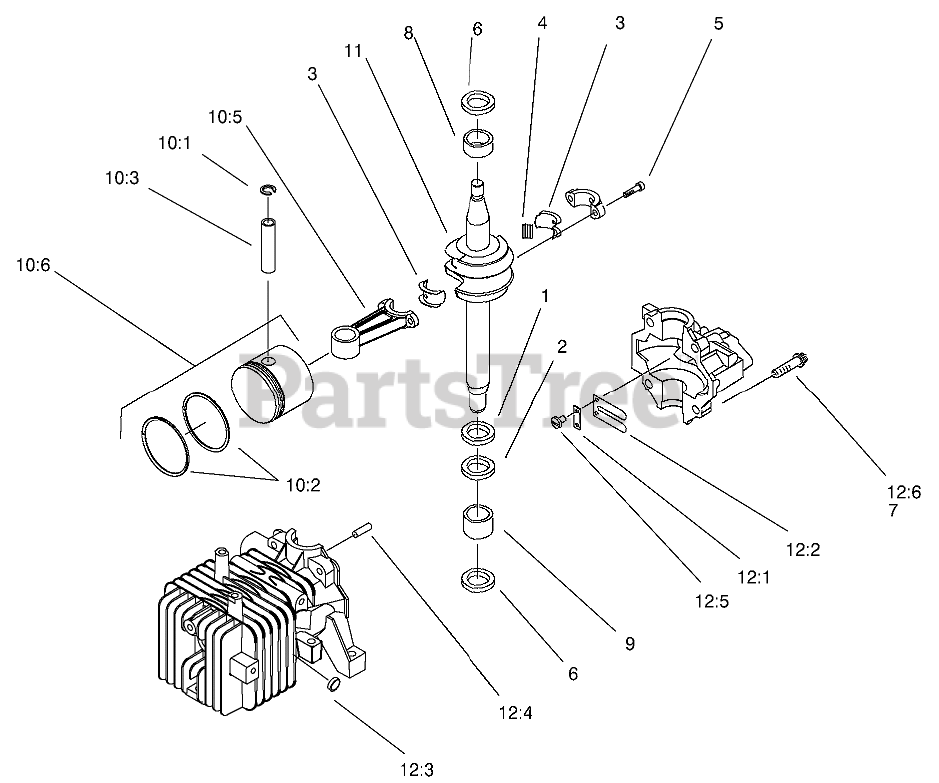

SHORT BLOCK ASSEMBLY NO. 93-4349 Parts Diagram

  • Title

1

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

2

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, only 4 left!

0

3

Toro 677982

LINER ASM

$46.99

$

In Stock, only 2 left!

0

4

Toro 683911

BEARING-NEEDLE

$23.99

$

In Stock, Qty 5

0

5

Toro 611393

SCREW-HSH

$22.99

$

Usually ships in 3-6 days

0

6

Toro 611396

SEAL-OIL

$6.99

$

In Stock, only 2 left!

0

7

Toro 614636

SCREW-HWH V

$

$

Not available

8

Toro 681830

BEARING V

$41.99

$

Usually ships in 3-6 days

0

9

Toro 681831

BEARING V

$24.99

$

Usually ships in 3-6 days

0

10:1

Toro 303712

RING-RETAINING

$3.49

$

In Stock, Qty 11

0

10:2

Toro 681737

F-RING SET

$

$

Not available

10:3

Toro 606608

PIN-WRIST VF
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

10:5

Toro 92-4921

CONNECTING ROD ASM

$241.99

$

In Stock, only 2 left!

0

10:6

Toro 92-4923

PISTON & RING

$

$

Not available

10

Piston & Connecting Rod

Note: Not serviced

$

$

Not available

11

Toro 94-5713

CRANKSHAFT V

$292.99

$

Usually ships in 3-6 days

0

12:1

Toro 602587

PLATE-BACKUP, REED

$3.49

$

Usually ships in 3-6 days

0

12:2

Toro 602588

REED-CARBURETOR

$

$

Not available

12:3

Toro 609123

PLUG-CORE VF

$3.49

$

Usually ships in 3-6 days

0

12:4

Toro 609629

DOWEL XEV

$

$

Not available

12:5

Toro 612872

SCREW-HH

$2.49

$

In Stock, Qty 5

0

12:6

Toro 614636

SCREW-HWH V

$

$

Not available

12

Cylinder & Crankcase ASM

Note: Not serviced

$

$

Not available
