20711 - Toro 53cm Walk-Behind Mower (SN: 099000001 - 099999999) (1999) SHROUD, CRANKCASE & CARBURETOR ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

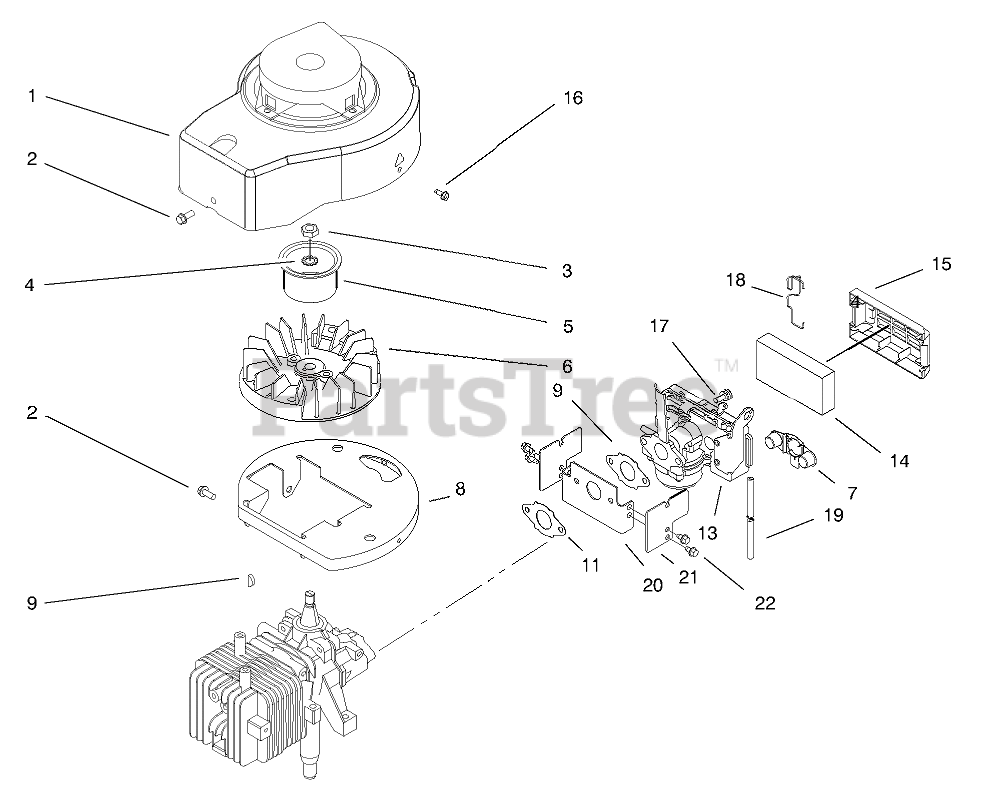

SHROUD, CRANKCASE & CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 93-4304

SHROUD
(Superseded to 107-4605)

$

$

Not available

2

Toro 614702

SCREW
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 7

0

3

Toro 130743

NUT

$3.49

$

In Stock, Qty 6

0

4

Toro 316959

WASHER-LOCK
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

5

Toro 614640

HUB-STARTER V

$40.99

$

Usually ships in 3-6 days

0

6

Toro 684743

FLYWHEEL(MACH) V

$

$

Not available

7

Toro 93-4320

SHIELD-FUEL V

$

$

Not available

8

Toro 93-1216

Base-Shroud
(Superseded to 93-1216-03)

$

$

Not available

9

Toro 607199

KEY

$5.49

$

In Stock, Qty 9

0

11

Toro 92-4948

GASKET-CARB VF

$1.99

$

In Stock, Qty 15

0

13

Toro 93-4331

CARBURETOR ASM

$278.99

$

In Stock, only 1 left!

0

14

Toro 609493

ELEMENT-AIR FIL VF
(Superseded to 107-4621)

$5.49

$

In Stock, only 1 left!

0

15

Toro 93-1231

COVER-AIR FIL. V

$

$

Not available

16

Toro 614699

SCREW VF

$1.99

$

In Stock, only 3 left!

0

17

Toro 609482

SCREW

$2.99

$

In Stock, Qty 8

0

18

Toro 610383

RETAINER-COVER, FILTER

$9.49

$

In Stock, Qty 20+

0

19

Toro 44-3174

HOSE-PRIMER

$5.99

$

In Stock, Qty 15

0

20

Toro 93-4315

SHIELD-CARB V INTL

$

$

Not available

21

Toro 93-4316

SHIELD- GOV. V INTL

$

$

Not available

22

Toro 613269

SCREW V

$2.49

$

Usually ships in 3-6 days

0
