20711 - Toro 53cm Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

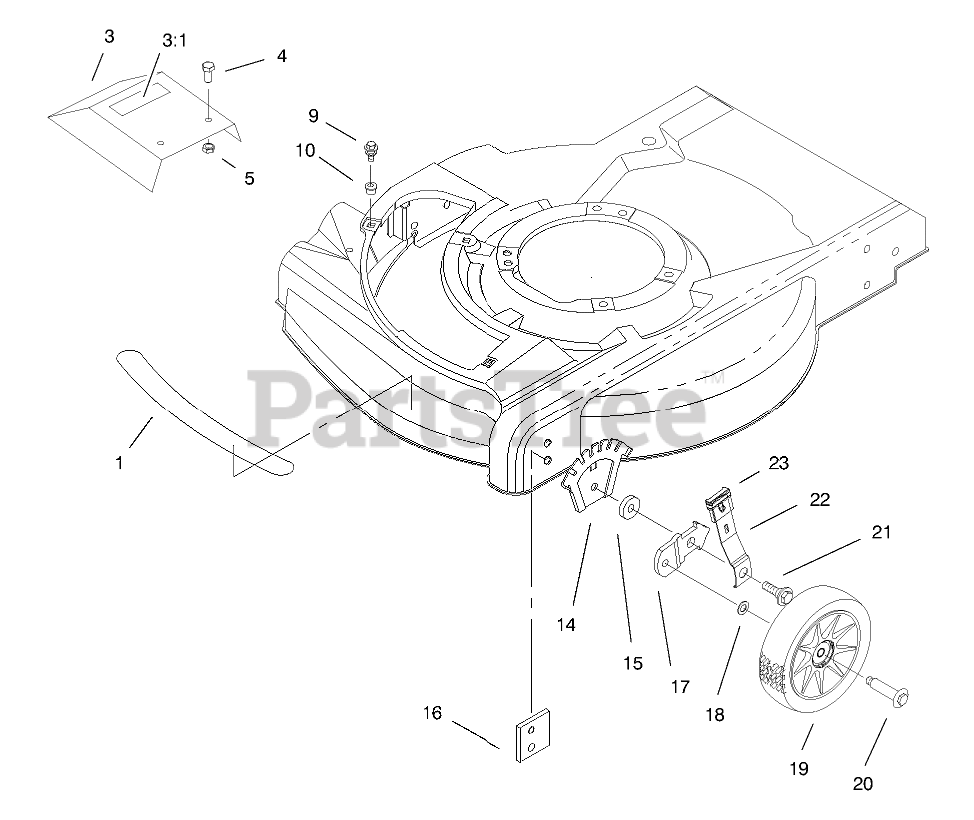

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 95-7055

DECAL - DECK

$

$

Not available

3

Toro 94-1697

GUARD PLATE ASM

$272.99

$

Usually ships in 3-6 days

0

3:1

Toro 93-6667

DECAL - WARNING

$

$

Not available

4

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

10

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

14

Toro 92-4881

Plate H.O.C.
(Superseded to 92-4881-03)

$29.99

$

Usually ships in 3-6 days

0

15

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

16

Toro 92-7731

PLATE-BAFFLE

$10.99

$

Usually ships in 3-6 days

0

17

Toro 95-7403

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 684776

WHEEL AND TIRE ASM

$37.99

$

In Stock, Qty 20+

0

20

Toro 92-1099

BOLT-SHOULDER

$8.49

$

In Stock, Qty 20+

0

21

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

22

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

23

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0
