20711 - Toro 53cm Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

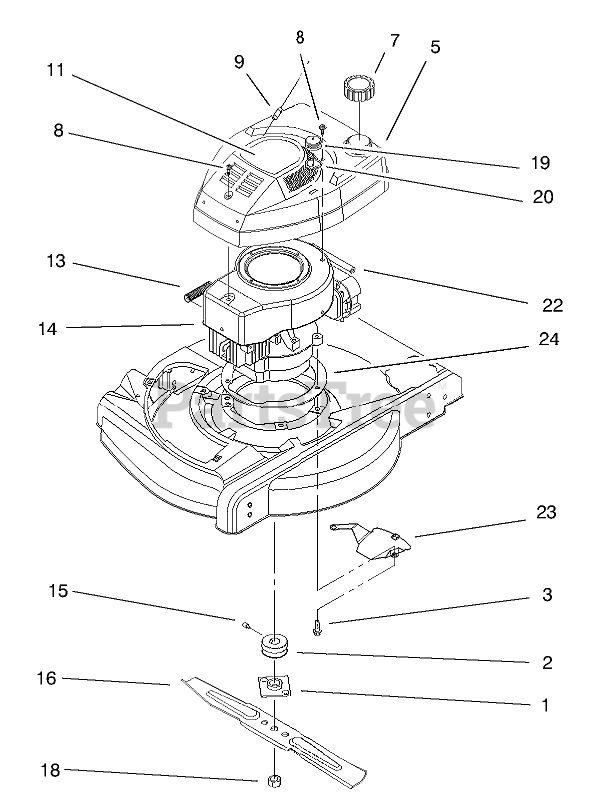

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 677525

PLATE AND COLLAR ASM

$51.99

$

In Stock, only 1 left!

0

2

Toro 92-6542

PULLEY

$93.99

$

In Stock, only 1 left!

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

5

Toro 92-6380

TANK & SHROUD ASM

$130.99

$

In Stock, only 1 left!

0

7

Toro 93-3660

ASM-Fuel/Oil Cap
(Superseded to 98-8344)

$24.99

$

In Stock, only 2 left!

0

8

Toro 93-4302

SCREW

$7.99

$

In Stock, only 2 left!

0

9

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

11

Toro 95-7058

DECAL - RECOIL,2 CYCLE

$

$

Not available

13

Toro 93-4306

SPRING-COMPRESSION

$6.49

$

In Stock, only 1 left!

0

14

ASM-Engine

$

$

Not available

15

Toro 613227

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

16

Toro 612543

Blade
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

18

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

19

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

20

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

22

Toro 612782

LINE-FUEL

$7.49

$

In Stock, Qty 9

0

23

Toro 93-4196

Shield-Grass
(Superseded to 93-4196-03)

$15.99

$

In Stock, only 3 left!

0

24

Toro 93-7152

PLATE - ENGINE

$104.99

$

Usually ships in 3-6 days

0
