20710 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) RECOIL STARTER ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

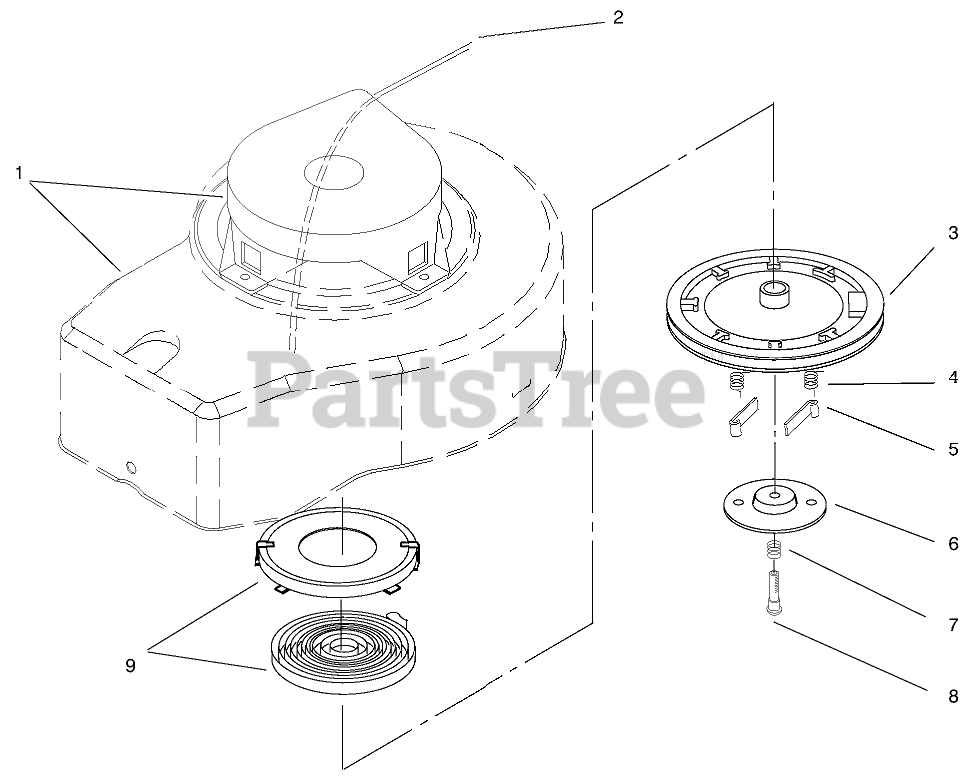

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title
1

Toro 93-4304

SHROUD
(Superseded to 107-4605)

$

$

Not available

2

Toro 93-4305

ROPE - GREY 88 5/8

$

$

Not available

3

Toro 92-4929

PULLEY ASSEMBLY

$60.99

$

Usually ships in 3-6 days

0

4

Toro 92-4930

SPRING - DOG

$12.99

$

In Stock, only 2 left!

0

5

$12.99

$

Usually ships in 3-6 days

0

6

Toro 92-9692

RETAINER
(Superseded to 100-9540)

$43.99

$

Usually ships in 3-6 days

0

7

Toro 92-4933

SCREW - CENTER

$

$

Not available

8

Toro 92-4934

SPRING - BRAKE

$

$

Not available

9

Toro 92-4935

SPRING KEEPER ASM

$

$

Not available

Toro 93-1236

Recoil Assembly (Incl. Ref. #2-9)

Note: Not illustrated

$

$

Not available
