20710 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

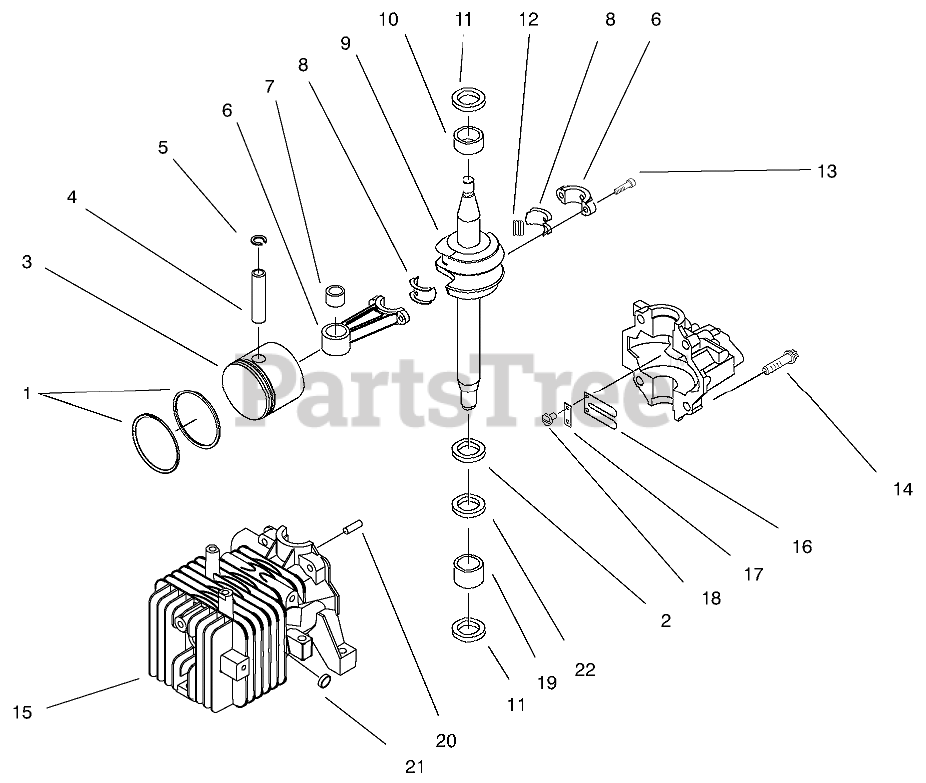

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 681737

F-RING SET

$

$

Not available

2

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

3

Toro 92-4925

Piston & Connecting Rod (Incl. Ref. #1-2, 4-8, 12, & 13)

$

$

Not available

4

Toro 606608

PIN-WRIST VF
(Superseded to 94-5774)

$9.99

$

Usually ships in 3-6 days

0

5

Toro 303712

RING-RETAINING

$2.99

$

In Stock, Qty 11

0

6

Toro 92-4921

Connecting Rod Assembly (Incl. Ref. #6-8, 12, & 13)

$206.99

$

In Stock, only 2 left!

0

7

Toro 92-4927

BEARING XEV

$33.99

$

Usually ships in 3-6 days

0

8

Toro 677982

LINER ASM

$40.99

$

In Stock, only 2 left!

0

9

Toro 94-5713

CRANKSHAFT V

$284.99

$

Usually ships in 3-6 days

0

10

Toro 681830

BEARING V

$35.99

$

Usually ships in 3-6 days

0

11

Toro 611396

SEAL-OIL

$5.99

$

In Stock, Qty 10

0

12

Toro 609754

Roller Strip
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

13

Toro 611393

SCREW-HSH

$19.99

$

Usually ships in 3-6 days

0

14

Toro 614636

SCREW-HWH V

$

$

Not available

16

Toro 602588

REED-CARBURETOR

$

$

Not available

17

Toro 602587

PLATE-BACKUP, REED

$2.99

$

Usually ships in 3-6 days

0

18

Toro 612872

SCREW-HH

$2.49

$

In Stock, Qty 5

0

19

Toro 681831

BEARING V

$23.99

$

In Stock, only 1 left!

0

20

Toro 609629

DOWEL XEV

$

$

Not available

21

Toro 609123

PLUG-CORE VF

$2.99

$

Usually ships in 3-6 days

0

22

Toro 252-80

WASHER-THRUST

$8.99

$

In Stock, Qty 9

0
