20709 - Toro 53cm Walk-Behind Mower (SN: 099000001 - 099999999) (1999) CARBURETOR ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

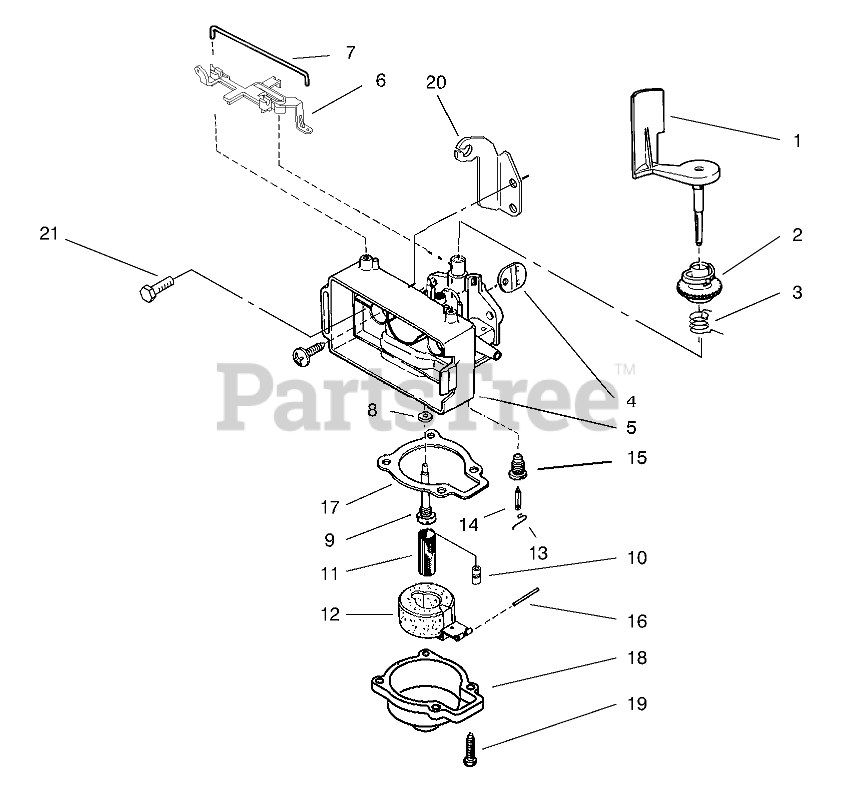

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 92-6376

Air Vane&shaft
(Superseded to 104-4430)

$11.99

$

In Stock, Qty 18

0

2

Tecumseh 610834

COLLAR-ADJUST, AIRVANE
(Superseded to 610851B)

$

$

Not available

3

Toro 92-4944

SPRING-GOV V

$8.99

$

In Stock, only 1 left!

0

4

Toro 92-6373

DISC-THRO. V

$4.99

$

In Stock, only 1 left!

0

5

Toro 93-4324

CARB. BODY V

$

$

Not available

6

Toro 93-1225

LEVER-ADJ. VF

$2.49

$

In Stock, Qty 14

0

7

Tecumseh 610165

RETAINER
(Superseded to 610164)

$

$

Currently unavailable

8

Toro 612383

WASHER

$1.99

$

In Stock, only 4 left!

0

9

Toro 92-6371

NOZZLE VF

$

$

Not available

10

Toro 92-6370

JET-MAIN VF

$13.99

$

In Stock, only 2 left!

0

11

Tecumseh 611071

FILTER-FUEL VS

$

$

Not available

12

Toro 678113

FLOAT & ARM ASM

$

$

Not available

13

Toro 603145

See Supercession: 92-9697
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 10

0

14

Toro 678278

ASM-Float
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 10

0

15

Toro 92-6372

ASM-Seat
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 10

0

16

Toro 92-6389

PIN-STRAIGHT

$5.49

$

In Stock, only 1 left!

0

17

Toro 602850

See Supercession: 98-1362
(Superseded to 98-1362)

$2.99

$

In Stock, Qty 20+

0

18

Toro 92-9691

CHAMBER-FLOAT

$37.99

$

Usually ships in 3-6 days

0

19

Toro 608850

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

20

Toro 92-4949

BRKT-THRO.CONT V

$5.99

$

Usually ships in 3-6 days

0

21

Toro 613269

SCREW V

$1.99

$

Usually ships in 3-6 days

0
