20705x51B - Murray 20" Walk-Behind Mower (1998) Handle Assembly Parts Diagram

20" Walk-Behind Mower

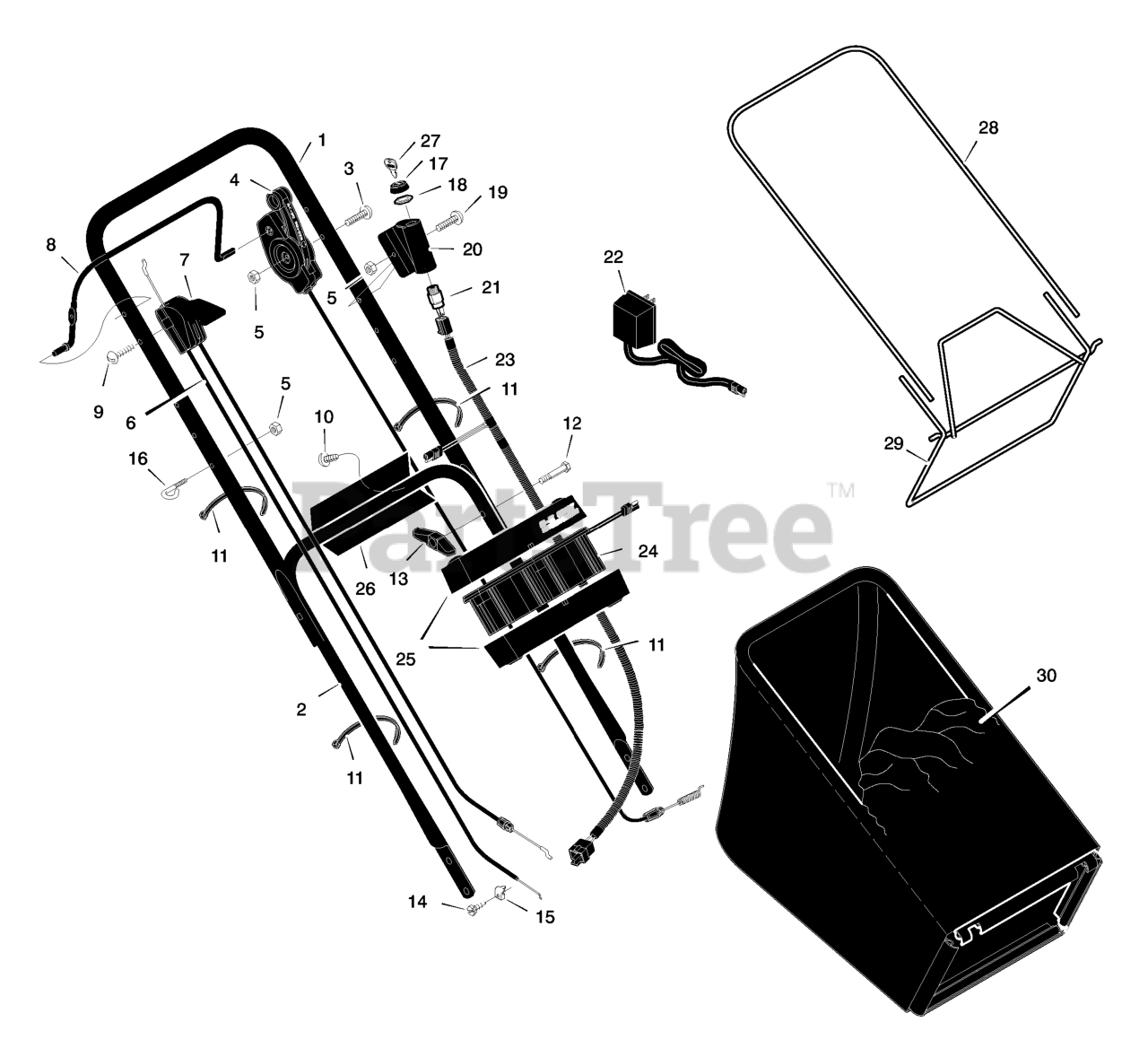

Handle Assembly Parts Diagram

  • Title

1

Murray 671918E701

Handle, Upper (Gray)

$11.99

$

Usually ships in 2-12 days

0

2

Murray 671940E701MA

Handle, Lower (Gray)

$

$

Not available

3

Murray 03X144

Bolt

$

$

Not available

4

Murray 672067MA

Control, Drive

$51.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672130MA

Cable, Stop

$30.99

$

Usually ships in 2-12 days

0

7

Murray 672144

Throttle Control

$6.99

$

Usually ships in 2-12 days

0

8

Murray 671922E245

Engine Stop Lever

$

$

Not available

9

Murray 03X144

Screw

$

$

Not available

10

UNKNOWN

$

$

Not available

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

15

Murray 042294

Clamp

$

$

Not available

16

Murray 043956MA

GUIDE, ROPE

$

$

Not available

17

Murray 091488

Cap
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

18

Murray 091489MA

Nut
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

19

Murray 03X136MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

20

Murray 671916MA

Cover, Ignition

$1.99

$

Usually ships in 2-12 days

0

21

Murray 776011MA

Switch Ignition & Key

$20.99

$

Usually ships in 2-12 days

0

22

Murray 671991MA

Charger, Battery

$66.99

$

Usually ships in 2-12 days

0

23

Murray 250X72MA

Harness, Wiring

$36.99

$

Usually ships in 2-12 days

0

24

Murray 776014MA

Battery

$55.99

$

Usually ships in 2-12 days

0

25

Murray 776013

Case, Battery

$

$

Currently unavailable

26

Murray 671959

Bracket, Battery

$

$

Currently unavailable

27

Murray 020729

Key, Ignition

$5.49

$

In Stock, Qty 11

0

28

Murray 071592MA

Frame, Top

$

$

Not available

29

Murray 672068

Frame Assembly

$

$

Currently unavailable

30

Murray 672069

Bag, Cloth

$

$

Currently unavailable
