20705 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

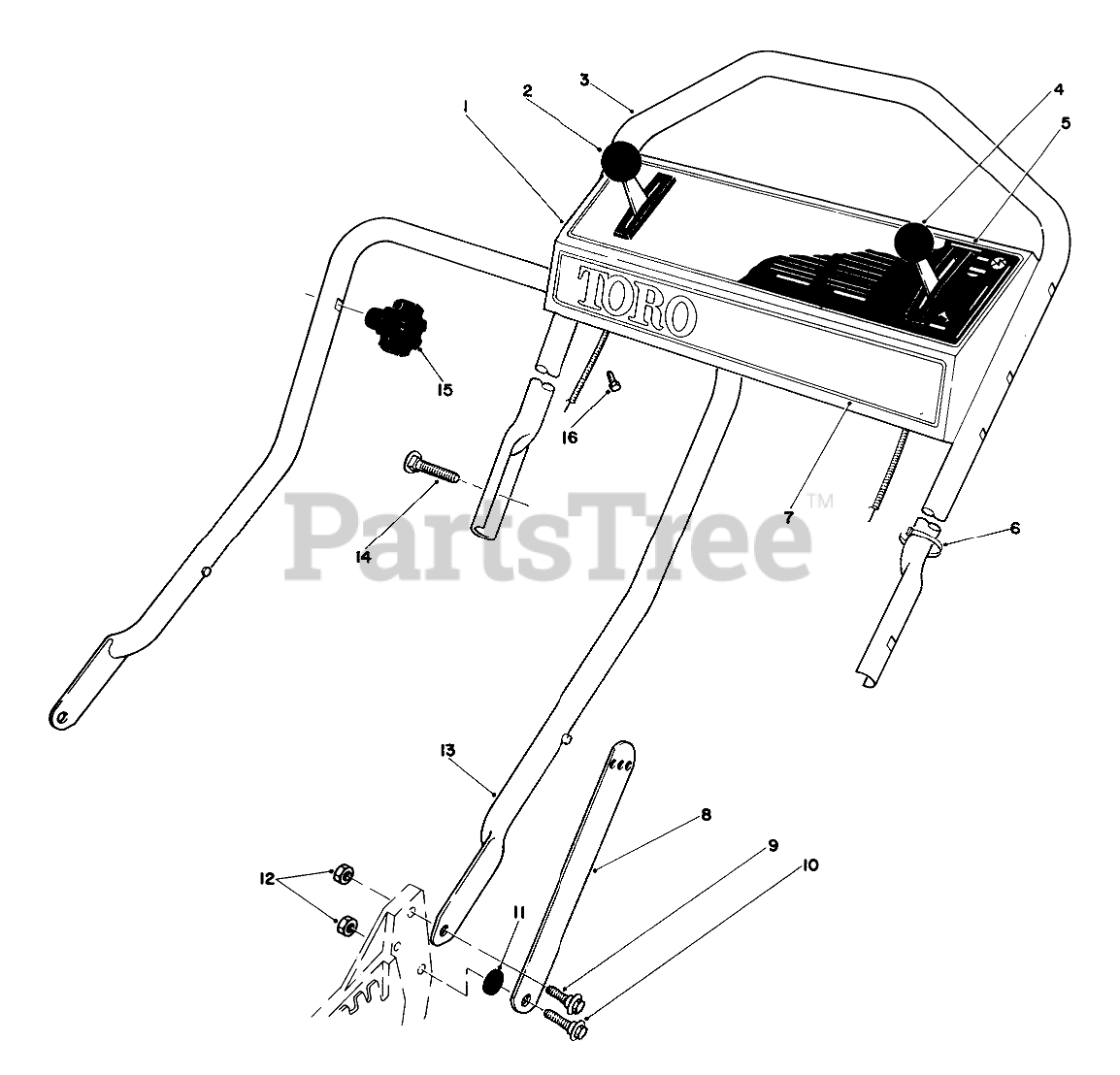

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-5149

Panel-Control (Incl. Ref. #5)

$

$

Not available

2

Toro 46-5430

GROUND SPEED CONTROL

$96.99

$

Usually ships in 3-6 days

0

3

Toro 46-5410

UPPER HANDLE

$

$

Not available

4

Toro 46-6010

SERVICE THROTTLE CONTRO

$72.99

$

Usually ships in 3-6 days

0

5

Toro 46-9250

Decal-Instruction Panel

$

$

Not available

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Toro 46-7380

Decal-Toro
(Superseded to 66-1770)

$

$

Not available

8

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

9

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

10

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

13

Toro 43-1360

Handle-Lower
(Superseded to 43-1361)

$

$

Not available

14

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

15

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

16

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
