20705 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

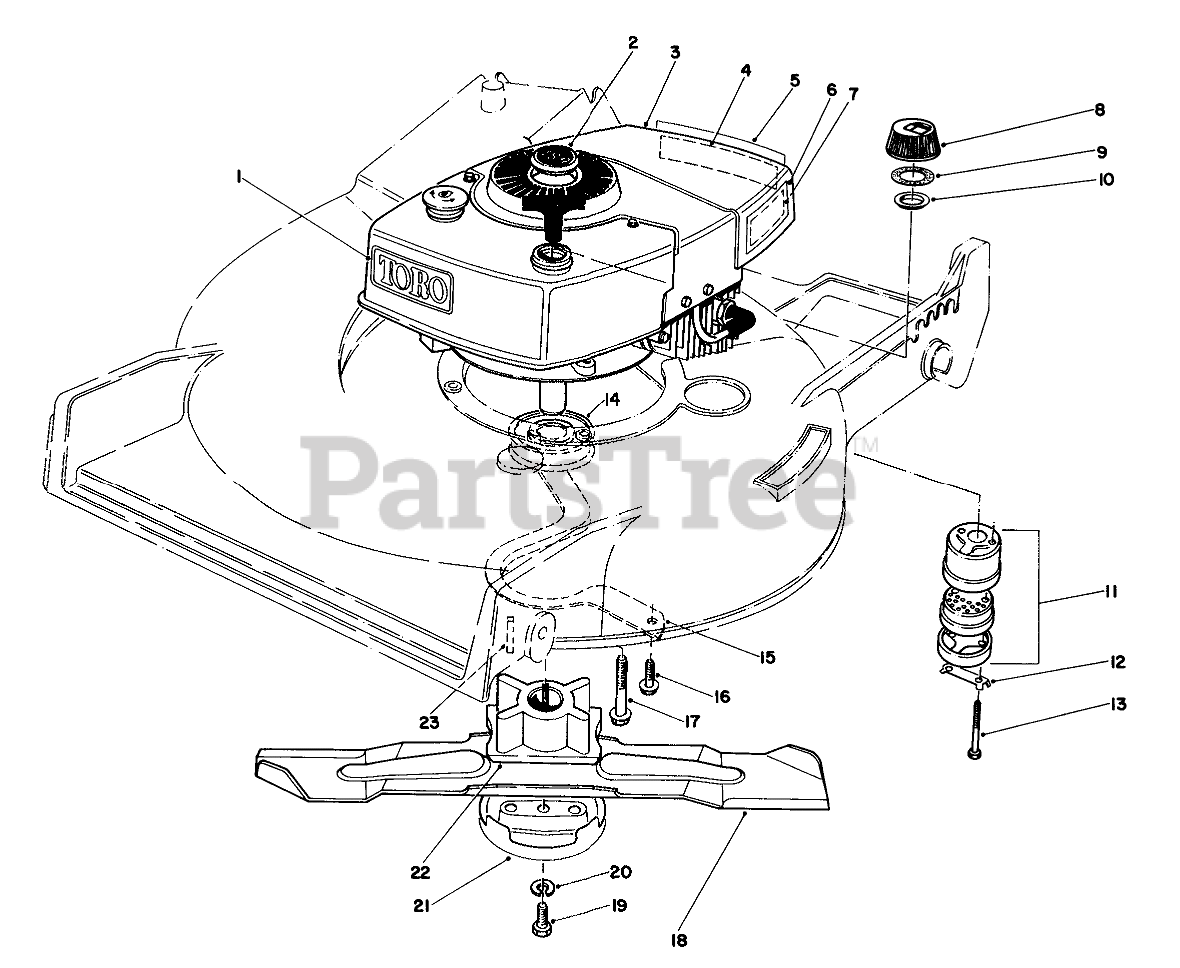

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 38-1481

Plug Button

$

$

Not available

3

Toro 221-742

Engine

$

$

Currently unavailable

4

Toro 40-2950

Decal Maintenance

$

$

Not available

5

Toro 46-9310

Decal-Primer Bulb

$

$

Not available

6

Toro 40-2440

Decal-Maintenance

$

$

Not available

7

Toro 46-9000

Decal-Maintenance

$

$

Not available

8

Toro 27-7872

Gas Cap (Incl. Ref. #9 & 10)
(Superseded to 42-0682)

$

$

Not available

9

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

10

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

11

Toro 5-4769

Muffler Assembly (Incl. Ref. #12 & 13)

$62.99

$

Usually ships in 3-6 days

0

12

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

13

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

14

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

15

Toro 40-5720

BELT GUIDE

$

$

Not available

16

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

17

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

18

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

19

Toro 26-0670

SCREW-BLADE

$

$

Not available

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

21

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

22

Toro 46-3490

BLADE RETAINER(DEEP)

$109.99

$

In Stock, only 1 left!

0

23

Toro 7-0036

KEY-SQUARE

$

$

Not available

Toro 46-1930

Wrench
(Superseded to 62-6770)

Note: Not illustrated

$

$

Not available

Toro 46-9620

SPK PLUG WRENCH/HDLE

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0
