20700 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

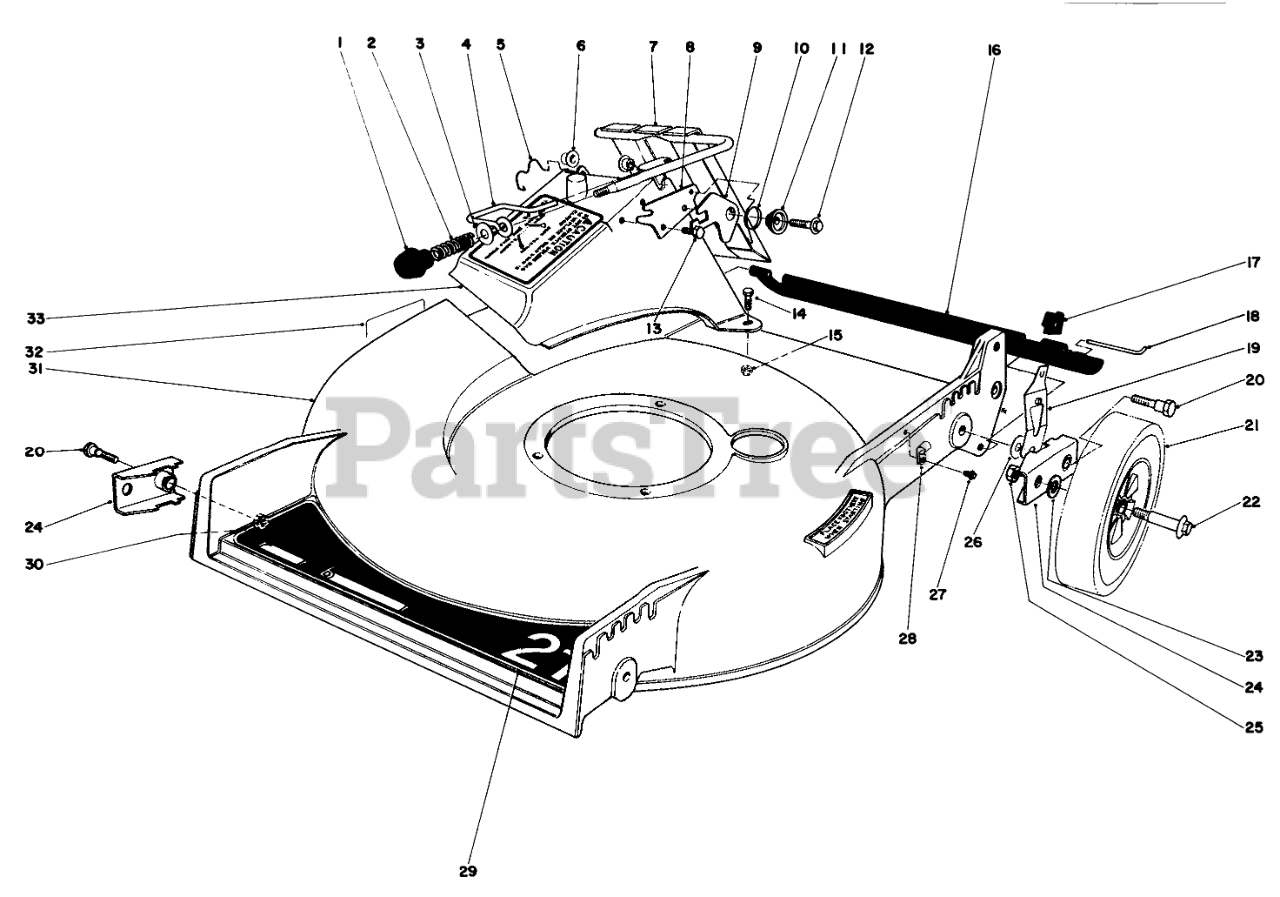

HOUSING ASSEMBLY Parts Diagram

  • Title
1

$33.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 33-4830

DOOR RETAINER

$

$

Not available

6

Toro 23-0880

BUSHING-NYLON

$

$

Not available

7

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

8

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

9

Toro 42-4010

SAFETY LATCH

$

$

Not available

10

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

11

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

12

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

13

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

14

Toro 321-7

SCREW-HH

$5.49

$

In Stock, Qty 11

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 29-9180

SHIELD - TRAILING

$67.99

$

Usually ships in 3-6 days

0

17

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

18

Toro 33-3203

Rod Shield
(Superseded to 47-4682)

$

$

Not available

19

Toro 44-0990

Spring Arm
(Superseded to 99-5260)

$

$

Not available

20

Toro 44-5270

PIVOT SCREW

$10.99

$

In Stock, Qty 7

0

21

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

22

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

23

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

24

Toro 42-2430

Pivot Arm
(Superseded to 47-2940)

$

$

Not available

25

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

26

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

27

Toro 32104-71

SCREW-HWH

$

$

Not available

28

Toro 2412-52

CLAMP-NYLON

$

$

Not available

29

Toro 44-0450

DECK DECAL

$

$

Not available

30

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

31

Toro 11-0169

Deck (Incl. Ref. #32)
(Superseded to 11-4069)

$1255.99

$

Usually ships in 3-6 days

0

32

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

33

Toro 36-1350

DISCHARGE CHUTE B

$416.99

$

Usually ships in 3-6 days

0

Toro 8-9929

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
