20700 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

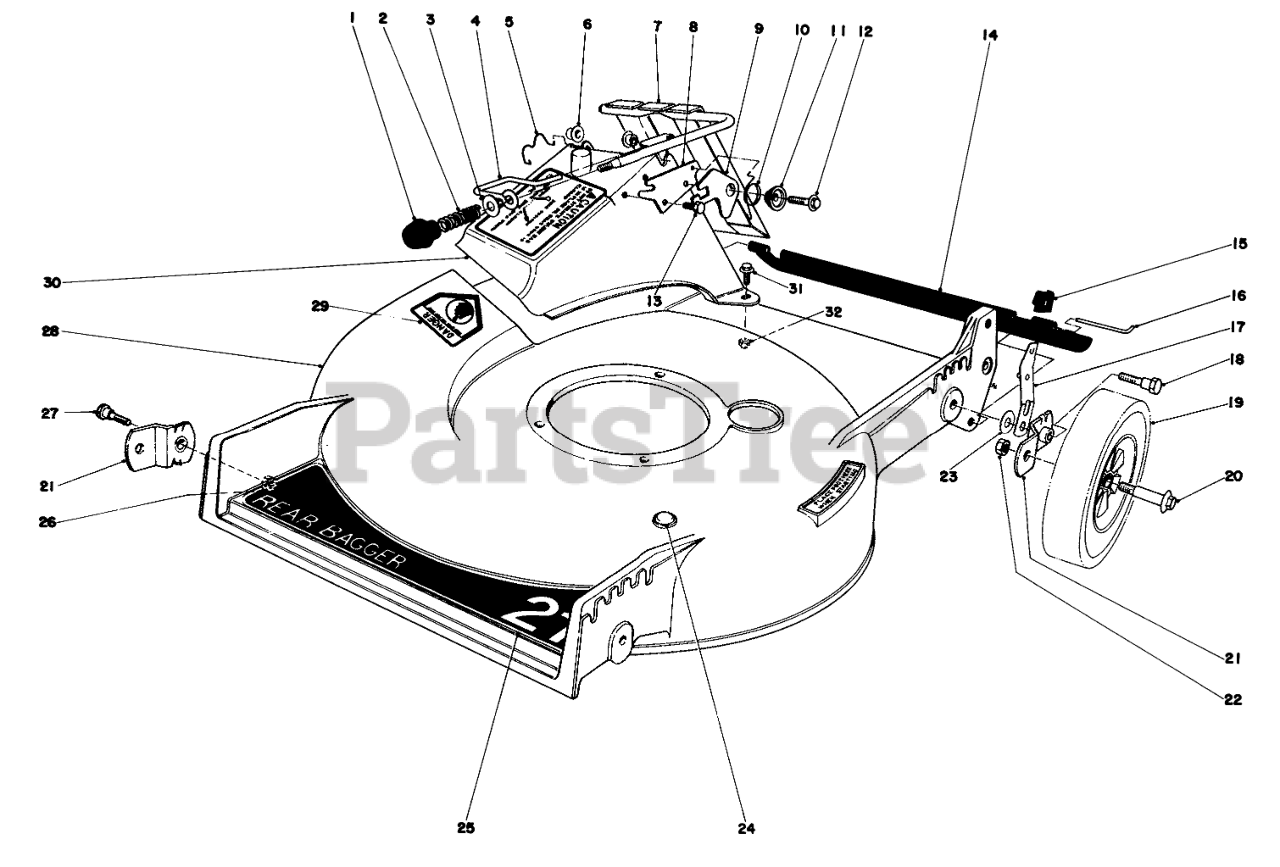

HOUSING ASSEMBLY Parts Diagram

  • Title
1

$33.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 33-4830

DOOR RETAINER

$

$

Not available

6

Toro 23-0880

BUSHING-NYLON

$

$

Not available

7

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

8

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

9

Toro 42-4010

SAFETY LATCH

$

$

Not available

10

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

11

Toro 23-1180

Latch Spacer

$

$

Not available

12

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

13

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

14

Toro 29-9180

SHIELD - TRAILING

$67.99

$

Usually ships in 3-6 days

0

15

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

16

Toro 33-3203

Rod Shield
(Superseded to 47-4682)

$

$

Not available

17

Toro 33-4850

SPRING ARM ASM (R&S)

$

$

Not available

18

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

19

Toro 33-5600

WHEEL & TIRE ASM

$

$

Not available

20

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

21

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM B

Note: Not illustrated

$

$

Not available

22

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

23

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

24

$

$

Not available

25

Toro 40-2250

Decal-Deck
(Superseded to 44-0450)

$

$

Not available

26

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

27

Toro 25-3440

PIVOT SCREW

$

$

Not available

28

Toro 11-0169

Deck
(Superseded to 11-4069)

$1255.99

$

Usually ships in 3-6 days

0

29

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

30

Toro 36-1350

DISCHARGE CHUTE B

$416.99

$

Usually ships in 3-6 days

0

31

Toro 321-7

SCREW-HH

$5.49

$

In Stock, Qty 11

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

Toro 8-9929

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
