20700 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE TECUMSEH MODEL NO. TNT 100-10070D Parts Diagram

Walk-Behind Mower

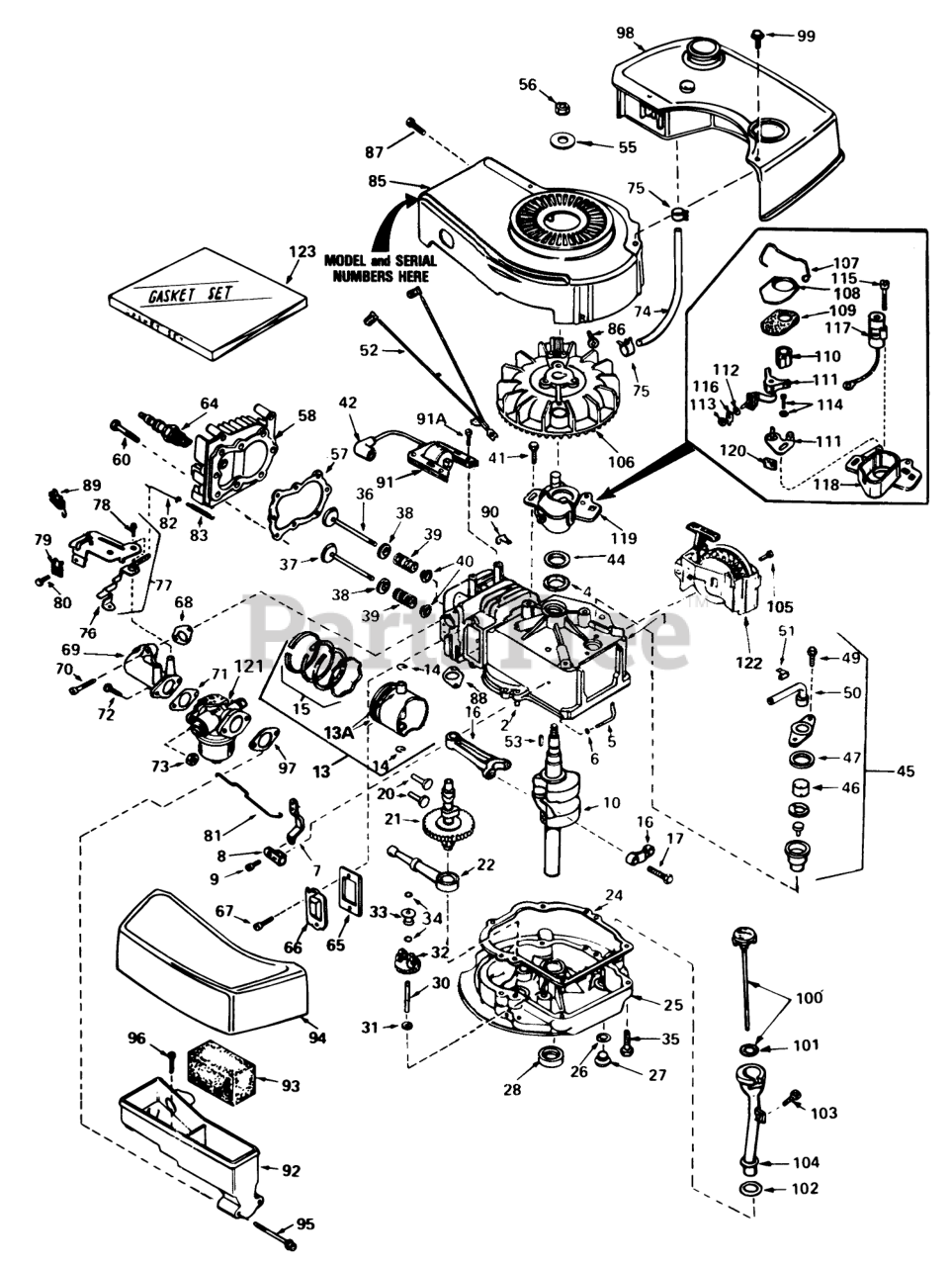

ENGINE TECUMSEH MODEL NO. TNT 100-10070D Parts Diagram

  • Title

1

Tecumseh 34429

Cylinder Assy. (Incl. Ref. #2, 4 & 105)
(Superseded to 34429A)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 30589

Rod, Governor (Incl. Ref. #6)

$5.49

$

In Stock, only 1 left!

0

6

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

7

Tecumseh 32651

Governor Lever

$

$

Not available

8

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

9

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

10

Tecumseh 34430

Crankshaft
(Superseded to 37449)

$

$

Not available

13

Tecumseh 34520

Piston, Pin & Ring Assy. (Std.)(Incl. Ref. #13A, 14 & 15)
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

13

Tecumseh 34521

Piston, Pin & Ring Assy. (.010 oversize)(Incl.Ref. #13A, 14& 15)
(Superseded to 35545A)

$

$

Not available

13

Tecumseh 34522

Piston Pin & Ring Assy. (Incl. Ref. #14 & 15) (.020 Oversize)
(Superseded to 35546)

$

$

Not available

13A

Tecumseh 32603B

Piston & Pin Assy. (Std.) (Inc. #14)
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

13A

Tecumseh 32604B

Piston & Pin Assy. (.010 oversize)(Incl. Ref. #14)
(Superseded to 35545A)

$

$

Not available

13A

Tecumseh 32605B

Piston & Pin Assy. (.020 oversize)(Incl. Ref. #14)
(Superseded to 35546)

$

$

Not available

14

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

15

Tecumseh 32606

Ring Set Piston (Std.)
(Superseded to 34854)

$

$

Not available

15

Tecumseh 32607

Ring Set Piston (.010 Oversize)
(Superseded to 34855)

$

$

Not available

15

Tecumseh 32608

Ring Set Piston (.020 Oversize)
(Superseded to 34856)

$

$

Not available

16

Tecumseh 30963B

Rod Assy., Connecting (Incl. Ref. #11)

$29.99

$

Usually ships in 3-12 days

0

17

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

20

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

21

Tecumseh 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

22

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Indicates items included in Gasket Set part no. 33906A

$2.99

$

In Stock, only 2 left!

0

25

Tecumseh 30594B

Flange Assy., Mounting (Incl. Ref. #26 thru 30)
(Superseded to 37644)

$81.99

$

Usually ships in 3-12 days

0

26

Tecumseh 28833

Gasket-Oil Drain

Note: Indicates items included in Gasket Set part no. 33906A

$1.99

$

In Stock, only 1 left!

0

27

Tecumseh 27244

Plug Oil Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

28

Tecumseh 26208

Seal Oil

$8.49

$

In Stock, only 1 left!

0

30

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 3 left!

0

31

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 30591

Gear Assy., Governor (Incl. Ref . #31 )

$13.99

$

In Stock, only 1 left!

0

33

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

34

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

35

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

36

Tecumseh 29314A

Valve Intake (Std.)(Incl. #38, 39 & 40)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

36

Tecumseh 29315B

Valve Intake (Incl. Ref. #38 40)(1/32" Oversize)
(Superseded to 29315C)

$

$

Not available

37

Tecumseh 29313B

Valve, Exhaust (Std.) (Incl. #7, 8 & 9)
(Superseded to 29313C)

$

$

Not available

37

Tecumseh 29315B

Valve, Exhaust (1/32" oversize)(Incl. Ref. #38, 39 & 40)
(Superseded to 29315C)

$

$

Not available

38

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

39

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

40

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 3 left!

0

41

Tecumseh 650489

Screw

$

$

Not available

42

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

44

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

45

Tecumseh 34214A

Breather Assy. (Incl. Ref. #46 thru 51 )
(Superseded to 34214B)

$

$

Not available

46

Tecumseh 33734

Element-Breather

$1.99

$

In Stock, Qty 11

0

47

Tecumseh 33735

Gasket-Breather

Note: Indicates items included in Gasket Set part no. 33906A

$1.99

$

Usually ships in 3-12 days

0

49

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

50

Tecumseh 33886

Tube, Breaker

$

$

Not available

51

Tecumseh 33887

Clip, Breather

$3.99

$

In Stock, only 1 left!

0

52

Tecumseh 34432

Wire Ground

$3.49

$

Usually ships in 3-12 days

0

53

Tecumseh 610995

682488 LB GRASS HI-

$1.49

$

In Stock, only 4 left!

0

55

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

56

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

57

Tecumseh 33015

63573 GIL 42 SNWTHW
(Superseded to 33015A)

Note: Indicates items included in Gasket Set part no. 33906A

$11.99

$

Usually ships in 3-12 days

0

58

Tecumseh 34342

Head-Cylinder
(Superseded to 36476)

$32.99

$

Usually ships in 3-12 days

0

60

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

64

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 13

0

64

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 13

0

Toro Canada

NEEDS DESCRIPTION

$

$

Currently unavailable

65

Tecumseh 27234

Gasket-Breather
(Superseded to 27234A)

Note: Indicates items included in Gasket Set part no. 33906A

$5.99

$

In Stock, only 1 left!

0

66

Tecumseh 32755

Cover-Valve

$5.49

$

Usually ships in 3-12 days

0

67

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

68

Tecumseh 34690

Gasket-Intake
(Superseded to 34690A)

Note: Indicates items included in Gasket Set part no. 33906A

$4.49

$

In Stock, only 2 left!

0

69

Tecumseh 33004A

Pipe, Intake (Incl. Ref. #68)

$23.99

$

Usually ships in 3-12 days

0

70

Tecumseh 650451

Screw (1/4-20 x 1)

$1.99

$

In Stock, only 4 left!

0

71

Tecumseh 31688

Gasket-Carburetor
(Superseded to 31688A)

Note: Indicates items included in Gasket Set part no. 33906A

$2.49

$

In Stock, only 2 left!

0

72

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

73

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

74

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 9

0

75

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

76

Tecumseh 34310

Lever Control

$

$

Not available

77

Tecumseh 33889A

Control Assy., Speed (Incl. Ref. #76, 78 & 89)

$13.99

$

Usually ships in 3-12 days

0

78

Tecumseh 650804

Screw, Hex Washer Hd Shoulder Self-Tap

$3.49

$

In Stock, Qty 9

0

79

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

80

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

81

Tecumseh 34336

Link-Throttle
(Superseded to 34336A)

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 33151

Link Governor Spring

$1.99

$

In Stock, only 3 left!

0

83

Tecumseh 33890

Spring Governor

$1.99

$

In Stock, Qty 5

0

85

Tecumseh 33891A

Housing Blower
(Superseded to 33891B)

$

$

Not available

86

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

88

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Indicates items included in Gasket Set part no. 33906A

$1.49

$

In Stock, only 2 left!

0

89

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

90

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

91

Tecumseh 34431

Lamination
(Superseded to 730207)

$62.99

$

In Stock, only 2 left!

0

91A

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

92

Tecumseh 33895

Body Air Cleaner

$10.99

$

Usually ships in 3-12 days

0

93

Tecumseh 33896

Filer, Air

$4.49

$

In Stock, only 1 left!

0

94

Tecumseh 33897

Cove, Air Cleaner

$

$

Not available

95

Tecumseh 650762

Screw Fil Hd.

$5.49

$

Usually ships in 3-12 days

0

96

Tecumseh 650784

Screw, Hex Hd.

$1.99

$

In Stock, Qty 6

0

97

Tecumseh 33051

Gasket-Air Cleaner

Note: Indicates items included in Gasket Set part no. 33906A

$1.49

$

In Stock, Qty 9

0

98

Tecumseh 33904A

Tank, Fuel
(Superseded to 33904B)

$

$

Not available

99

Tecumseh 28763

Screw (10-32 x 35/64)

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 33894A

Dipstick, Oil (Incl. Ref. #101)(Twist Lock)
(Superseded to 36879)

$9.99

$

Usually ships in 3-12 days

0

101

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 1 left!

0

102

Tecumseh 34265

Gasket

$2.49

$

In Stock, only 1 left!

0

103

Tecumseh 650562

Screw (10-32 x 1/2)

$1.99

$

In Stock, Qty 9

0

104

Tecumseh 34380

Tube-Oil Fill

$

$

Not available

105

Tecumseh 650737

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, Qty 6

0

106

Tecumseh 611007

FIywheel
(Superseded to 611046A)

$94.99

$

Usually ships in 3-12 days

0

107

Tecumseh 30551

Spring Breaker Box

$

$

Not available

108

Tecumseh 610947

Cover-Dust

$3.99

$

Usually ships in 3-12 days

0

109

Tecumseh 610955

Gasket-Dust Cover

$

$

Not available

110

Tecumseh 30992

Cam-Breaker

$

$

Not available

111

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 1 left!

0

112

Tecumseh 610385

Washer

$

$

Not available

113

Tecumseh 610408

DECAL

$

$

Currently unavailable

114

Tecumseh 29181

Breaker Screw

$

$

Not available

115

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

116

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, Qty 5

0

117

Tecumseh 30548B

Condenser

$13.99

$

In Stock, Qty 9

0

118

Tecumseh 611008

Stator Plate
(Superseded to 611006)

$

$

Not available

119

Tecumseh 611006

Stator Assy. (Incl. Ref. #107, 111 thru 118 & 120)

$

$

Not available

120

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 4 left!

0

121

Tecumseh 632050

Carburetor (Incl. Ref. #71)
(Superseded to 632795A)

$109.99

$

In Stock, only 2 left!

0

122

Tecumseh 590450A

Starter, Side Mount
(Superseded to 590519)

$

$

Not available

123

Tecumseh 33906A

Gasket Set
(Superseded to 33906D)

$23.99

$

In Stock, only 1 left!

0
