20700 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

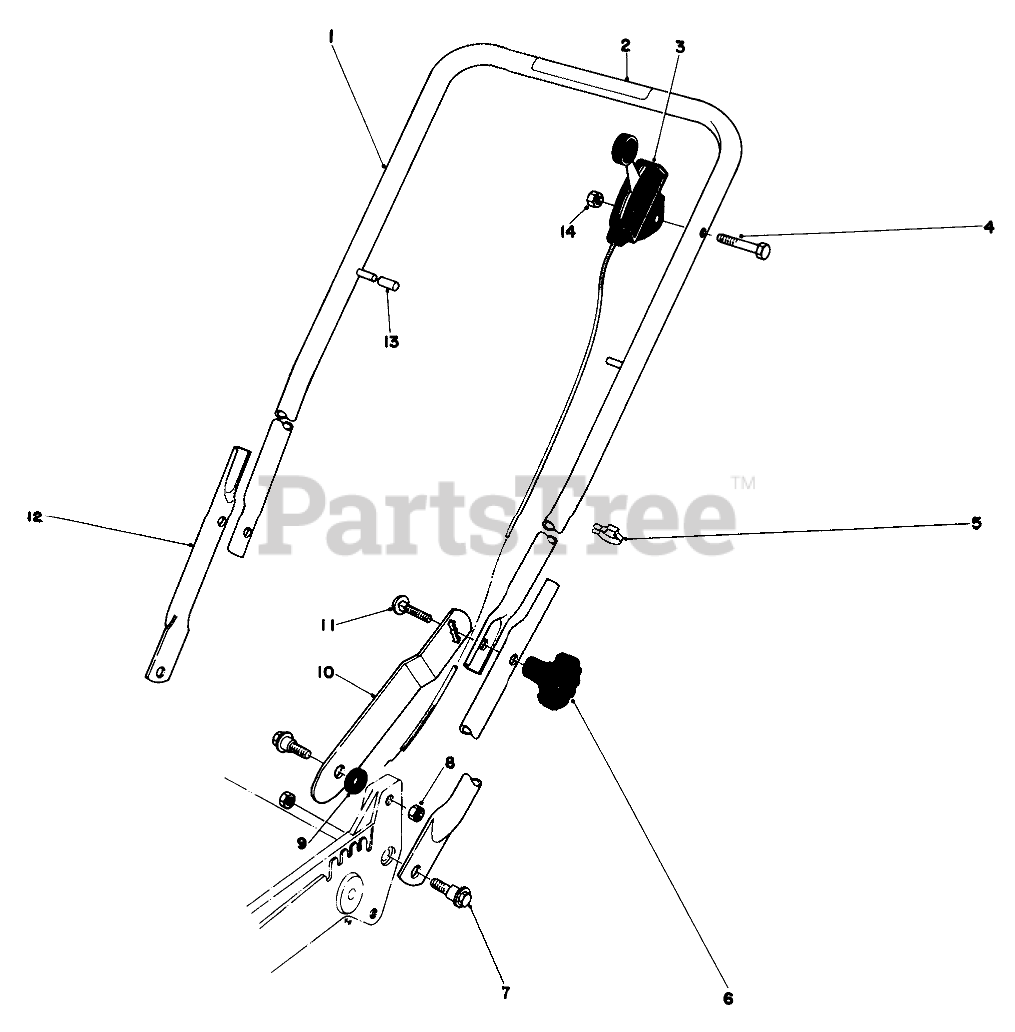

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 36-6850

Upper Handle
(Superseded to 98-2671)

$

$

Not available

2

Toro 29-6290

Decal

$

$

Not available

3

Toro 33-2531

Throttle Control
(Superseded to 46-6000)

$50.99

$

Usually ships in 3-6 days

0

4

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 218-465

BOWDEN CLIP

$

$

Not available

6

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

7

Toro 27-7212

Screw
(Superseded to 27-7211)

$5.49

$

In Stock, only 1 left!

0

8

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

9

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

10

Toro 36-6900

Handle Latch L.H.
(Superseded to 44-0590)

$43.99

$

Usually ships in 3-6 days

0

Toro 36-6890

Handle Latch R.H.
(Superseded to 44-0590)

$43.99

$

Usually ships in 3-6 days

0

11

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 6

0

12

Toro 29-9160

LOWER HANDLE

$

$

Not available

13

Toro 2410-49

CAP-VINYL
(Superseded to 42452)

$1.49

$

Usually ships in 3-6 days

0

14

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0
