20698 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

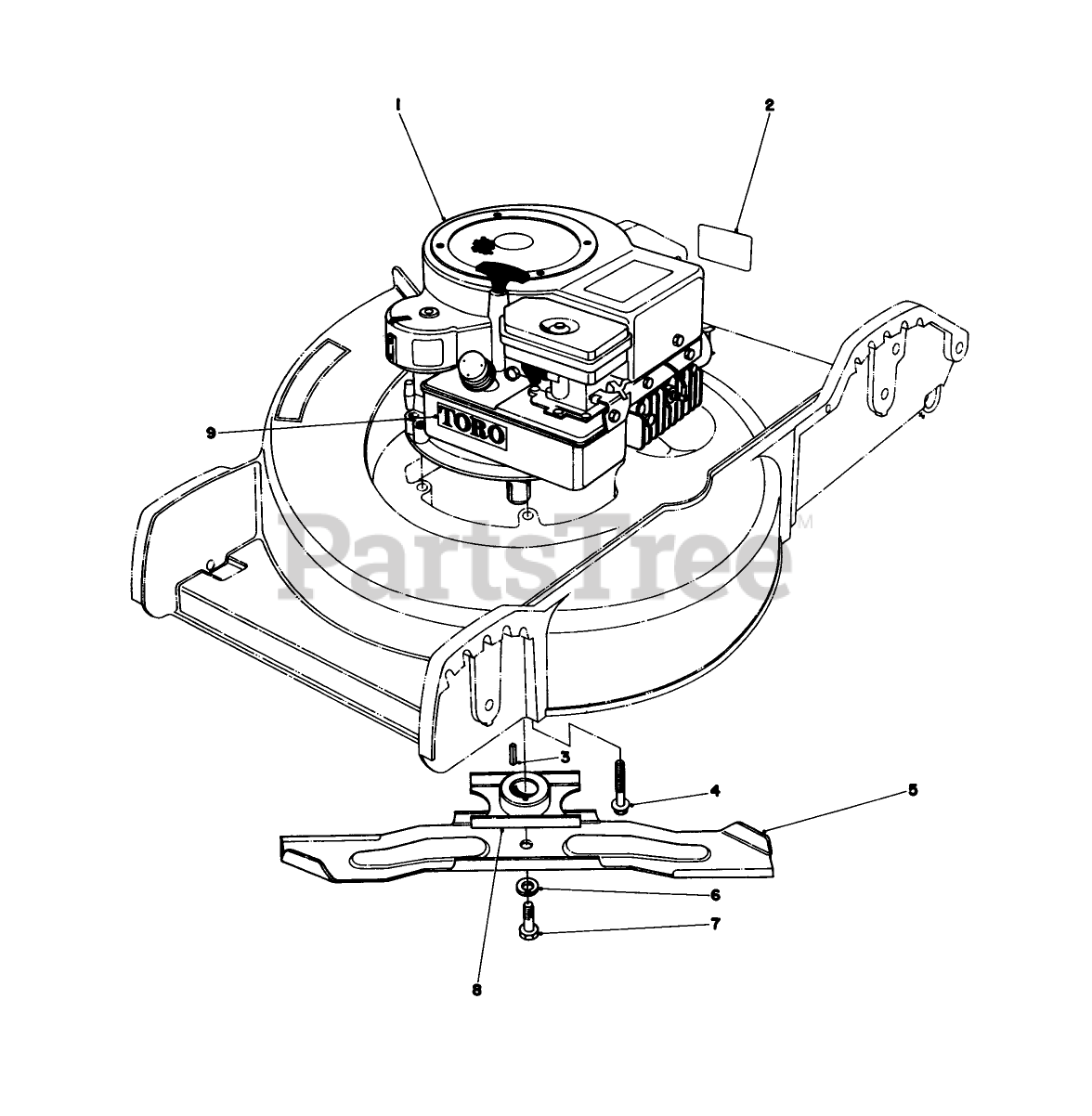

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 221-580

Engine

$

$

Currently unavailable

2

Toro 20-2710

Decal Maintenance

$

$

Not available

3

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

5

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

Usually ships in 3-6 days

0

6

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

7

Toro 3-5246

SPECIAL SCREW

$

$

Not available

8

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

9

Toro 26-7730

Decal Toro

$

$

Not available
