20696 - Toro Walk-Behind Mower (SN: 006000001 - 007999999) (1976) HOUSING ASSEMBLY (MODEL 20506 & 20696) Parts Diagram

Walk-Behind Mower

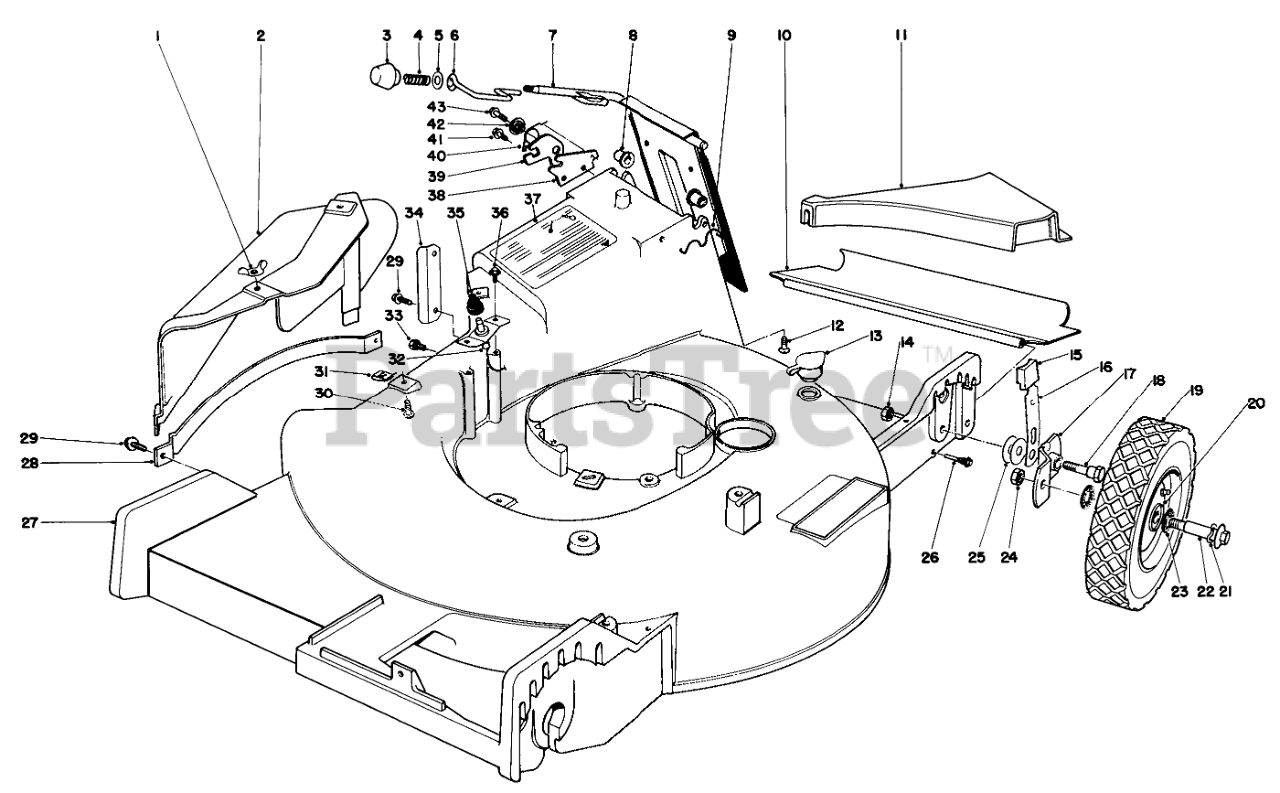

HOUSING ASSEMBLY (MODEL 20506 & 20696) Parts Diagram

  • Title

1

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

2

Toro 23-0180

DEFLECTOR

$144.99

$

Usually ships in 3-6 days

0

3

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

4

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

5

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

6

Toro 23-0940

DOOR LATCH

$

$

Not available

7

Toro 23-0990

Door Handle

$

$

Not available

8

Toro 23-0880

BUSHING-NYLON

$

$

Not available

9

Toro 23-0200

Door Retainer
(Superseded to 33-4830)

$

$

Not available

10

Toro 23-0560

REAR SAFETY SHIELD

$

$

Not available

11

Toro 23-0360

REAR INSERT

$

$

Not available

12

Toro 32144-17

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

13

Toro 6-4500

WASHOUT PLUG

$

$

Not available

14

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

15

Toro 8-4220

Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 20+

0

16

Toro 23-0400

SPRING ARM ASM

$

$

Not available

17

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM B

Note: Not illustrated

$

$

Not available

18

Toro 25-3440

PIVOT SCREW

$

$

Not available

19

Toro 26-2960

Wheel & Tire Assembly (Incl. Ref. #20)
(Superseded to 11-1309)

$124.99

$

Usually ships in 3-6 days

0

20

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

21

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

22

Toro 3-2652

Bolt

$

$

Not available

23

Toro 26-7500

FELT WASHER

$

$

Not available

24

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

25

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

26

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

27

Toro 6-2809

Housing

$

$

Currently unavailable

28

Toro 23-0210

Bar Safety

$

$

Not available

29

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

30

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

31

Toro 3290-380

NUT

$

$

Not available

32

Toro 23-0150

Deflector Switch (Incl. Ref. #35)(Model 20506)

$

$

Not available

Toro 25-1010

Deflector Switch (Incl. Ref. #35)(Model 20696)
(Superseded to 23-0150)

Note: Not illustrated

$

$

Not available

33

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

34

Toro 23-0140

Clip Retaining

$

$

Not available

35

Toro 12-4930

Boot Switch

$

$

Not available

36

Toro 32144-12

Screw

$

$

Not available

37

Toro 23-1280

Decal-Caution

$

$

Currently unavailable

38

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

39

Toro 23-1190

Latch Safety
(Superseded to 42-4010)

$

$

Not available

40

Toro 23-1200

TORSION SPRING

$

$

Not available

41

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

42

Toro 23-1180

Latch Spacer

$

$

Not available

43

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

Toro 26-9510

Replacement Stud Kit

Note: Not illustrated

$

$

Not available
