20696 - Toro Walk-Behind Mower (SN: 006000001 - 007999999) (1976) GRASS BAG ASSEMBLY (MODEL 20506 & 20696) Parts Diagram

Walk-Behind Mower

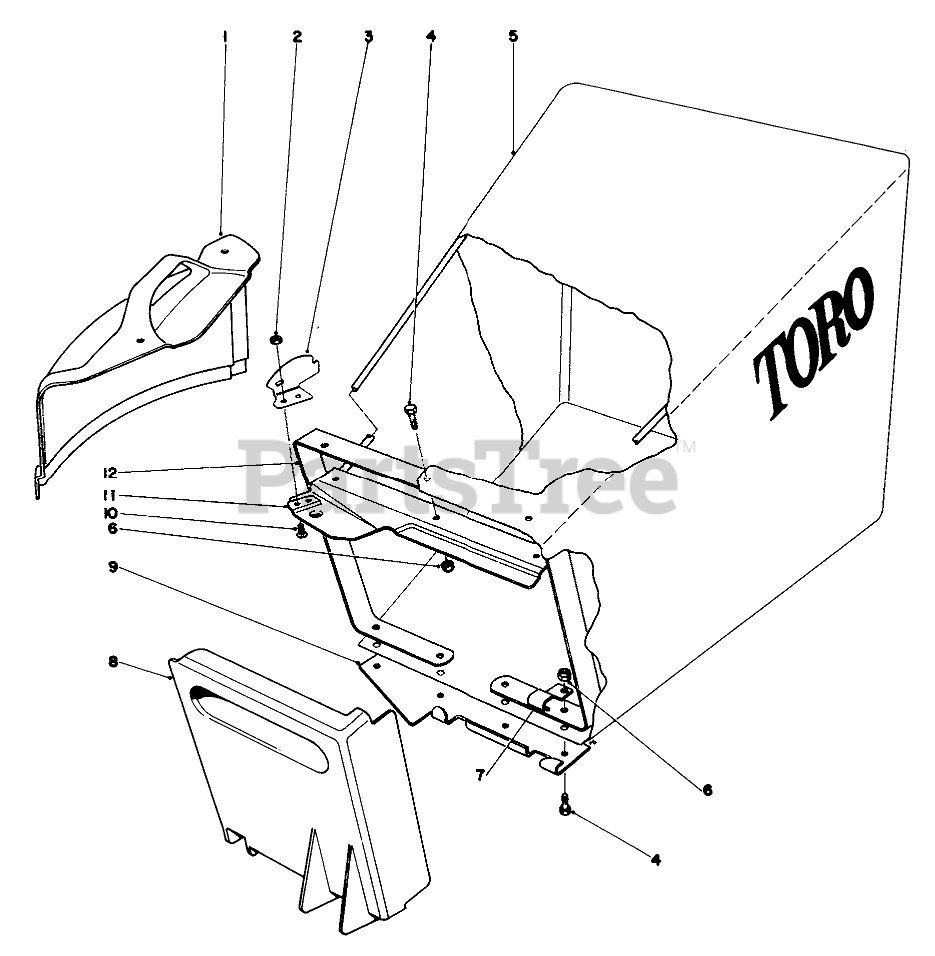

GRASS BAG ASSEMBLY (MODEL 20506 & 20696) Parts Diagram

  • Title

1

Toro 23-0170

Cover

$

$

Currently unavailable

2

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0

3

Toro 23-1060

Latch Bag

$

$

Not available

4

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

5

Toro 6-1389

REPLACMNT BAG 44-0530

$

$

Not available

6

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

7

Toro 23-5100

SUPPORT BRACKET

$

$

Not available

8

Toro 23-1140

BAG DOOR

$181.99

$

Usually ships in 3-6 days

0

9

Toro 23-1150

DOOR BRACKET

$

$

Not available

10

Toro 25-3120

Screw

$

$

Not available

11

Toro 25-3230

Bag Frame
(Superseded to 27-8170)

$

$

Not available

12

Toro 23-1110

LOWER BAG FRAME

$128.99

$

Usually ships in 3-6 days

0

Toro 6-5689

Grass Bagging Kit (Incl. Ref. 2 thru 12)
(Superseded to 6-7859)

Note: Not illustrated

$

$

Not available
