20696 - Toro Walk-Behind Mower (SN: 006000001 - 007999999) (1976) GEAR CASE ASSEMBLY (MODEL 20506 & 20696) Parts Diagram

Walk-Behind Mower

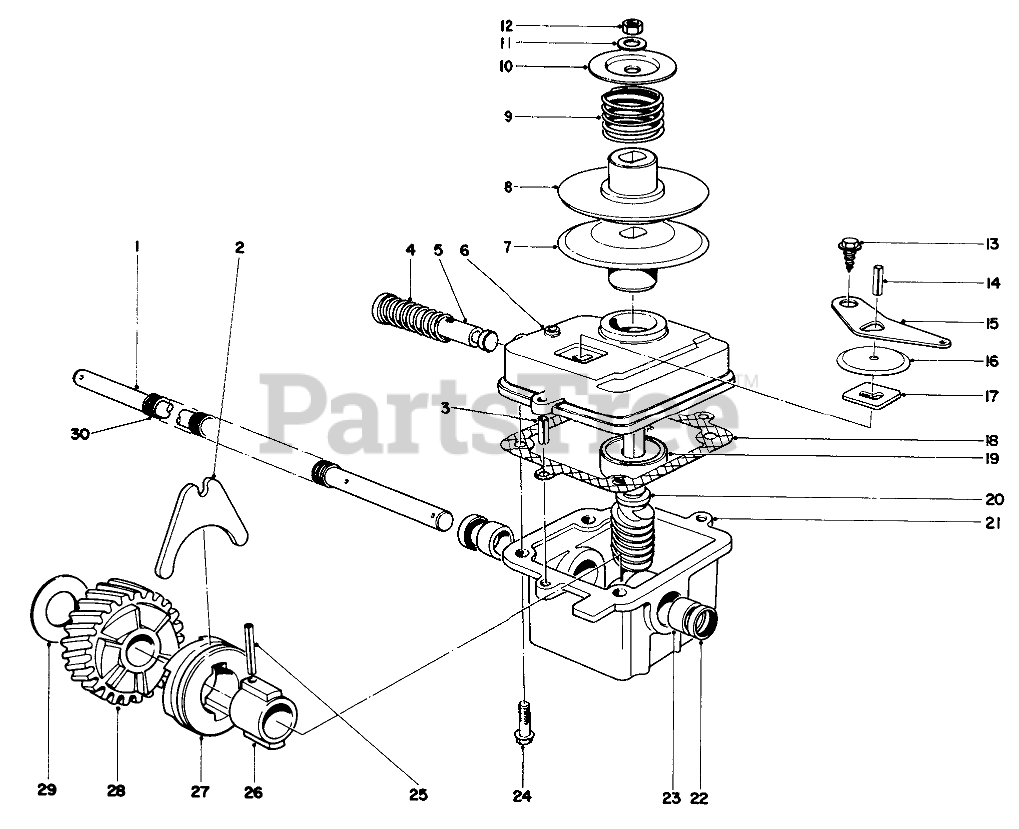

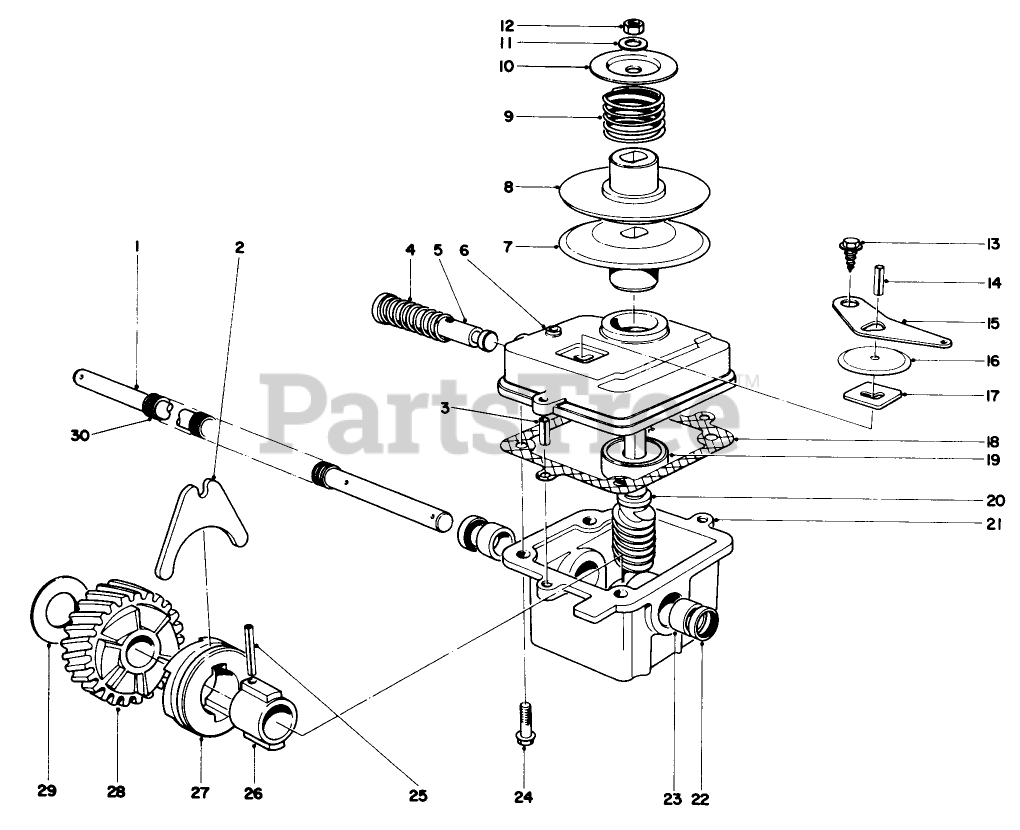

GEAR CASE ASSEMBLY (MODEL 20506 & 20696) Parts Diagram

  • Title

1

Toro 24-7740

Drive Shaft
(Superseded to 37-9440)

$

$

Not available

2

Toro 5-3247

SHIFTER FORK

$

$

Not available

3

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

4

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

5

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$46.99

$

Usually ships in 3-6 days

0

6

Toro 5-3283

GEAR CASE COVER

$

$

Not available

7

Toro 23-0290

LOWER PULLEY HALF

$

$

Not available

8

Toro 23-0300

UPPER PULLEY HALF

$

$

Not available

9

Toro 23-0230

COMPRESSION SPRING

$

$

Not available

10

Toro 23-0270

SPRING RETAINER

$

$

Not available

11

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

12

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

13

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-23

PIN-ROLL

$

$

Not available

15

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

16

Toro 3-2615

TRANS DUST COVER

$

$

Not available

17

Toro 3-0681

LATCH PLATE

$

$

Not available

18

Toro 3-0734

GASKET

$9.99

$

Usually ships in 3-6 days

0

19

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

20

Toro 23-0520

Shaft-Worm
(Superseded to 6-9969)

$249.99

$

Usually ships in 3-6 days

0

21

Toro 5-4459

Gear Case (Incl. Ref. #22 & 23)

$

$

Not available

22

Toro 253-86

Seal
(Superseded to 47-7260)

$8.99

$

In Stock, only 2 left!

0

23

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

24

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

25

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

26

Toro 3-0721

SLEEVE

$

$

Not available

27

Toro 19-5660

CLUTCH JAW

$46.99

$

Usually ships in 3-6 days

0

28

Toro 18-9740

Nut

$

$

Not available

29

Toro 3-0724

THRUST WASHER

$

$

Not available

30

Toro 24-8690

DRIVE SHAFT COVER

$

$

Not available

Toro 24-7730

Gear Case Assembly Complete (Incl. Item 1-29)

Note: Not illustrated

$

$

Not available
