20696 - Toro Walk-Behind Mower (SN: 006000001 - 007999999) (1976) FRONT WHEEL AND PIVOT ARM ASSEMBLY (MODEL 20506 & 20696) Parts Diagram

Walk-Behind Mower

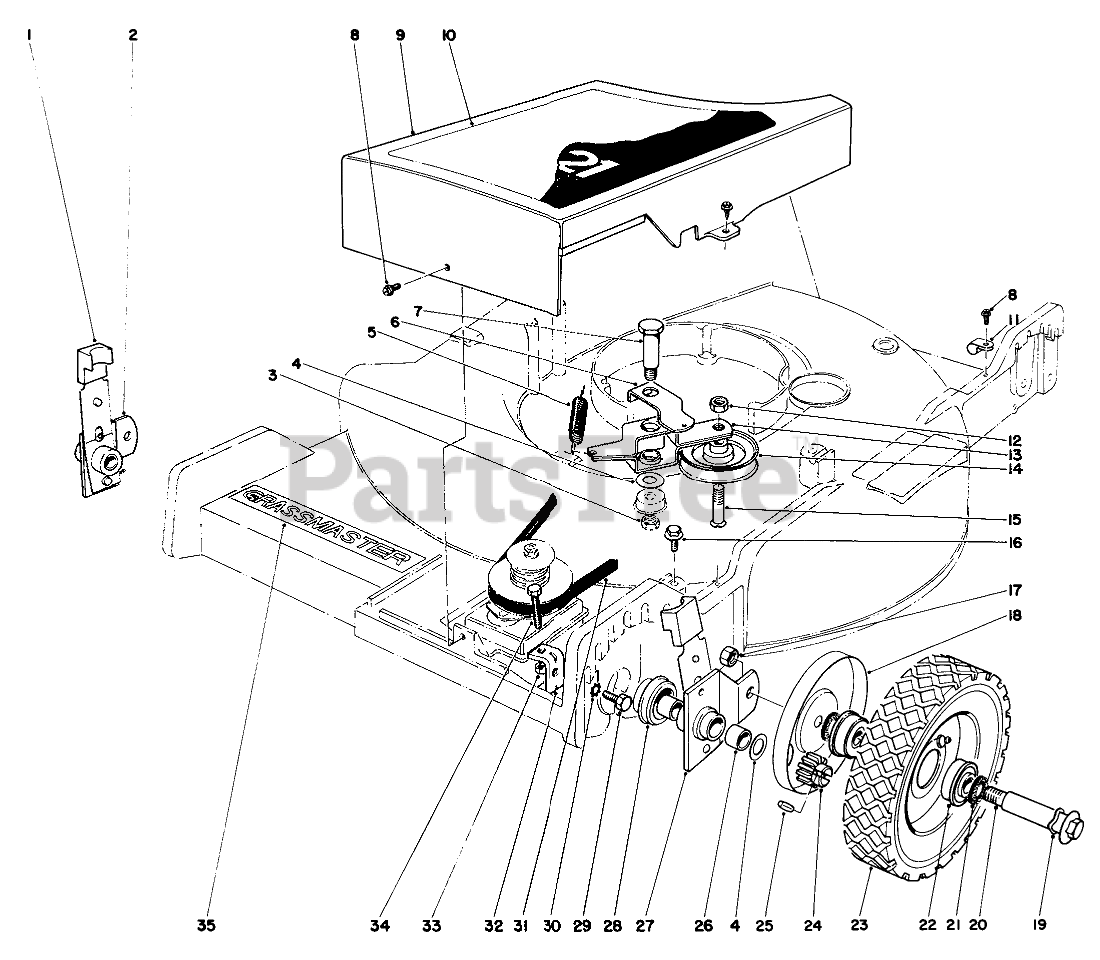

FRONT WHEEL AND PIVOT ARM ASSEMBLY (MODEL 20506 & 20696) Parts Diagram

  • Title
1

Toro 8-4220

Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 8

0

2

Toro 24-6040

Pivot Arm R.H. (Incl. Ref. #26)

$

$

Not available

3

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

4

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

5

Toro 23-0530

TENSION SPRING

$

$

Not available

6

Toro 23-0100

Idler Bracket Lever

$

$

Currently unavailable

7

Toro 23-0310

SCREW-SHOULDER, HH

$28.99

$

Usually ships in 3-6 days

0

8

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

9

Toro 23-0510

Belt Cover

$

$

Not available

10

Toro 23-0840

Decal Belt Cover

$

$

Currently unavailable

11

Toro 2412-52

CLAMP-NYLON

$

$

Not available

12

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

13

Toro 23-0440

Idler Bracket

$

$

Currently unavailable

14

Toro 23-0570

V-GROOVE IDLER PULLEY

$

$

Not available

15

Toro 23-0850

Screw Low Head

$

$

Currently unavailable

16

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

17

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 23-0280

WHEEL COVER

$

$

Not available

19

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

20

Toro 26-4430

WHEEL BOLT

$54.99

$

Usually ships in 3-6 days

0

21

Toro 26-7500

FELT WASHER

$

$

Not available

22

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

23

Toro 26-3010

Wheel & Tire Assembly (Incl. Ref. #22)
(Superseded to 11-1389)

$

$

Not available

24

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

25

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

26

Toro 256-206

BUSHING

$1.99

$

In Stock, only 2 left!

0

27

Toro 24-6050

Pivot Arm L.H. (Incl. Ref. #26)

$

$

Not available

28

Toro 23-0380

End Cap
(Superseded to 36-9040)

$11.99

$

In Stock, only 1 left!

0

29

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

31

Toro 23-0220

V-BELT

$27.99

$

Usually ships in 3-6 days

0

32

Toro 23-0540

Bracket

$

$

Currently unavailable

33

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

34

Toro 23-0640

Screw

$

$

Currently unavailable

35

Toro 23-0930

Decal Grassmaster

$

$

Currently unavailable
