20695 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

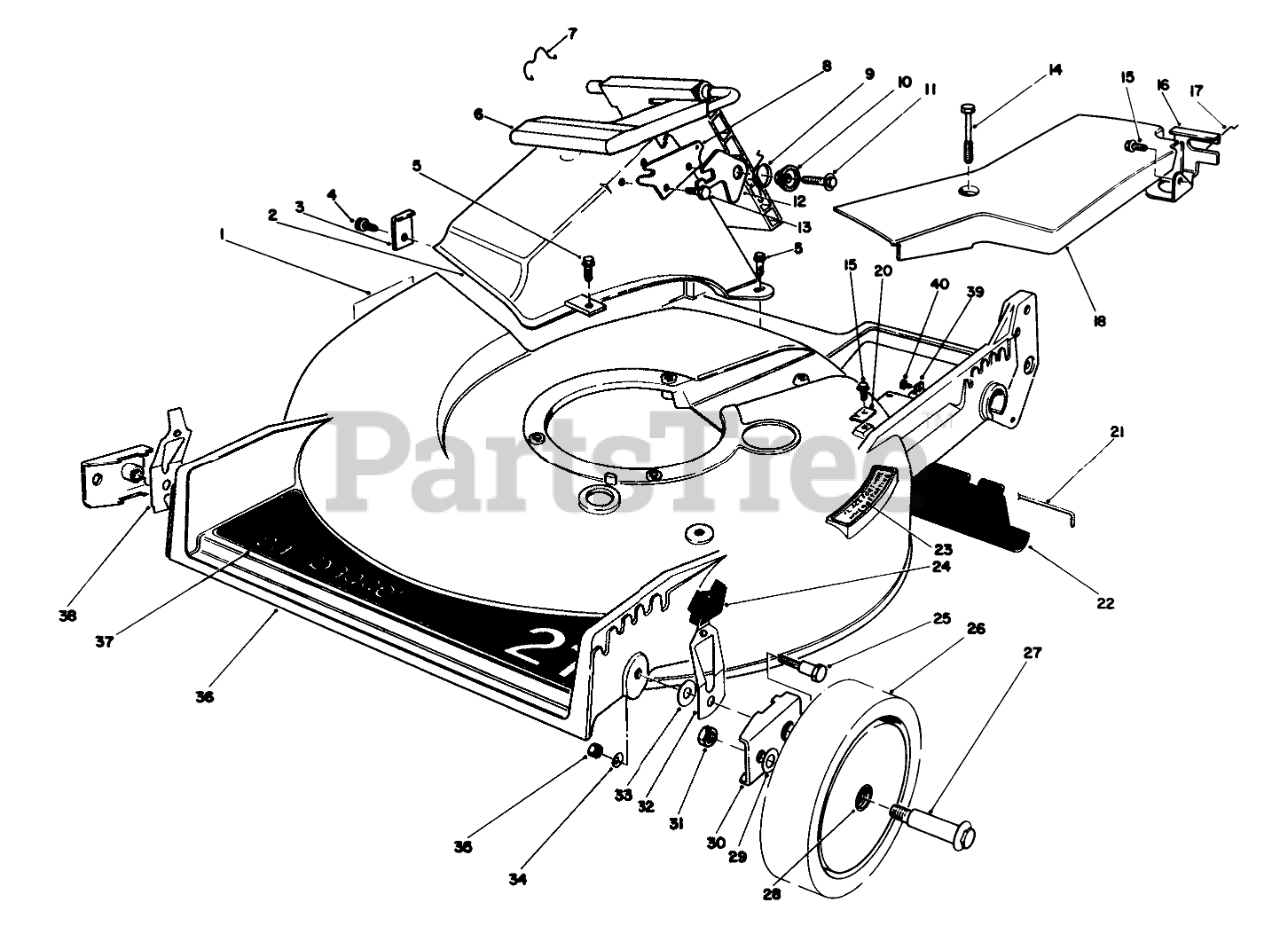

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 6

0

2

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$164.99

$

Usually ships in 3-6 days

0

3

Toro 47-6540

TUNNEL CLIP

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

5

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

6

Toro 51-0200

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

7

Toro 47-5840

DOOR RET SPRING

$

$

Not available

8

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

9

Toro 334860

Spring-Torsion

$

$

Currently unavailable

10

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

11

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

12

Toro 42-4010

SAFETY LATCH

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 62-3940

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

17

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

18

Toro 52-7402

Cover-Belt
(Superseded to 52-7404)

$71.99

$

Usually ships in 3-6 days

0

20

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

21

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

22

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

23

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

24

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

25

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 8

0

26

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #28)
(Superseded to 51-2751)

$30.99

$

In Stock, only 2 left!

0

27

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

28

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

29

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

30

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

31

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

32

Toro 52-7480

L. HP SPRING ARM ASM

$

$

Not available

33

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

34

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

36

Toro 11-4099

Housing (Incl. Ref. #1, 5 & 23)
(Superseded to 94-3707-01)

$

$

Not available

37

Toro 44-0450

DECK DECAL

$

$

Not available

38

Toro 52-7490

R HP SPRING ARM ASM

$

$

Not available

39

Toro 2412-83

CLAMP-CABLE

$

$

Not available

40

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0
