20692 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

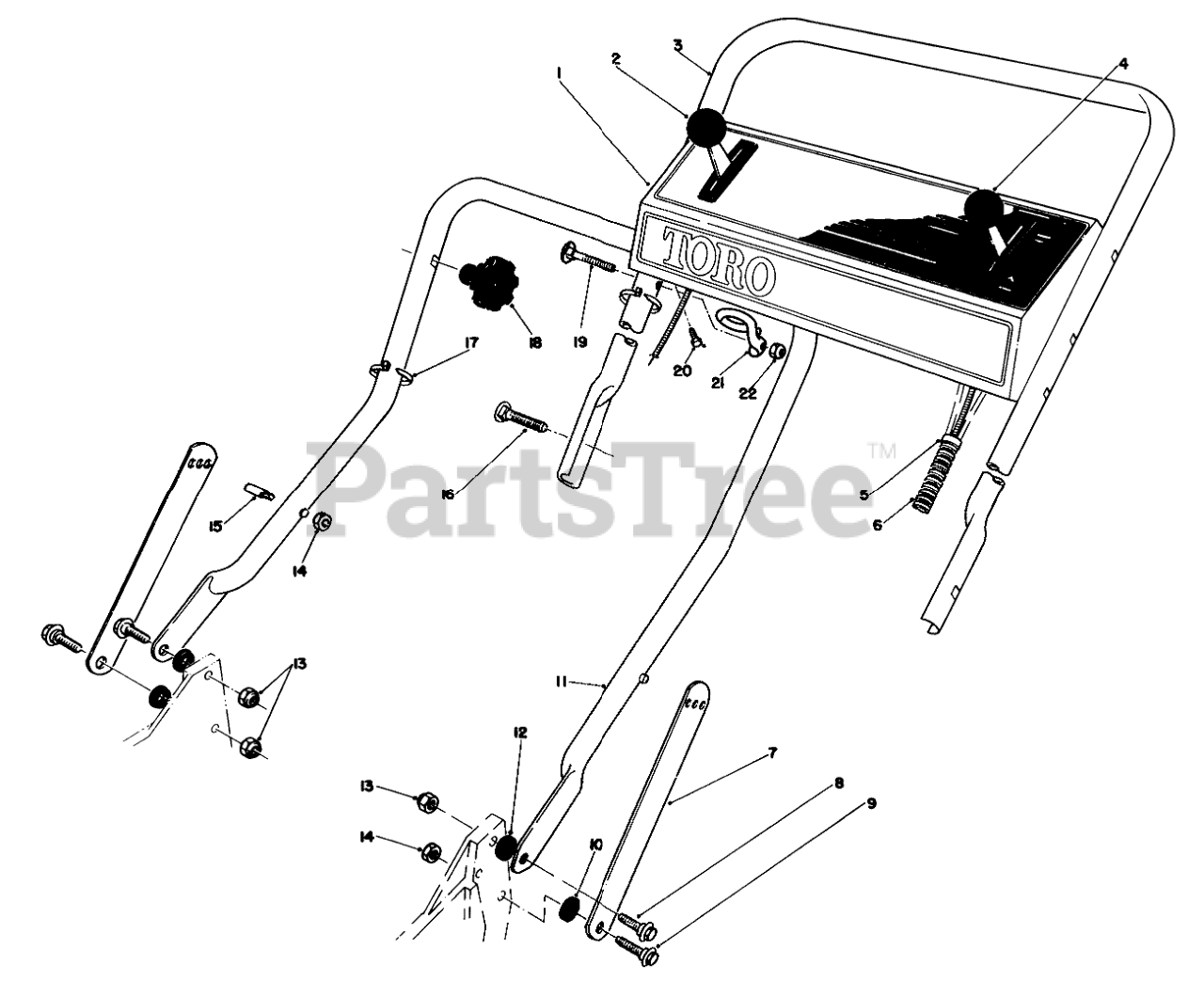

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 61-8660

Panel-Control
(Superseded to 70-7100)

$

$

Not available

2

Toro 46-5430

GROUND SPEED CONTROL

$96.99

$

Usually ships in 3-6 days

0

3

Toro 49-4234

UPPER HANDLE

$

$

Not available

4

Toro 46-6010

SERVICE THROTTLE CONTRO

$72.99

$

Usually ships in 3-6 days

0

5

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

6

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

7

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

8

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

9

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

11

Toro 43-1361

LOWER HANDLE ASM

$

$

Not available

12

Toro 55-8060

SPACER

$0.99

$

In Stock, only 4 left!

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

15

Toro 49-2750

HANDLE PIN

$36.99

$

Usually ships in 3-6 days

0

16

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 7

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

$17.99

$

In Stock, only 2 left!

0

19

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

20

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
