20690 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

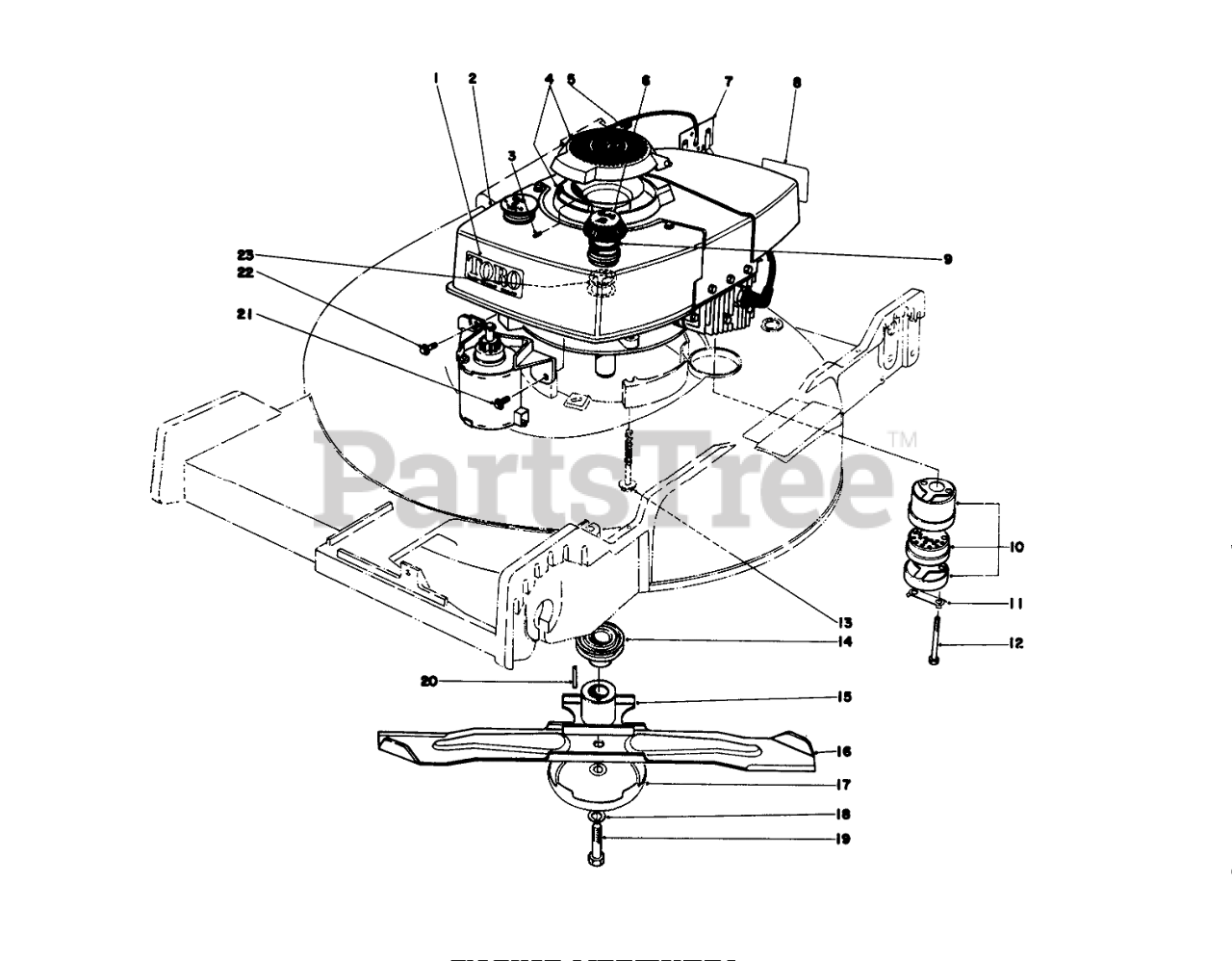

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 23-1260

High Torque

$

$

Not available

2

Toro 221-577

Engine

$

$

Currently unavailable

3

Toro 32121

90 Spring Pin

$

$

Currently unavailable

4

Toro 26-0850

Cover
(Superseded to 38-4720)

$

$

Not available

5

Toro 25-1570

WIRE CLIP

$

$

Not available

6

Toro 27-7870

Gas Cap Assembly (Incl. Ref. #9 & 23)
(Superseded to 42-0682)

$

$

Not available

7

Toro 24-9770

SWITCH & TERM BLK CVR

$

$

Not available

8

Toro 37-1580

Decal-Maintenan

$

$

Not available

9

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

10

Toro 5-4769

Muffler Assembly (Incl. Ref. #11 & 12)

$62.99

$

Usually ships in 3-6 days

0

Toro 36-3200

Muffler (Spark Arrestor-Optional)
(Superseded to 39-5930)

Note: Not illustrated

$

$

Not available

11

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

12

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

13

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

14

Toro 21-5580

DRIVER PULLEY

$

$

Not available

15

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

16

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

17

Toro 84240

Anti Scalp Cup

$

$

Currently unavailable

18

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

19

Toro 23-0080

BLADE SCREW

$

$

Not available

20

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

21

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

22

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

23

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available
