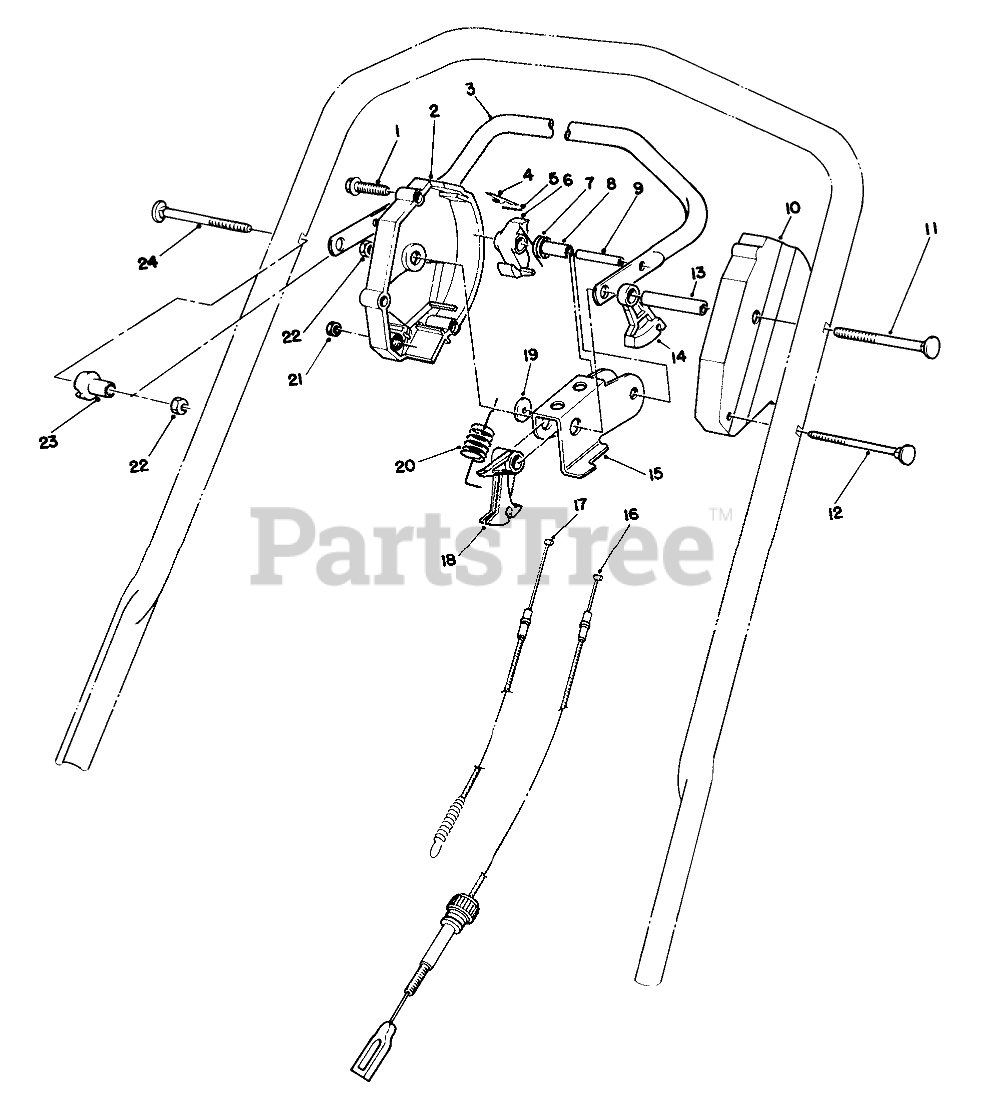

20684 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

2

Toro 46-5450

Housing Control R.H.
(Superseded to 12-3429)

$

$

Not available

3

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

4

Toro 52-7410

SPRING-LEAF

$

$

Not available

5

Toro 57-6290

PIN-INSERT

$3.49

$

Usually ships in 3-6 days

0

6

Toro 46-5530

HOOK-CONTROL

$

$

Not available

7

Toro 46-5510

SPRING-TORSION

$5.49

$

Usually ships in 3-6 days

0

8

Toro 46-5550

SPACER

$17.99

$

Usually ships in 3-6 days

0

9

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

10

Toro 46-5460

HOUSING-CONTROL, LH

$

$

Not available

11

Toro 17-9422

5/16-18 X 3 HNDLE SCREW

$

$

Not available

12

Toro 46-6431

HANDLE SCREW

$

$

Not available

13

Toro 46-5590

TUBING-SPACER

$17.99

$

Usually ships in 3-6 days

0

14

Toro 46-5520

LEVER-TRACTION

$

$

Not available

15

Toro 46-5490

Rocker
(Superseded to 62-3710)

$23.99

$

Usually ships in 3-6 days

0

16

Toro 46-5480

TRACTION CABLE

$87.99

$

Usually ships in 3-6 days

0

17

Toro 46-5470

Cable-Clutch
(Superseded to 83-6600)

$

$

Not available

18

Toro 46-5540

LEVER-CABLE

$17.99

$

In Stock, only 2 left!

0

19

Toro 46-5600

PLASTIC WASHER

$3.49

$

Usually ships in 3-6 days

0

20

Toro 49-8020

Spring-Detent
(Superseded to 65-5990)

$65.99

$

Usually ships in 3-6 days

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

22

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

23

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

24

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0
